StarTech.com 1U Server Rack Shelf - Universal Vented Rack Mount Cantilever Tray for 19" Network Equipment Rack & Cabinet - Heavy Duty Steel - Weight Capacity 44lb/20kg - 7" Deep Shelf (CABSHELF1U7V)
Key Features
- UNIVERSAL 19'' FIT: This 1U vented server rack mount shelf is designed to fit virtually any 19in server rack and can accommodate an internal depth of 7in (18cm) for your data, IT, networking, or other non-rack mount equipment
- MAXIMIZE VENTILIATION: The vented shelf plate on the cantilever rack shelf ensures consistent airflow to effectively dissipate heat on servers; it also works great to keep your computer and AV equipment cool in your home, studio, or office space
- HEAVY-DUTY & DURABLE DESIGN: Constructed with SPCC commercial cold-rolled steel, the sturdy front mounted cabinet shelf ensures long term durability and supports a total weight of 44lbs/20kg making it the perfect rack shelf solution for any environment
- VERSATILE FUNCTIONALITY: At 7in deep, this fixed rack mount shelf is designed to work with any 19in cabinet or equipment rack; it provides additional storage space for mission critical hardware, and can even store your tools or audio / video accessories
- INDUSTRY-LEADING SUPPORT: Backed for life by StarTech.com and free lifetime technical support on this TAA compliant 1U vented server rack mount shelf, and has been the choice of IT professionals and businesses for over 30 years
Description

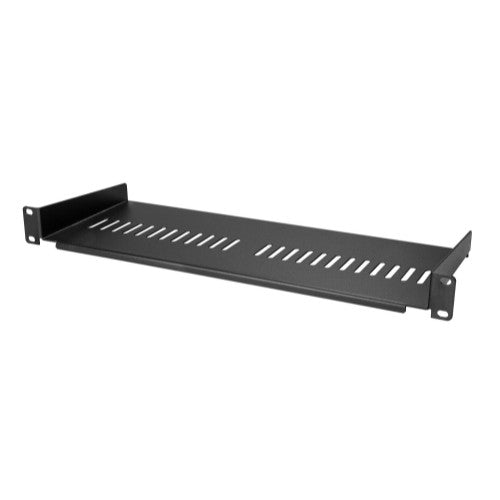

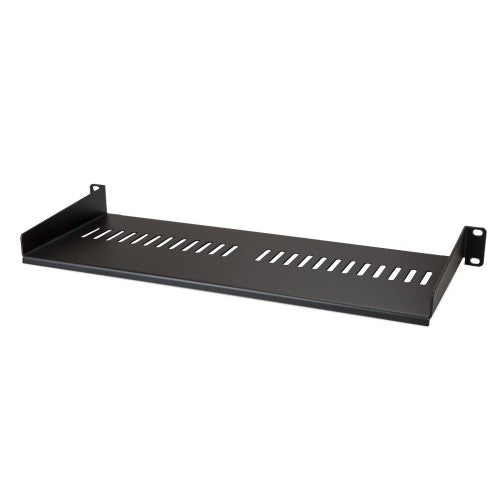

Add a sturdy, 1U server rack shelf into almost any rack or cabinet
This 1U rack shelf lets you add 7 in. (17.5 cm) of flat storage space to any EIA-310 compliant server rack or cabinet. The shelf is vented to improve air flow and help lower temperatures in your rack.
Ensure your equipment is secure
The durable fixed-rack shelf can hold up to 44 lb. (20 kg) of equipment and is constructed using SPCC commercial-grade cold-rolled steel.
Make the most of your available space
The 1U cantilever shelf lets you optimize your working space by giving you the ability to mount equipment to your rack instead of taking up desk or floor space. It’s perfect for your SOHO (small office, home office) environment, server room or any other location with limited space available.
Customize your setup
You can install the 1U vented rack shelf in your rack at any height, giving you a stable surface for placing equipment that's un-mountable or storing your tools.
The CABSHELF1U7V is backed by a StarTech.com lifetime warranty and free lifetime technical support.
The StarTech.com Advantage
Specifications
| Features |
|---|
| Certification |
REACH |
| Type |
Rack shelf |
| Rack capacity |
1U |
| Maximum weight capacity |
44.1 lbs (20 kg) |
| Product colour |
Black |
| Compliance industry standards |
EIA/ECA-310-E |
| Harmonized System (HS) code |
85389099 |
| Housing material |
Steel |
| Weight & dimensions |
|---|
| Package width |
8.27" (210 mm) |
| Package height |
2.24" (57 mm) |
| Package depth |
19.7" (500 mm) |
| Package weight |
3.86 lbs (1.75 kg) |
| Width |
17.3" (440 mm) |
| Weight |
3.09 lbs (1.4 kg) |
| Height |
1.73" (44 mm) |
| Depth |
6.89" (175 mm) |
| Maximum weight capacity |
44.1 lbs (20 kg) |
| Packaging data |
|---|
| Package width |
8.27" (210 mm) |
| Package height |
2.24" (57 mm) |
| Package depth |
19.7" (500 mm) |
| Package weight |
3.86 lbs (1.75 kg) |
| Quantity per pack |
1 pc(s) |
| Packaging content |
|---|
| Screws included |
Yes |
| Nuts included |
Yes |
| Number of screws |
4 |
| Number of nuts |
4 |
| Technical details |
|---|
| Type |
Rack shelf |
| Rack capacity |
1U |
| Compliance certificates |
RoHS |
| Colour |
|---|
| Product colour |
Black |
| Logistics data |
|---|
| Master (outer) case width |
13.1" (333 mm) |
| Master (outer) case length |
20.6" (524 mm) |
| Master (outer) case height |
8.7" (221 mm) |
| Products per master (outer) case |
5 pc(s) |
| Harmonized System (HS) code |
85389099 |
