StarTech.com Full Motion TV Wall Mount - 32-55 inch (77lb/35kg) VESA Displays - Low Profile Universal Flat Screen TV Wall Mount - Heavy Duty Adjustable Tilt/Swivel Articulating Arm Bracket (FPWARTB1M)
Key Features
- 55" TV WALL MOUNT: This heavy-duty TV wall mount supports VESA compatible displays incl. curved TVs up to 55 inch (77 lb/35 kg) w/ a durable full-motion steel frame and a powder-coated finish
- WIDE RANGE OF MOTION: Articulating & adjustable TV wall mount offers +/-90° swivel, +2/-12° tilting & +/-5° LCD screen level adjustment without the use of additional tools to ensure display is level
- EXTENDABLE ARM: Arm can extend from 1.9" (49mm) to 19.8" (503mm) from the wall; With the length of the arm, center of the display has an overall lateral range (left to right) of 39.6" (1006mm)
- COMPATIBILITY: Universal television wall mount supports LG, Samsung, & others (screws/spacers incl) & VESA hole patterns 100x100, 100x200, 100x150, 200x100, 200x200, 200x300, 200x400, 300x200, 300x300, 400x200, 400x300, 400x400
- TIDY AESTHETIC: The low profile tv wall mounting bracket w/ integrated cable management & optional black snap-on covers keeps flat screen cables organized; ideal for customer-facing digital signage
Description
Display Wall Mount | Steel | For 32" to 55" Displays

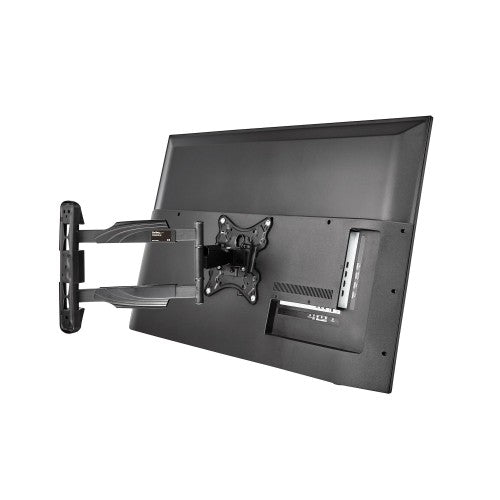

Maximize space while creating an impressive display. This full-motion TV wall mount, made of heavy-duty steel, securely supports flat-screen TVs from 32" to 55". The arm extends easily to provide smooth, full-motion positioning for ideal viewing.
Mount Your Monitor to Save Valuable Space
Mount your flat-screen TV in a location that's convenient for visitors, clients and employees. This TV wall mount is ideal for the lobby, boardroom or other venues, providing an impressive and secure way to display a flat-panel TV or mount digital signage. It also frees up valuable space. The TV wall mount supports most 32" to 55" (558.8 to 1397 mm) LED or LCD flat panel TVs weighing up to 77 lb. (35 kg).
Full-Motion Adjustment

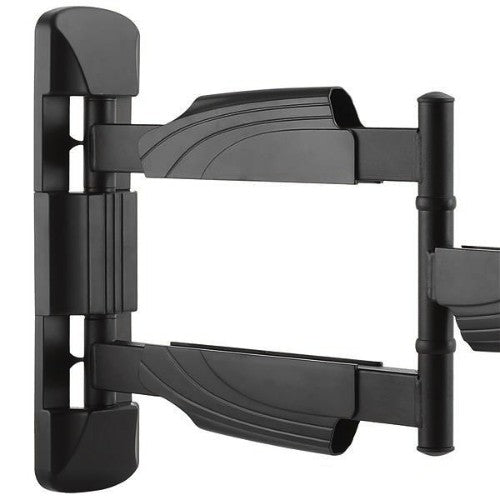

The TV wall mount provides full-motion adjustment capability. The arm extends up to 19.8" (503 mm) from the wall to provide a wide range of movement and accommodate different screen positions and angles. The arm can also fold to tuck-in closely to the wall, providing a minimized profile, which enables you to position your display just 1.9" (49 mm) from the wall.

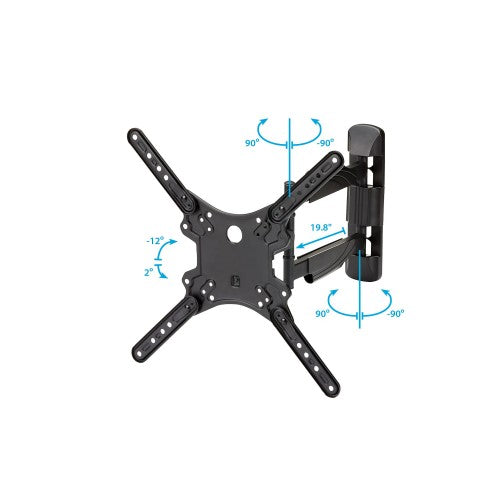

The TV wall mount swivels +90 / -90 degrees to provide maximum viewing flexibility. The mount also tilts +2 / -12 degrees, letting you angle your TV display toward your audience. With the tilt feature, you can mount your TV lower or higher than eye level and still view it comfortably.
Heavy-Duty Construction
The robust steel design safely and securely supports your flat-screen TV, to protect your investment. The TV wall mount also includes plastic brackets for cable management to keep cables neatly out of sight.
The FPWARTB1M is backed by a StarTech.com 5-year warranty and free lifetime technical support.
The StarTech.com Advantage
- 55" TV WALL MOUNT: This heavy-duty TV wall mount supports VESA compatible displays incl. curved TVs up to 55 inch (77 lb/35 kg) w/ a durable full-motion steel frame and a powder-coated finish
- WIDE RANGE OF MOTION: Articulating & adjustable TV wall mount offers +/-90° swivel, +2/-12° tilting & +/-5° LCD screen level adjustment without the use of additional tools to ensure display is level
- EXTENDABLE ARM: Arm can extend from 1.9" (49mm) to 19.8" (503mm) from the wall; With the length of the arm, center of the display has an overall lateral range (left to right) of 39.6" (1006mm)
Specifications
| Mounting |
|---|
| Mounting type |
Wall |
| Minimum screen size |
22" |
| Panel mounting interface |
100 x 100,100 x 150,100 x 200,200 x 100,200 x 200,200 x 300,200 x 400,300 x 200,300 x 300,400 x 200,400 x 400,400 x 300 |
| Number of displays supported |
1 |
| Minimum VESA mount |
3.94 x 3.94" (100 x 100 mm) |
| Maximum VESA mount |
15.7 x 15.7" (400 x 400 mm) |
| Maximum screen size |
55" |
| Maximum weight capacity |
77.2 lbs (35 kg) |
| Ergonomics |
|---|
| Built-in spirit level |
Yes |
| Cable management |
Yes |
| Tilt angle range |
-12 - 2° |
| Swivel angle range |
-90 - 90° |
| Distance to the wall (min) |
1.93" (4.9 cm) |
| Distance to the wall (max) |
19.8" (50.3 cm) |
| Technical details |
|---|
| Cable management |
Yes |
| Number of displays supported |
1 |
| Distance to the wall (min) |
1.93" (4.9 cm) |
| Distance to the wall (max) |
19.8" (50.3 cm) |
| Product colour |
Black |
| Mounting type |
Wall |
| Compliance certificates |
RoHS |
| Design |
|---|
| Cable management |
Yes |
| Product colour |
Black |
| Anti-theft function |
No |
| Housing material |
Steel |

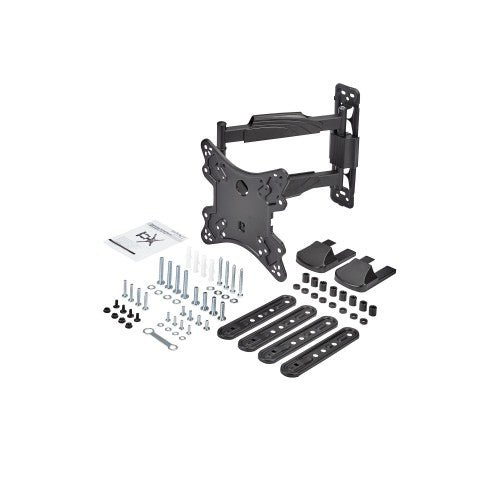

| Packaging content |
|---|
| Screws included |
Yes |
| Adapter bracket included |
Yes |
| Number of adapter brackets included |
4 |
| Washers included |
Yes |
| Number of washers included |
12 |
| Spacer included |
Yes |
| Number of spacers included |
16 |
| Number of screws |
32 |
| Wrench included |
Yes |
| Mounting kit |
Yes |
| Manual |
Yes |
| Weight & dimensions |
|---|
| Width |
15.7" (400 mm) |
| Depth |
24.2" (614 mm) |
| Height |
15.7" (400 mm) |
| Weight |
6.17 lbs (2.8 kg) |
| Depth (max) |
24.2" (61.4 cm) |
| Packaging data |
|---|
| Package width |
12.7" (323 mm) |
| Package depth |
15.6" (395 mm) |
| Package height |
1.97" (50 mm) |
| Package weight |
7.72 lbs (3.5 kg) |
| Mounting kit |
Yes |
| Manual |
Yes |
| Logistics data |
|---|
| Master (outer) case width |
13.7" (348 mm) |
| Master (outer) case length |
16.5" (420 mm) |
| Master (outer) case height |
12.2" (311 mm) |
| Products per master (outer) case |
6 pc(s) |
| Harmonized System (HS) code |
85299097 |
| Other features |
|---|
| Mounting type |
Wall |
