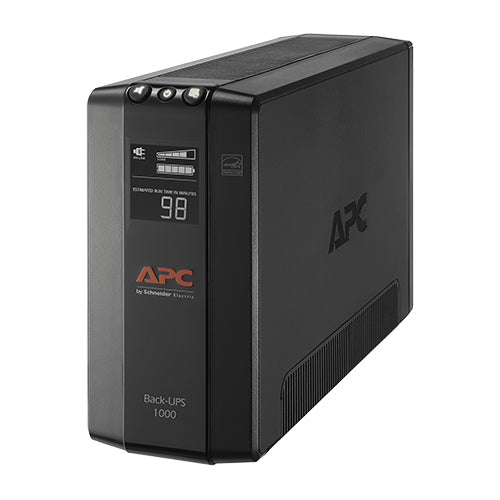

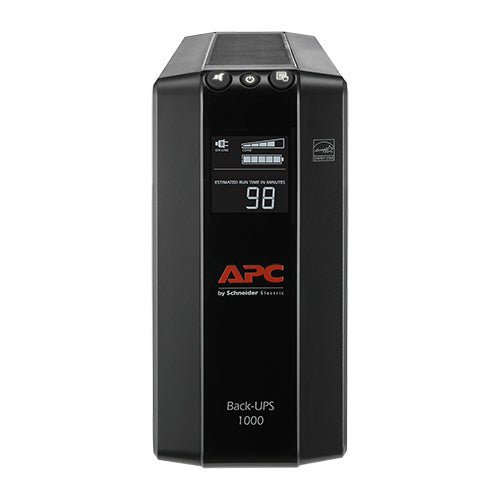

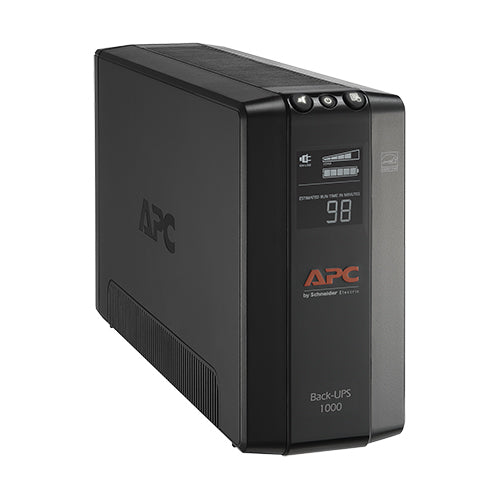

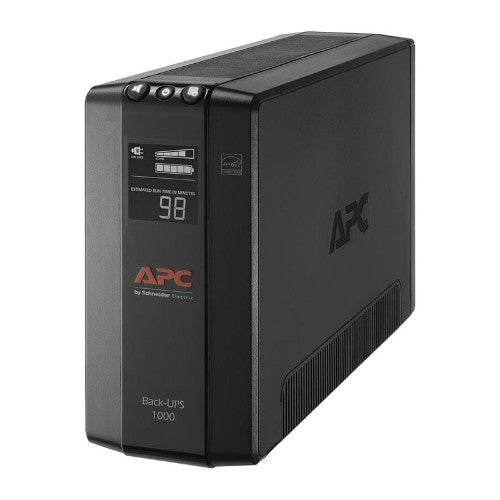

APC BX1000M uninterruptible power supply (UPS) Line-Interactive 1 kVA 600 W 8 AC outlet(s)

1000 VA, 600 W, 120 V, 4 x NEMA 5-15R(Battery Backup), 4 x NEMA 5-15R(selector_surgetitle), 88 - 139 V, 50/60 Hz, 1103 J, 1.83 m, Black

Description

Audible alarms
Provides notification of changing utility power and UPS power conditions

Automatic self-test
Periodic battery self-test ensures early detection of a battery that needs to be replaced.

Battery failure notification
Provides early-warning fault analysis on batteries enabling timely preventive maintenance

Battery replacement without tools
Enables fast battery replacement, lowering Mean Time to Repair (MTTR).

Boost Automatic Voltage Regulation (AVR)
Preserves battery life and maximizes runtime by correcting low voltages without discharging the battery.

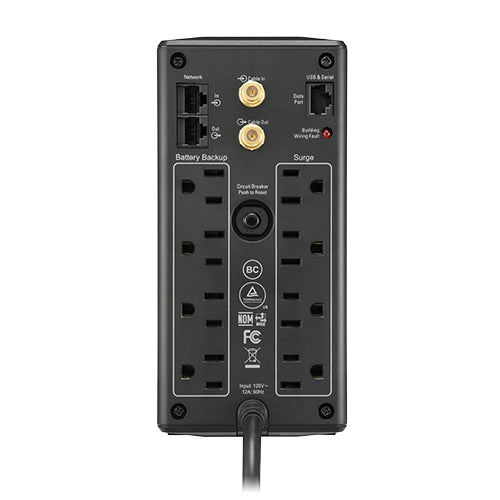

Building Wiring Fault Indicator
This LED informs users of potentially dangerous wiring problems in the wall circuit.

Cold-start capable
Provides temporary battery power when the utility power is out.

Dataline surge protection
Provides protection of connected equipment from power surges on the data lines.

Disconnected battery notification
Warns when a battery is not available to provide backup power.

Hot-swappable batteries
Ensures clean, uninterrupted power to protected equipment while batteries are being replaced

Intelligent battery management
Maximizes battery performance, life, and reliability through intelligent, precision charging.

LCD graphics display
Text and mimic diagrams that display modes of operation, system parameters and alarms.

Lifetime data recovery warranty
Provides peace of mind by providing professional data recovery services in the event data is lost due to the failure of the unit.

Resettable circuit breaker
Easy recovery from overloads; no need to replace a fuse.

Safety-agency approved
Ensures the product has been tested and approved to work safely with the connected service provider equipment and within the specified environment.

Transformer Block Spacing
Connect bulky transformer block plugs without covering up other outlets.

USB connectivity
Provides management of the UPS via a USB port (not available on all models).

User-replaceable batteries
Increases availability by allowing a trained user to perform upgrades and replacements of the batteries reducing Mean Time to Repair (MTTR)

Specifications

Power
Output frequency regulation	60 Hz
Output power	600 W
Input operation voltage (min)	88 V
Input operation voltage (max)	139 V
Output operation voltage (max)	120 V
Surge energy rating	1103 J
Maximum current	12 A
Output power capacity	1 kVA
Input frequency	60 Hz
Ports & interfaces
Cable length	72" (1.83 m)
Serial interface	Yes
Serial interface type	RJ-45
Cabling technology	10/100/1000Base-T(X)
AC outlets quantity	8 AC outlet(s)
AC outlet types	NEMA 5–15R
Ethernet LAN (RJ-45) ports	1
Performance
UPS topology	Line-Interactive
Waveform	Sine
Features
UPS topology	Line-Interactive
Waveform	Sine
Output frequency regulation	60 Hz
Output power	600 W
Input operation voltage (min)	88 V
Input operation voltage (max)	139 V
Output operation voltage (max)	120 V
Surge energy rating	1103 J
Maximum current	12 A
Output power capacity	1 kVA
Input frequency	60 Hz
Battery
Battery life (max)	5 year(s)
Battery technology	Sealed Lead Acid (VRLA)
Battery recharge time	12 h
Design
Form factor	Tower
Product colour	Black
Certification	California (CEC) Battery Charger, FCC Part 15 Class B, UL 1778
Cable length	72" (1.83 m)
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-15 - 45 °C
Operating relative humidity (H-H)	0 - 95%
Storage relative humidity (H-H)	0 - 95%
Technical details
Sustainability certificates	ENERGY STAR
Compliance certificates	RoHS
Certificates
Certification	California (CEC) Battery Charger, FCC Part 15 Class B, UL 1778
Compliance certificates	RoHS
Sustainability
Sustainability certificates	ENERGY STAR
Weight & dimensions
Package width	5.59" (142 mm)
Package depth	17.4" (442 mm)
Package height	9.96" (253 mm)
Weight	15.9 lbs (7.2 kg)
Width	3.58" (91 mm)
Package weight	17.6 lbs (8 kg)
Height	7.48" (190 mm)
Depth	12.2" (310 mm)
Packaging data
Package width	5.59" (142 mm)
Package depth	17.4" (442 mm)
Package height	9.96" (253 mm)
Package weight	17.6 lbs (8 kg)
