Description
Description

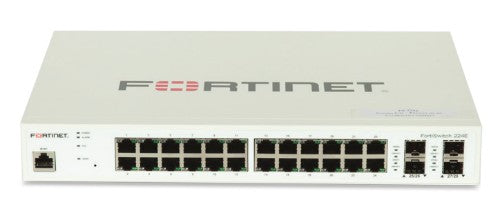

FortiSwitch Secure Access switches deliver a Secure, Simple, Scalable Ethernet solution with outstanding security, performance and manageability for threat conscious small to mid-sized businesses, distributed enterprises and branch offices. Tightly integrated into the FortiGate ® Network Security Platform, the FortiSwitch Secure Access switches can be managed directly fromthe familiar FortiGate interface. This single pane of glass management provides complete visibility and control of all users and devices on the network, regardless of how they connect.
Specifications
| Management features | |
|---|---|
| Multicast support | Yes |
| Switch type | Managed |
| Switch layer | L2 |
| Ports & interfaces | |
| Copper ethernet cabling technology | 10BASE-T, 100BASE-TX, 1000BASE-T |
| SFP module slots quantity | 4 |
| Basic switching RJ-45 Ethernet ports quantity | 24 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Gigabit Ethernet (copper) ports quantity | 24 |
| Console port | RJ-45 |
| Network | |
| IGMP snooping | Yes |
| Copper ethernet cabling technology | 10BASE-T, 100BASE-TX, 1000BASE-T |
| Networking standards | IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| Full duplex | Yes |
| VLAN support | Yes |
| Spanning tree protocol | Yes |
| Port mirroring | Yes |
| Number of VLANs | 4096 |
| Link aggregation | Yes |
| Flow control support | Yes |
| Broadcast storm control | Yes |
| Auto MDI/MDI-X | Yes |
| 10G support | No |
| Virtual LAN features | Tagged VLAN |
| Virtual LAN features | |
| VLAN support | Yes |
| Number of VLANs | 4096 |
| Virtual LAN features | Tagged VLAN |
| Data transmission | |
| Number of VLANs | 4096 |
| Latency (1 Gbps) | 1 µs |
| Packet buffer memory | 1.5 MB |
| MAC address table | 16000 entries |
| Switching capacity | 56 Gbit/s |
| Store-and-forward | Yes |
| Jumbo frames support | Yes |
| Forwarding rate | 83 Mpps |
| Performance | |
| Packet buffer memory | 1.5 MB |
| Internal memory | 512 MB |
| Flash memory | 128 MB |
| Technical details | |
| Form factor | 1U |
| Product colour | White |
| Rack mounting | Yes |
| Security | |
| BPDU filtering/protection | Yes |
| Authentication | Guest VLAN, MAC-based authentication, Port-based authentication |
| IGMP snooping | Yes |
| DHCP features | DHCP server, DHCP snooping, DHCPv6 snooping |
| Multicast features | |
| Multicast support | Yes |
| Protocols | |
| Management protocols | HTTP / HTTPS, SNMP v1/v2c/v3, Telnet / SSH |
| Certificates | |
| Certification | , CE, RCM, VCCI, BSMI, UL, CB, RoHS2 |
| Memory | |
| Packet buffer memory | 1.5 MB |
| Internal memory | 512 MB |
| Flash memory | 128 MB |
| Design | |
| Form factor | 1U |
| Product colour | White |
| LED indicators | Yes |
| Certification | , CE, RCM, VCCI, BSMI, UL, CB, RoHS2 |
| Rack mounting | Yes |
| Indication | |
| LED indicators | Yes |
| Power | |
| Power consumption (max) | 397 W |
| Power supply included | Yes |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Power consumption (typical) | 380 W |
| Redundant power supply (RPS) support | No |
| Number of power supply units | 1 |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) | No |
| Operational conditions | |
| Storage temperature (T-T) | -20 - 70 °C |
| Operating temperature (T-T) | 0 - 50 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Heat dissipation | 85 BTU/h |
| Weight & dimensions | |
| Width | 17.3" (440 mm) |
| Depth | 12.2" (310 mm) |
| Height | 1.73" (44 mm) |
| Weight | 10.6 lbs (4.83 kg) |
