1 user, 8 ports, 1920 x 1080, 60Hz, DVI, LCD, 17"
Description

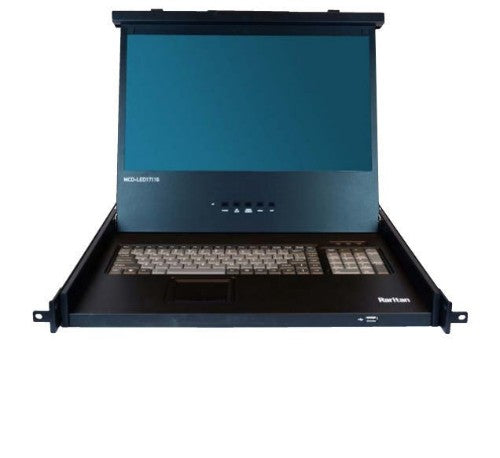

Raritan’s MasterConsole® Digital with integrated 17” LED Console Drawer (MCD-LED) is a digital KVM switch and console drawer combination for small to midsized businesses. This advanced combination brings you KVM ports for 8 and 16 servers and can be cascaded 2 levels to support up to 512 connections at distances up to 100 feet (30 meters). The flexible video interface supports both Analog — VGA and Digital — DVI, HDMI and DisplayPort with a maximum HD video resolution up to 1920x1080. The MCD-LED with its convenient space saving design simply connects to multiple computers with the use of standard Category 5/6/6e cables. MCD-LED provides at-the-rack access with a friendly user interface and convenient hotkeys to quickly access connected computers. It is ideal for performing system maintenance, administration, running applications, and troubleshooting.
Space Saving DesignThe 1U modular design takes up to 85% less space than a full sized keyboard, monitor, and mouse.
Scalability and CascadingControl 8 or 16 servers directly from the MCD-LED switch, or access up to 512 servers by cascading with Raritan’s MCD-232 Cat5 KVM switches.
Simple InstallationPlug-and-play installation, auto-configuration, and easy-to-use onscreen displays allow for easily install of the MCD-LED at the rack.
High Resolution LCD DisplaySupports 1920x1080 video resolution at 150 feet.
Specifications
| Technical details |
|---|
| Product colour |
Black |
| Rack mounting |
Yes |
| Number of users |
1 user(s) |
| Video |
|---|
| HD type |
Full HD |
| Video bandwidth |
60 Hz |
| Maximum resolution |
1920 x 1080 pixels |
| Ports & interfaces |
|---|
| Console ports |
DVI-D |
| Number of computers controlled |
8 |
| Video port type |
DVI-D |
| Performance |
|---|
| HD type |
Full HD |
| Video bandwidth |
60 Hz |
| Maximum resolution |
1920 x 1080 pixels |
| Number of users |
1 user(s) |
| Number of displays supported |
1 |
| Design |
|---|
| Product colour |
Black |
| Rack mounting |
Yes |
| Rack capacity |
1U |
| Display |
|---|
| Built-in display |
Yes |
| Display |
LCD |
| Display diagonal |
17" |
| Power |
|---|
| Input current |
1.5 A |
| Output current |
5.42 A |
| Output voltage |
12 V |
| Power source |
AC |
| Power consumption (typical) |
65 W |
| Weight & dimensions |
|---|
| Width |
18.9" (481 mm) |
| Depth |
22.5" (571 mm) |
| Height |
1.73" (43.9 mm) |
| Weight |
24.7 lbs (11.2 kg) |
| Logistics data |
|---|
| Harmonized System (HS) code |
85176200 |
