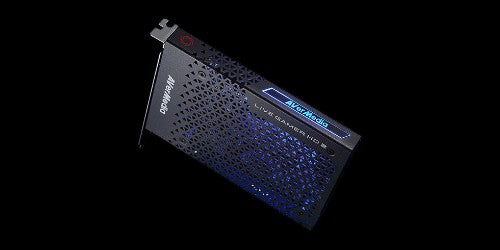

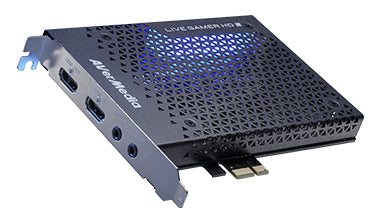

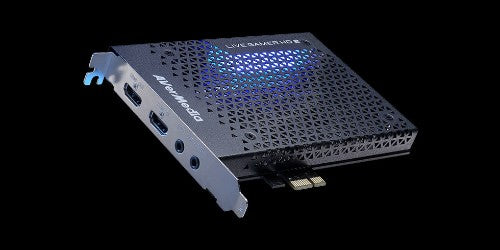

AVerMedia Live Gamer HD 2 video capturing device Internal PCIe

PCI Express x1 Gen 2, HDMI, 3.5mm, 1080p60, 125 x 151 x 21.5 mm

Description

The second installment of Live Gamer HD has arrived! Packed with more power and style, Live Gamer HD 2 (LGHD2) is a plug-and-play PCIe-capturing beast that records and streams smooth, uncompressed, zero-lag gameplay in 1080p 60 fps.

1080p60 Uncompressed Video
LGHD2 is built for speed and quality. By capturing uncompressed videos, LGHD2 simplifies your PC operations and delivers smoother and sharper 1080p60 streaming.

Ready to Play: No Driver Needed
Tired of installing drivers? Don’t you worry. LGHD2 doesn’t require driver installation. Insert it into a PCIe slot and it’s ready to roll.

Flexible Audio Connection
Having more audio options is always a plus when it comes to capturing. Connect digitally via HDMI or analog via 3.5 mm ports, you can record audio from consoles, PCs, or even output to mixers for audio mixing—the flexibility is yours.

Compressed Video Output
Besides uncompressed videos, LGHD2 also delivers compressed videos that require less transmission bandwidth, so you can use multiple LGHD2s to capture different sources at the same time.

Get to Know the Design

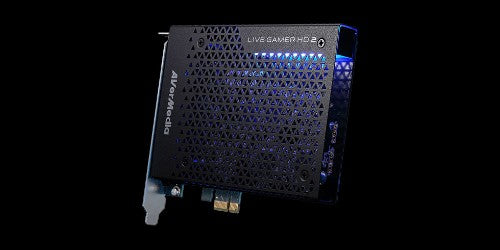

If there’s a geometric shape that can represent gamers, it would be a triangle—a combination of vitality (a circle) and stability (a square) which outlines gamers’ charactistics. And based on this key element, we created a triangle metal mesh. Aside from its premium built quality and stylish design, it also provides excellent protection, ventilation, and allows the LED lighting to shine through.

Packaging

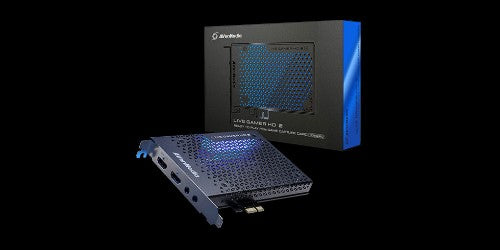

The same design is beautifully presented on LGHD2’s packaging. Engraved and cut by high precision laser, the triangle mesh looks just as astonishing on paper sleeve as on metal sheet. The design of the inner box is also carefully thought through. Its pattern and silvery blue finishing mimics the LED lighting as you slowly pull it out of the sleeve. It's a one-of-a-kind unboxing experience.

Powerful Streaming & Recording Software—RECentral 3
The stylish and robust RECentral can get you started and stream like a pro in no time on Twitch, YouTube, Facebook and more. RECentral 3 also provides Stream Engine plug-in to optimize performance when using 3rd party software like OBS and XSplit.

Specifications

Performance
Internal	Yes
Host interface	PCIe
Interface	PCI Express x1 2.0
Video capture resolution (max)	1920 x 1080 pixels
Capturing from	PC
Technical details
Internal	Yes
Host interface	PCIe
Interface	PCI Express x1 2.0
Video capture resolution (max)	1920 x 1080 pixels
Capturing from	PC
Harmonized System (HS) code	85176990
Video
Supported video modes	1080p
Ports & interfaces
HDMI in	1
Number of HDMI outputs	1
Headphone outputs	1
Software
Windows operating systems supported	Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 Pro, Windows 10 Pro x64, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64
Bundled software	RECentral 3
System requirements
Minimum system requirements	Intel Core i5-3330, 4 GB RAM, NVIDIA GeForce GTX 650 / AMD Radeon R7 250X
Minimum RAM	4000 MB
Minimum processor	Intel Core i5-3330
Weight & dimensions
Width	4.92" (125 mm)
Depth	5.94" (151 mm)
Height	0.846" (21.5 mm)
Weight	5.11 oz (145 g)
Packaging data
Package type	Box
Packaging content
Quick installation guide	Yes
Quantity	1
Cables included	Audio (3.5mm), HDMI
Logistics data
Harmonized System (HS) code	85176990
