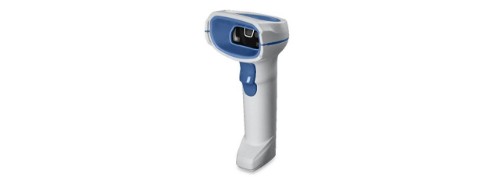

Zebra DS8178-HC, Handheld bar code reader, 1D/2D, LED, Codabar, Code 11, Code 128, Code 39, Code 93, GS1 DataBar Expanded, Interleaved 2 of 5, MSI,..., Aztec Code, Composite Codes, Data Matrix, Han Xin, MaxiCode, Micro QR Code, MicroPDF417, PDF417,..., 528 nm
Description
Zebra DS8178-HC. Type: Handheld bar code reader, Scanner type: 1D/2D, Sensor type: LED. Connectivity technology: Wired & Wireless, Standard interfaces: RS-232, USB, Keyboard wedge, Wireless range: 3937" (100 m). Product color: White, International Protection (IP) code: IP42. Power source type: Battery, Battery technology: Lithium-Ion (Li-Ion), Battery type: Built-in battery. Weight: 8.29 oz (235 g), Width: 2.6" (66 mm), Depth: 4.21" (107 mm)
Specifications
| Scanning |
|---|
| Type |
Handheld bar code reader |
| 2D (matrix & stacked) barcodes supported |
Aztec Code, Composite Codes, Data Matrix, Han Xin, MaxiCode, Micro QR Code, MicroPDF417, PDF417, QR Code, TLC-39 |
| Linear (1D) barcodes supported |
Codabar, Code 11, Code 128, Code 39, Code 93, GS1 DataBar Expanded, Interleaved 2 of 5, MSI, Plessey, U.P.C. |
| Yaw reading angle |
0 - 60° |
| Wavelength |
528 nm |
| Tilt reading angle |
0 - 360° |
| Sensor type |
LED |
| Scanner type |
1D/2D |
| Pitch reading angle |
0 - 60° |
| Ports & interfaces |
|---|
| PC connection |
RS-232/USB |
| Connectivity technology |
Wired & Wireless |
| Wireless range |
3937" (100 m) |
| Bluetooth version |
4.0 |
| Bluetooth Low Energy (BLE) |
Yes |
| Standard interfaces |
RS-232, USB, Keyboard wedge |
| Performance |
|---|
| International Protection (IP) code |
IP42 |
| Product colour |
White |
| Design |
|---|
| Type |
Handheld bar code reader |
| International Protection (IP) code |
IP42 |
| Product colour |
White |
| Power |
|---|
| Power source type |
Battery |
| Number of batteries supported |
1 |
| Battery life |
83 h |
| Number of reads per charge |
65000 |
| Input voltage |
5 V |
| Battery type |
Built-in battery |
| Battery technology |
Lithium-Ion (Li-Ion) |
| Battery capacity |
2500 mAh |
| Weight & dimensions |
|---|
| Width |
2.6" (66 mm) |
| Depth |
4.21" (107 mm) |
| Height |
6.61" (168 mm) |
| Weight |
8.29 oz (235 g) |
| Technical details |
|---|
| Type |
Handheld bar code reader |
| International Protection (IP) code |
IP42 |
| Product colour |
White |
| PC connection |
RS-232/USB |
| Harmonized System (HS) code |
84716070 |
| Operational conditions |
|---|
| Storage temperature (T-T) |
-40 - 70 °C |
| Operating temperature (T-T) |
0 - 50 °C |
| Operating relative humidity (H-H) |
5 - 95% |
| Logistics data |
|---|
| Harmonized System (HS) code |
84716070 |
