5V/2A, USB 2.0, WPS Button, IEEE 802.11ac/n/a 5GHz IEEE 802.11b/g/n 2.4GHz, 2.4GHz and 5GHz
Key Features
- Transforms any internet connection into a private AC750 dual-band Wi-Fi network*
- Incredibly compact router fits easily in your pocket, purse or bag, perfect for traveling
- Works with 2.4 GHz and 5 GHz devices, including Chromecast and Amazon Fire TV Stick
- USB port lets you share files or conveniently charge any device with up to 5V/1A of power
- Flexible powering options let you connect to an external adapter or USB port
Description

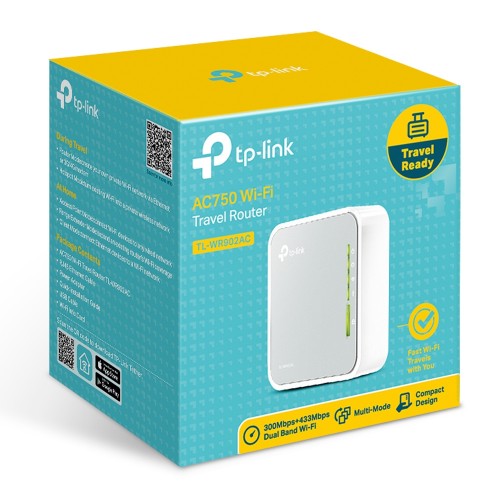

Portable and compactThe incredibly compact TL-WR902AC is the world’s first AC750 travel router. Take it with you to create a personal Wi-Fi spot anywhere internet is available. It fits easily in your pocket, purse or bag and is perfect for use while traveling. Watch movies over private dual-band Wi-Fi at a hotel.
Dual-Band AC for Fast Wi-Fi SpeedsThe travel router creates fast AC750 Wi-Fi over dual 2.4 GHz (300 Mbps) and 5 GHz (433 Mbps) bands. Dual bands allow for more devices to be connected to your personal network and provide reliable Wi-Fi access so you can enjoy what you love without interruptions.
Multiple Wi-Fi Modes for Any SituationWhether you need a private Wi-Fi network while away or something to boost your Wi-Fi at home, the TL-WR902AC has a mode for you.
Multifunctional USB Port for File Sharing and ChargingA The travel router comes with a built-in USB 2.0 sharing port. Connect a USB storage drive to share access to files, download movies and back up recent photos. Connect your smartphone cable and the router doubles as a 5V/1A charging station for one device.
Specifications
| Ethernet LAN features |
|---|
| Ethernet WAN |
Yes |
| Ethernet LAN interface type |
Fast Ethernet |
| Ethernet LAN |
Yes |
| Ethernet LAN data rates |
10,100 Mbit/s |
| Cabling technology |
10/100Base-T(X) |
| DSL features |
|---|
| DSL WAN |
No |
| Mobile network |
|---|
| SIM card slot |
No |
| 3G/4G USB modem compatibility |
Yes |
| Mobile network generation |
4G |
| Network |
|---|
| Guest access |
Yes |
| Ethernet LAN interface type |
Fast Ethernet |
| Ethernet LAN |
Yes |
| VPN support |
PPTP, L2TP, IPSec |
| Receiver sensitivity |
11a 54M: -76dBm; 11ac VHT20 MCS8: -70dBm;
11ac VHT40 MCS9: -65.5dBm; 11ac VHT80 MCS9:
-61.5dBm
2.4GHz:
11g 54M: -76dBm11n; HT20 MCS7: -74dBm;
11n HT40 MCS7: -71dBm |
| Port forwarding |
Yes |
| Networking standards |
IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3, IEEE 802.3u |
| Ethernet LAN data rates |
10,100 Mbit/s |
| Cabling technology |
10/100Base-T(X) |
| Port triggering |
Yes |
| Number of guest networks (5 GHz) |
1 |
| Number of guest networks (2.4 GHz) |
1 |
| Built-in FTP server |
Yes |
| Media server |
Yes |
| VPN Passthrough |
Yes |
| Dynamic DNS (DDNS) |
Yes |
| Protocols |
|---|
| DMZ support |
Yes |
| Universal Plug and Play (UPnP) |
Yes |
| Supported network protocols |
IPv4, IPv6 |
| DHCP server |
Yes |
| DHCP client |
Yes |
| Management features |
|---|
| Universal Plug and Play (UPnP) |
Yes |
| WPS push button |
Yes |
| Reset button |
Yes |
| Quality of Service (QoS) support |
Yes |
| Security |
|---|
| VPN support |
PPTP, L2TP, IPSec |
| URL filtering |
Yes |
| Security algorithms |
WEP, WPA, WPA2 |
| IP address filtering |
Yes |
| Guest access |
Yes |
| Firewall security |
SPI |
| Firewall |
Yes |
| DoS attack prevention |
Yes |
| DMZ support |
Yes |
| Filtering |
Yes |
| Stateful Packet Inspection (SPI) |
Yes |
| Performance |
|---|
| Windows operating systems supported |
Yes |
| Processor cores |
1 |
| Mac operating systems supported |
Yes |
| Linux operating systems supported |
Yes |
| Built-in processor |
Yes |
| Weight & dimensions |
|---|
| Package width |
4.33" (110 mm) |
| Package weight |
10.6 oz (300 g) |
| Package height |
3.21" (81.5 mm) |
| Package depth |
4.29" (109 mm) |
| Width |
2.91" (74 mm) |
| Weight |
2 oz (56.7 g) |
| Height |
0.866" (22 mm) |
| Depth |
2.64" (67 mm) |
| WAN connection |
|---|
| Ethernet WAN |
Yes |
| DSL WAN |
No |
| SIM card slot |
No |
| 3G/4G USB modem compatibility |
Yes |
| WAN connection type |
RJ-45 |
| Wireless LAN features |
|---|
| Top Wi-Fi standard |
Wi-Fi 5 (802.11ac) |
| WLAN data transfer rate (max) |
433 Mbit/s |
| Wi-Fi band |
Dual-band (2.4 GHz / 5 GHz) |
| WLAN data transfer rate (first band) |
300 Mbit/s |
| WLAN data transfer rate (second band) |
433 Mbit/s |
| Wi-Fi standards |
802.11a, 802.11b, 802.11g, Wi-Fi 5 (802.11ac) |
| Ports & interfaces |
|---|
| USB port |
Yes |
| USB 2.0 ports quantity |
1 |
| Ethernet LAN (RJ-45) ports |
1 |
| Design |
|---|
| Product type |
Portable router |
| Product colour |
White |
| Certificates |
|---|
| Compliance certificates |
RoHS, Federal Communications Commission (FCC), CE |
| Software |
|---|
| Windows operating systems supported |
Yes |
| Mac operating systems supported |
Yes |
| Linux operating systems supported |
Yes |
| Mac compatibility |
Yes |
| Packaging content |
|---|
| Quick start guide |
Yes |
| Cables included |
LAN (RJ-45) |
| AC adapter included |
Yes |
| Sustainability |
|---|
| Sustainability compliance |
Yes |
| Antenna |
|---|
| Antenna design |
Internal |
| Receive power |
11a 54M: -76dBm; 11ac VHT20 MCS8: -70dBm; 11ac VHT40 MCS9: -65.5dBm; 11ac VHT80 MCS9: -61.5dBm, 2.4GHz: 11g 54M: -76dBm11n; HT20 MCS7: -74dBm; 11n HT40 MCS7: -71dBm |
| Antennas quantity |
2 |
| Transmit power |
CE:<20dBm(2.4GHz), <23dBm(5GHz) |
| Features |
|---|
| Processor cores |
1 |
| Built-in processor |
Yes |
| Harmonized System (HS) code |
85176990 |
| Power |
|---|
| Power source type |
USB |
| Output voltage |
5 V |
| Output current |
2 A |
| Operational conditions |
|---|
| Storage temperature (T-T) |
-40 - 70 °C |
| Storage relative humidity (H-H) |
5 - 90% |
| Operating temperature (T-T) |
0 - 40 °C |
| Operating relative humidity (H-H) |
10 - 90% |
| System requirements |
|---|
| Windows operating systems supported |
Yes |
| Mac operating systems supported |
Yes |
| Linux operating systems supported |
Yes |
| Mac compatibility |
Yes |
| Packaging data |
|---|
| Quick start guide |
Yes |
| Package width |
4.33" (110 mm) |
| Package weight |
10.6 oz (300 g) |
| Package height |
3.21" (81.5 mm) |
| Package depth |
4.29" (109 mm) |
| Cables included |
LAN (RJ-45) |
| AC adapter included |
Yes |
| Technical details |
|---|
| Sustainability compliance |
Yes |
| Compliance certificates |
RoHS, Federal Communications Commission (FCC), CE |
| Logistics data |
|---|
| Harmonized System (HS) code |
85176990 |
