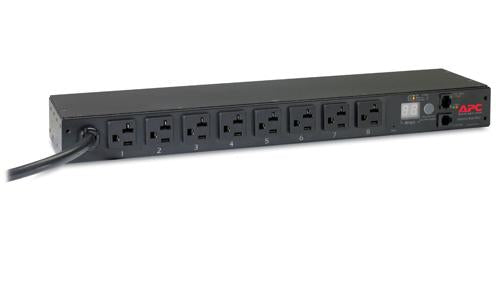

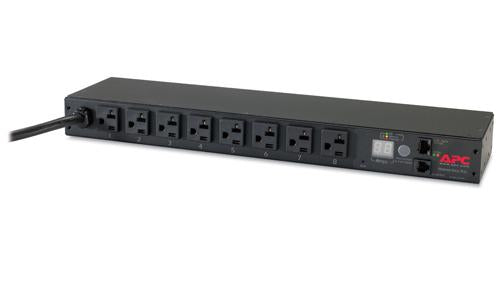

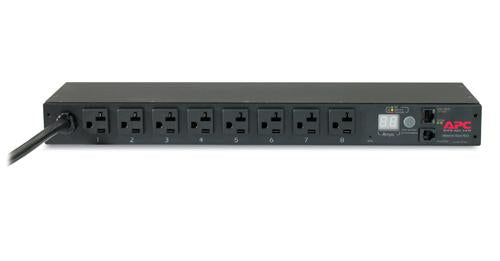

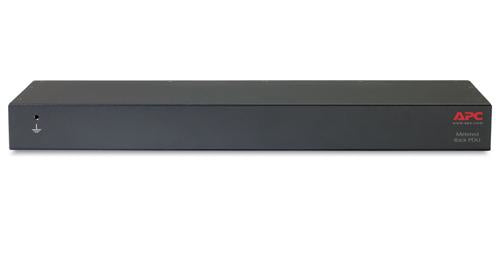

Metered, 1U, 20A, 120V, 50/60 Hz, 8x NEMA 5-20R, NEMA L5-20P, 444 x 102 x 44 mm, 1730 g
Description
AvailabilityAlarm ThresholdsDefine alarm thresholds in order to avoid overloaded circuits. Network and visual alarms inform the user of possible problems. (Note: Only available on units with the current monitoring capabilities. Please see SKU specifications for availability)
Local Current Monitoring DisplayThe aggregate current draw per rack PDU is displayed on the unit via a digital display. The local digital display helps installers avoid overloaded circuits by providing a visible warning when the current draw is close to the maximum amperage draw of the strip. (Available on designated SKUs only)
Integrates with StruxureWare Data Center ExpertAn IT-ready, scalable access monitoring system that collects, organizes, and distributes critical alerts, surveillance video and key information, providing a unified view of complex physical infrastructure environments from anywhere on the network
Load indicator LEDIndicates overload and warning conditions based on the user-defined alarm thresholds. Alerts users of potential overloaded circuits.
Flash UpgradeableQuickly and easily upgrade firmware via network download for future product enhancements. Eliminates the need to replace products already installed in the field when new features are released. (Note: Networked units only)
Remote Management CapabilitiesFull-featured network management interfaces that provide standards-based management via Web, SNMP, and Telnet. Allows users to access, configure, and manage units from remote locations to save valuable time. Associated with this feature is the ability to quickly and easily upgrade the firmware via network download to installed units for future product enhancements.
AgilityRack-MountableIncludes horizontal, vertical, and toolless-mount varieties. Puts power where it is needed most - in the racks near the equipment.
Single input power sourceSupply power from one branch whip to multiple pieces of equipment, conveniently powering rack-mount equipment. Saves time and money during installation by using one branch whip and standard connections.
Wide range of input and output connectionsProduct family includes a variety of input and output connections to distribute 120V, 208V, or 230V power to multiple outlets. Having a variety of inputs and outputs allow users to adapt to varying power requirements. APC offers units that bring up to 14.4kW using a single branch whip.
Marketing FeaturesLoad indicator LEDIndicates overload and warning conditions based on the user-defined alarm thresholds. Alerts users of potential overloaded circuits.
Local Current Monitoring DisplayThe aggregate current draw per power distribution unit is displayed on the unit via a digital display. The local digital display helps installers avoid overloaded circuits by providing a visible warning when the current draw is close to the maximum amperage draw of the strip.
Local and web-based monitoringStatus available to customers both in the data center and remotely
Wide range of input and output connectionsProduct family includes a variety of input and output connections to distribute 120V, 208V, or 230V power to multiple outlets. Having a variety of inputs and outputs allow users to adapt to varying power requirements. APC offers units that bring up to 14.4kW using a single branch whip.
Alarm ThresholdsDefine alarm thresholds in order to avoid overloaded circuits. Network and visual alarms inform the user of possible problems.
Specifications
| Design |
| PDU types |
Metered |
| Product colour |
Black |
| Certification |
cUL, CSA, FCC 15 A, ICES-003, UL 60950, UL |
| Rack capacity |
1U |
| Ports & interfaces |
| AC outlets quantity |
8 AC outlet(s) |
| AC outlet types |
NEMA L5-20R |
| Input connection type |
NEMA L5-20P |
| Features |
| Cable length |
144.1" (3.66 m) |
| LED indicators |
Yes |
| Certification |
cUL, CSA, FCC 15 A, ICES-003, UL 60950, UL |
| Management features |
| Monitoring |
Current |
| Ergonomics |
| Cable length |
144.1" (3.66 m) |
| LED indicators |
Yes |
| Power |
| Nominal input voltage |
100-120 V |
| Nominal output voltage |
120 V |
| Maximum current |
20 A |
| Maximum total current draw per phase |
16 A |
| Maximum input current per phase |
20 A |
| Load capacity |
1920 VA |
| AC input frequency |
50 - 60 Hz |
| Weight & dimensions |
| Dimensions (WxDxH) |
17.5 x 4.02 x 1.73" (444 x 102 x 44 mm) |
| Weight |
3.81 lbs (1.73 kg) |
| Width |
17.5" (444 mm) |
| Depth |
4.02" (102 mm) |
| Height |
1.73" (44 mm) |
| Package width |
18.5" (470 mm) |
| Package depth |
13.3" (337 mm) |
| Package height |
2.52" (64 mm) |
| Package weight |
6.42 lbs (2.91 kg) |
| Package dimensions (WxDxH) |
18.5 x 13.3 x 2.52" (470 x 337 x 64 mm) |
| Packaging data |
| Package width |
18.5" (470 mm) |
| Package depth |
13.3" (337 mm) |
| Package height |
2.52" (64 mm) |
| Package weight |
6.42 lbs (2.91 kg) |
| Package dimensions (WxDxH) |
18.5 x 13.3 x 2.52" (470 x 337 x 64 mm) |
| Operational conditions |
| Operating temperature (T-T) |
-5 - 45 °C |
| Storage temperature (T-T) |
-25 - 65 °C |
| Storage relative humidity (H-H) |
5 - 95% |
| Operating relative humidity (H-H) |
5 - 95% |
| Operating altitude |
0 - 118110.2" (0 - 3000 m) |
| Non-operating altitude |
0 - 590551.2" (0 - 15000 m) |
| Technical details |
| Compliance certificates |
RoHS |
