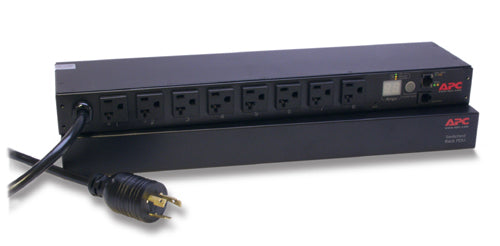

APC AP7901B power distribution unit (PDU) 8 AC outlet(s) 1U Black

Rack PDU, Switched, 1U, 20A, 120V, (8)5-20

Description

Availability

Network Management Capabilities
Full-featured network management interfaces that provide standards-based management via Web, SNMP, and Telnet. Allows users to access, configure, and manage rack PDUs from remote locations to save valuable time. Associated with this feature is the ability to quickly and easily upgrade the firmware via network download to installed units for future product enhancements.

Remote Individual Outlet Control
Remotely manage outlets so users can turn outlets off that are not in use (prevent overloads) or recycle power to locked-up equipment (minimize costly downtime and avoid travel time to equipment).

Alarm Thresholds
Define alarm thresholds in order to avoid overloaded circuits. Network and visual alarms inform the user of possible problems. (Note: Only available on units with the current monitoring capabilities. Please see SKU specifications for availability)

Local Current Monitoring Display
The aggregate current draw per rack PDU is displayed on the unit via a digital display. The local digital display helps installers avoid overloaded circuits by providing a visible warning when the current draw is close to the maximum amperage draw of the strip. (Available on designated SKUs only)

Power Delays
Allows users to configure the sequence in which power is turned on or off for each outlet. This helps avoid in-rushes at start-up, which can cause overloaded circuits and dropped loads. Sequencing also allows users to predetermine which piece of equipment is turned on first so other equipment dependant on that unit will function properly.

Load indicator LED
Indicates overload and warning conditions based on the user-defined alarm thresholds. Alerts users of potential overloaded circuits.

Flash Upgradeable
Quickly and easily upgrade firmware via network download for future product enhancements. Eliminates the need to replace products already installed in the field when new features are released. (Note: Networked units only)

Integrates with StruxureWare Data Center Expert
An IT-ready, scalable access monitoring system that collects, organizes, and distributes critical alerts, surveillance video and key information, providing a unified view of complex physical infrastructure environments from anywhere on the network

Marketing Features

Remote Individual Outlet Control
Remotely manage outlets so users can turn outlets off that are not in use (prevent overloads) or recycle power to locked-up equipment (minimize costly downtime and avoid travel time to equipment).

Remote Management Capabilities
Full-featured network management interfaces that provide standards-based management via Web, SNMP, and Telnet. Allows users to access, configure, and manage units from remote locations to save valuable time. Associated with this feature is the ability to quickly and easily upgrade the firmware via network download to installed units for future product enhancements.

Alarm Thresholds
Define alarm thresholds in order to avoid overloaded circuits. Network and visual alarms inform the user of possible problems.

Power Delays
Allows users to configure the sequence in which power is turned on or off for each outlet. This helps avoid in-rushes at start-up, which can cause overloaded circuits and dropped loads. Sequencing also allows users to predetermine which piece of equipment is turned on first so other equipment dependant on that unit will function properly.

Local Current Monitoring Display
The aggregate current draw per power distribution unit is displayed on the unit via a digital display. The local digital display helps installers avoid overloaded circuits by providing a visible warning when the current draw is close to the maximum amperage draw of the strip.

Agility

Single input power source
Supply power from one branch whip to multiple pieces of equipment, conveniently powering rack-mount equipment. Saves time and money during installation by using one branch whip and standard connections.

Rack-Mountable
Includes horizontal, vertical, and toolless-mount varieties. Puts power where it is needed most - in the racks near the equipment.

Wide range of input and output connections
Product family includes a variety of input and output connections to distribute 120V, 208V, or 230V power to multiple outlets. Having a variety of inputs and outputs allow users to adapt to varying power requirements. APC offers units that bring up to 14.4kW using a single branch whip.

Specifications

Design
PDU types	Switched
Product colour	Black
Certification	cUL, CSA, FCC 15 A, ICES-003, UL 60950, UL
Rack capacity	1U
Ports & interfaces
AC outlets quantity	8 AC outlet(s)
AC outlet types	NEMA 5–20R
Input connection type	NEMA L5-20P
Features
Cable length	144.1" (3.66 m)
Certification	cUL, CSA, FCC 15 A, ICES-003, UL 60950, UL
Management features
Monitoring	Current
Outlet control	Recycle, Turn off
Ergonomics
Cable length	144.1" (3.66 m)
Power
Nominal input voltage	120 V
Nominal output voltage	120 V
Maximum current	20 A
Maximum total current draw per phase	16 A
Maximum input current per phase	20 A
Load capacity	2400 VA
AC input frequency	50 - 60 Hz
Certificates
Certification	cUL, CSA, FCC 15 A, ICES-003, UL 60950, UL
Compliance certificates	RoHS
Operational conditions
Operating temperature (T-T)	0 - 45 °C
Storage temperature (T-T)	-25 - 65 °C
Storage relative humidity (H-H)	0 - 95%
Operating relative humidity (H-H)	0 - 95%
Operating altitude	0 - 118110.2" (0 - 3000 m)
Non-operating altitude	0 - 590551.2" (0 - 15000 m)
Weight & dimensions
Weight	5 lbs (2.27 kg)
Width	17.5" (445 mm)
Depth	4.25" (108 mm)
Height	1.73" (44 mm)
Package width	18.5" (470 mm)
Package depth	13.5" (343 mm)
Package height	2.76" (70 mm)
Package weight	7.61 lbs (3.45 kg)
Packaging data
Package width	18.5" (470 mm)
Package depth	13.5" (343 mm)
Package height	2.76" (70 mm)
Package weight	7.61 lbs (3.45 kg)
Technical details
Compliance certificates	RoHS
