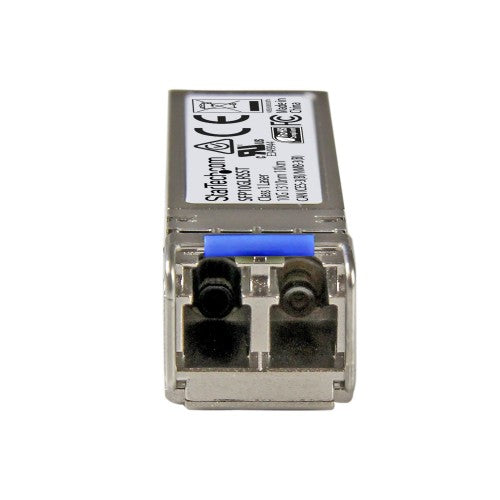

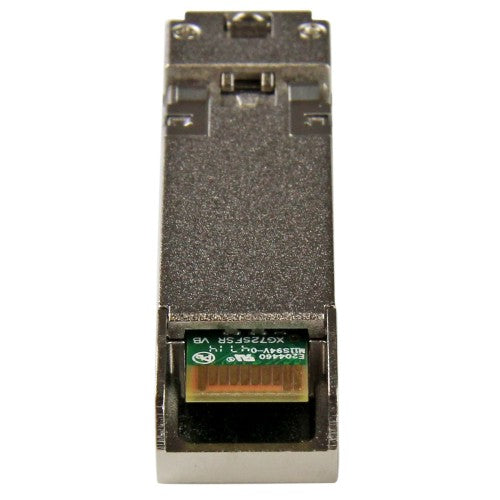

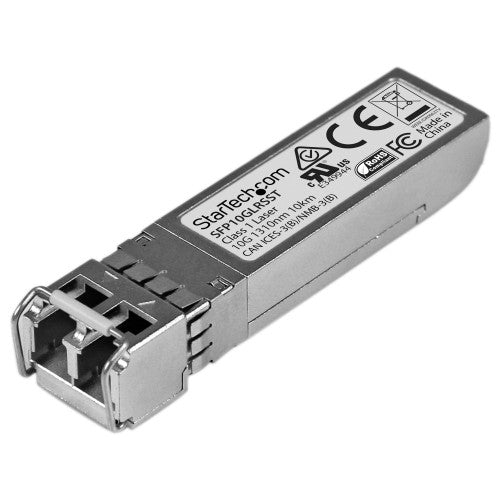

StarTech.com Cisco SFP-10G-LR-S Compatible SFP+ Module - 10GBASE-LR - 10GbE Single Mode Fiber SMF Optic Transceiver - 10GE Gigabit Ethernet SFP+ LC 10km - 1310nm - DDM Cisco Firepower (SFP10GLRSST)
Key Features
- 100% CISCO SFP-10G-LR-S COMPATIBLE: Works with Cisco switches like Firepower, ASR9000, C9300, C3850, C9500 and others
- TECHNICAL SPECS: 10GBASE-LR / 10 Gbps / Single Mode (SMF) / LC Connector / 1310nm / Digital Diagnostic Monitoring (DDM) / Distances up to 10km (6.2mi)
- TESTED FOR OEM HOST COMPATIBILITY: Hot-swappable in Cisco routers and switches; DDM support reports the transceiver's status to most SNMP network management tools
- WORKS WITH MSA COMPLIANT SWITCHES: Also works with switch models from Ubiquiti, D-Link, Netgear, Supermicro, TP-Link and more that accept uncoded modules
- THE IT PRO’S CHOICE: Designed and built for IT Professionals, this SFP module is backed for life (lifetime of module, not network switch), including free lifetime 24/5 multi-lingual technical assistance.
Description
10 Gbps | Single Mode Fiber | LC | 10 km (6.2 mi) | Lifetime Warranty
The SFP10GLRSST is a Cisco SFP-10G-LR-S compatible fiber transceiver module that has been designed, programmed and tested to work with Cisco™ brand switches and routers. It delivers dependable 10 GbE connectivity over fiber cable, for 10GBASE-LR compliant networks, with a maximum distance of up to 10 km (6.2 mi).
Technical Specifications:
• Wavelength: 1310nm
• Maximum Data Transfer Rate: 10 Gbps
• Type: Single Mode Fiber
• Connection Type: LC Connector
• Maximum Transfer Distance: 10 km (6.2 mi)
• MTBF: 2,104,865 hours
• Power Consumption: Less than 1.3 Watts
• Digital Diagnostics Monitoring (DDM): Yes
This SFP+ fiber module is hot-swappable, making upgrades and replacements seamless by minimizing network disruptions.
StarTech.com SFPs
All StarTech.com SFP & SFP+ transceiver modules are backed by a lifetime warranty and free lifetime multilingual technical support. StarTech.com offers a wide variety of SFP modules and direct-attach SFP cables, providing the convenience and reliability you need to ensure dependable network performance.
The StarTech.com Advantage
Specifications
| Network |
|---|
| SFP transceiver type |
Fiber optic |
| Interface type |
SFP+ |
| Maximum data transfer rate |
10000 Mbit/s |
| Fiber optic connector |
LC |
| Networking standards |
IEEE 802.3ae |
| Performance |
|---|
| Country of origin |
China |
| Product colour |
Silver |
| Housing material |
Aluminum |
| Hot-swap |
Yes |
| Mean time between failures (MTBF) |
2104865 h |
| SFP transceiver type |
Fiber optic |
| Digital Diagnostics Monitoring (DDM) |
Yes |
| Interface type |
SFP+ |
| Maximum data transfer rate |
10000 Mbit/s |
| Fiber optic connector |
LC |
| Networking standards |
IEEE 802.3ae |
| Maximum transfer distance |
393700.8" (10000 m) |
| Wavelength |
1310 nm |
| Duplex system |
Full |
| Single-mode fiber (SMF) supported |
Yes |
| SFP transceiver standard |
LR |
| Harmonized System (HS) code |
85369010 |
| Features |
|---|
| Country of origin |
China |
| Product colour |
Silver |
| Housing material |
Aluminum |
| Hot-swap |
Yes |
| Certification |
CE, FCC, UR |
| Mean time between failures (MTBF) |
2104865 h |
| Power |
|---|
| Power consumption (typical) |
1.3 W |
| Operational conditions |
|---|
| Operating temperature (T-T) |
0 - 70 °C |
| Storage temperature (T-T) |
-40 - 85 °C |
| Operating relative humidity (H-H) |
5 - 95% |
| Weight & dimensions |
|---|
| Width |
0.547" (13.9 mm) |
| Depth |
2.3" (58.4 mm) |
| Height |
0.496" (12.6 mm) |
| Weight |
0.705 oz (20 g) |
| Package depth |
3.66" (93 mm) |
| Package width |
4.65" (118 mm) |
| Package height |
1.3" (33 mm) |
| Package weight |
1.69 oz (48 g) |
| Packaging data |
|---|
| Package depth |
3.66" (93 mm) |
| Package width |
4.65" (118 mm) |
| Package height |
1.3" (33 mm) |
| Package weight |
1.69 oz (48 g) |
| Technical details |
|---|
| Compliance certificates |
RoHS |
| Certificates |
|---|
| Certification |
CE, FCC, UR |
| Logistics data |
|---|
| Master (outer) case width |
9.96" (253 mm) |
| Master (outer) case length |
12" (305 mm) |
| Master (outer) case height |
7.91" (201 mm) |
| Products per master (outer) case |
36 pc(s) |
| Harmonized System (HS) code |
85369010 |
| Quantity per pack |
1 pc(s) |
