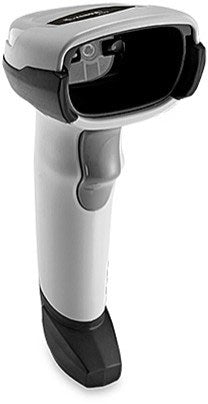

SR, 2D, 645nm, 0-360°, Skew ± 65°, Pitch ± 65°, IP42, 161.6g, Wired, USB/RS-232/RS-485/Keyboard Wedge
Description
AFFORDABILITY AND SIMPLICITY DELIVERED2D barcodes have made their way to your Point of Sale, appearing on everything from the items your customers are purchasing to printed and electronic coupons and loyalty cards.
Your 1D scanner can’t capture the new 2D codes, leading to exceptions that slow down the check-out process and frustrate customers at that key last personal touchpoint in your store.
But with the DS2200 Series, you can scan it all. You get an affordable 1D/2D imager that doesn’t compromise performance or features for price. And you can choose the model that best fits your POS needs — the corded DS2208 or the cordless DS2278. The DS2200 Series — the affordability your budget demands, with the deployment, ease of use and management simplicity your business requires.
Specifications
| Scanning |
|---|
| Type |
Handheld bar code reader |
| 2D (matrix & stacked) barcodes supported |
Aztec Code, Composite Codes, Data Matrix, Han Xin, MaxiCode, Micro QR Code, PDF417, QR Code, TLC-39 |
| Linear (1D) barcodes supported |
Code 11, Code 128, Code 39, Code 93, GS1 DataBar Expanded, U.P.C. |
| Yaw reading angle |
-65 - 65° |
| Wavelength |
645 nm |
| Sensor type |
LED |
| Scanner type |
1D/2D |
| Pitch reading angle |
-65 - 65° |
| Optical sensor resolution (W x H) |
640 x 480 pixels |
| Ports & interfaces |
|---|
| Connectivity technology |
Wired |
| Cable length |
393.7" (10 m) |
| Standard interfaces |
USB, RS-232, RS-485, Keyboard wedge |
| Performance |
|---|
| LED indicators |
Yes |
| Housing material |
Plastic |
| International Protection (IP) code |
IP42 |
| Product colour |
White |
| Certification |
EN 60950-1 2ed + A11 + A1 + A12 + A2:2013, IEC 60950-1 2ed + A1 + A2, UL 60950-1, CAN/CSA-C22.2 No. 60950-1-07
IEC 62471
EN 55022 (Class B); EN 55032 (Class B)
EN 55024
EN 61000-3-2
EN 61000-3-3
47 CFR Part 15, Subpart B, Class B
ICES-003 Issue 6, Class B |
| Design |
|---|
| Type |
Handheld bar code reader |
| LED indicators |
Yes |
| Housing material |
Plastic |
| International Protection (IP) code |
IP42 |
| Product colour |
White |
| Certification |
EN 60950-1 2ed + A11 + A1 + A12 + A2:2013, IEC 60950-1 2ed + A1 + A2, UL 60950-1, CAN/CSA-C22.2 No. 60950-1-07
IEC 62471
EN 55022 (Class B); EN 55032 (Class B)
EN 55024
EN 61000-3-2
EN 61000-3-3
47 CFR Part 15, Subpart B, Class B
ICES-003 Issue 6, Class B |
| Power |
|---|
| Power consumption |
250 mA |
| Power source type |
DC |
| Battery life |
100 h |
| Input voltage |
5.5 V |
| Battery technology |
Lithium-Ion (Li-Ion) |
| Battery capacity |
2400 mAh |
| Weight & dimensions |
|---|
| Width |
2.6" (66 mm) |
| Depth |
3.9" (99 mm) |
| Height |
6.5" (165 mm) |
| Weight |
5.7 oz (161.6 g) |
| Technical details |
|---|
| Type |
Handheld bar code reader |
| LED indicators |
Yes |
| Housing material |
Plastic |
| International Protection (IP) code |
IP42 |
| Product colour |
White |
| Certification |
EN 60950-1 2ed + A11 + A1 + A12 + A2:2013, IEC 60950-1 2ed + A1 + A2, UL 60950-1, CAN/CSA-C22.2 No. 60950-1-07
IEC 62471
EN 55022 (Class B); EN 55032 (Class B)
EN 55024
EN 61000-3-2
EN 61000-3-3
47 CFR Part 15, Subpart B, Class B
ICES-003 Issue 6, Class B |
| Harmonized System (HS) code |
84716070 |
| Compliance certificates |
RoHS |
| Packaging data |
|---|
| Charging base |
No |
| Cables included |
Micro-USB |
| Operational conditions |
|---|
| Storage temperature (T-T) |
-40 - 70 °C |
| Operating temperature (T-T) |
0 - 50 °C |
| Operating relative humidity (H-H) |
5 - 95% |
| Packaging content |
|---|
| Charging base |
No |
| Cables included |
Micro-USB |
| Logistics data |
|---|
| Harmonized System (HS) code |
84716070 |
