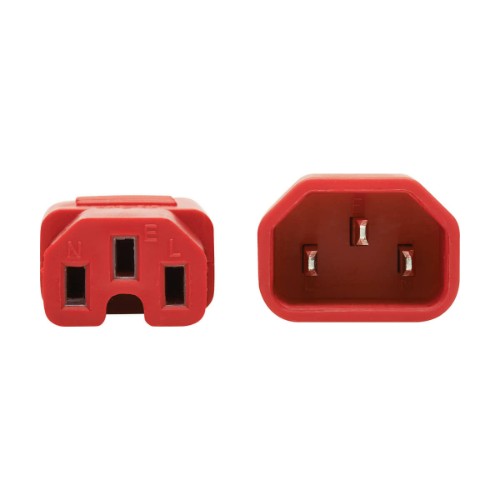

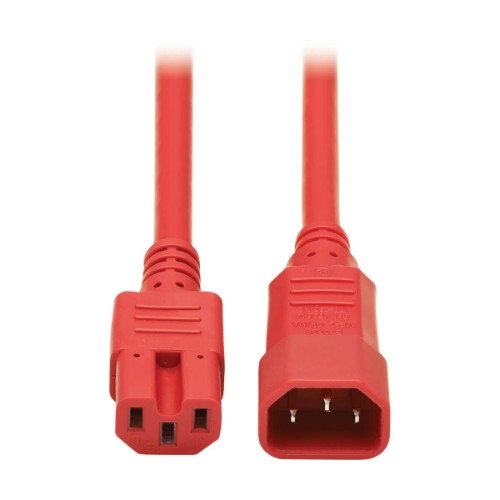

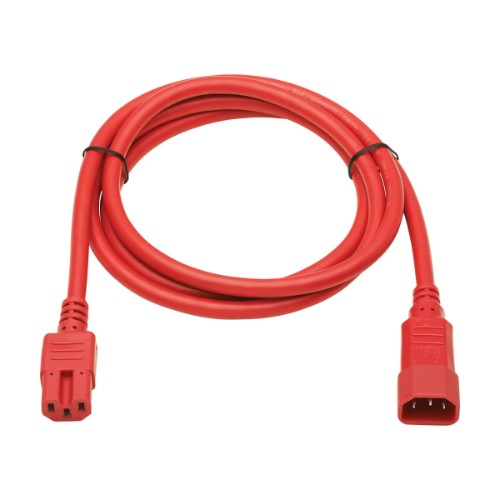

Power Cord C14 to C15 - Heavy-Duty, 15A, 250V, 14 AWG, 6 ft. (1.83 m), Red
Key Features
- Easy-to-identify red SJT jacket and fully molded red ends
- Flexible 14 AWG wire for easy routing
- 250V/15A rating
- UL-listed
- Recommended for Cisco®, HP and other C15-compatible hardware
Description
Safe, Reliable Power SolutionConnects PDU or UPS system with C14 input to network hardware with C15 power connectors
Ideal for replacing an old or lost cord
Recommended for Cisco, HP and other C15-compatible hardware
Color-Coded Cable and ConnectorsColored red for easy identification in crowded rack or workstation
Optimum Construction14 AWG wire
Flexible SJT jacket
250V/15A rating
UL-listed
Specifications
| Ports & interfaces |
|---|
| Connector 2 |
C15 coupler |
| Connector 1 |
C14 coupler |
| Cable length |
70.9" (1.8 m) |
| Features |
|---|
| Connector 1 form factor |
Straight |
| Connector 2 form factor |
Straight |
| Cable type |
SJT |
| AWG wire size |
14 |
| Certification |
UL |
| Connector 2 |
C15 coupler |
| Connector 1 |
C14 coupler |
| Cable length |
70.9" (1.8 m) |
| Connector 2 gender |
Female |
| Connector 1 gender |
Male |
| Product colour |
Red |
| Power |
|---|
| Input voltage |
250 V |
| Input current |
15 A |
| Colour |
|---|
| Product colour |
Red |
| Operational conditions |
|---|
| Operating temperature (T-T) |
-20 - 105 °C |
| Storage temperature (T-T) |
-20 - 105 °C |
| Operating relative humidity (H-H) |
10 - 85% |
| Storage relative humidity (H-H) |
10 - 85% |
| Certificates |
|---|
| Certification |
UL |
| Compliance certificates |
RoHS |
| Packaging data |
|---|
| Package width |
7" (177.8 mm) |
| Package depth |
0.5" (12.7 mm) |
| Package height |
11" (278.9 mm) |
| Package weight |
10.9 oz (310 g) |
| Quantity per pack |
1 pc(s) |
| Technical details |
|---|
| Country of origin |
Vietnam |
| Applicability |
Universal |
| Master (outer) case GTIN (EAN/UPC) |
10037332199185 |
| Harmonized System (HS) code |
84733080 |
| Compliance certificates |
RoHS |
| Weight & dimensions |
|---|
| Package width |
7" (177.8 mm) |
| Package depth |
0.5" (12.7 mm) |
| Package height |
11" (278.9 mm) |
| Package weight |
10.9 oz (310 g) |
| Logistics data |
|---|
| Master (outer) case gross weight |
6.83 lbs (3.1 kg) |
| Products per master (outer) case |
10 pc(s) |
| Master (outer) case width |
13" (330.2 mm) |
| Master (outer) case length |
1" (25.4 mm) |
| Master (outer) case height |
19.7" (500.1 mm) |
| Master (outer) case GTIN (EAN/UPC) |
10037332199185 |
| Harmonized System (HS) code |
84733080 |
| Other features |
|---|
| Country of origin |
Vietnam |
