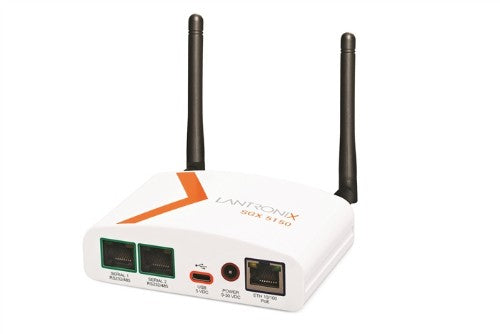

Lantronix SGX 5150 gateway/controller 10, 100 Mbit/s

SGX 5150 Wireless IoT Gateway, 802.11a/b/g/n/ac, 1xRS232 (RJ45), USB, 10/100 Ethernet, US (For USA/Canada Deployments)

Description

Accelerate to IoT Connectivity with our next generation IoT Device Gateway.

The SGX 5150 enables quick and secure connectivity for business-critical IoT-assets and data to the enterprise network. And with its powerful feature-rich advanced turnkey design, the SGX provides everything you need to connect and get to market quickly.

The SGX 5150 gateway delivers high-performance 802.11ac wireless connectivity for reliable and persistent connections and higher data rates for time critical applications. Designed from the ground up with security as the top priority, our TruPort Security feature set provides trusted enterprise-level security for all of your IoT-assets and data across all connections.

The built-in essential IoT applications quickly accelerate you to a globally connected IoT business solution, and with the multi-interface access, the SGX 5150 provides connectivity to virtually any
business-critical asset through existing interfaces.

The SoftAP and Wi-Fi Direct Modes enable for Quick Configuration with our Wireless QuickConnect feature. The powerful Web Manager provides for easy device status, configuration and updates.

Designed with the highest industrial requirements and quality, the SGX delivers reliable performance, even in the toughest environments, and with a comprehensive set of global certifications, your business can deploy in confidence.

Lantronix provides the global, experienced and personalized technical support that you have come to trust.

Specifications

Design
LED indicators	Yes
Certification	FCC ICES-003:2012 RED 2014/53/EU, EMCD 2014/30/EU, EN 300 328 V1.9.1, EN 301 489-1 V1.9.2, EN301 489-17 V2.2.1, EN 301 893 V1.8.1, EN 62311: 2008 AS/NZS CISPR 22, AS/NZS 4268: A1: 2013, AS/NZS 2772.2VCCI EN 55022:2010, EN 55024:2010, EN 61000-3-2:A2 2009, EN 61000-3-3: 2008 UL 60950/CSA 22.2 No. 60950, IEC 60950 CE LVD 2014/35/EU
Protocols
DHCP server	Yes
DHCP client	Yes
Management protocols	Telnet, HTTP(S), SNMP v2/v3
Supported protocols	IPv4/IPv6, TCP, UDP, ICMP, ARP, Auto-IP, DNS, (S)FTP
Network
Networking standards	IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11d, IEEE 802.11g, IEEE 802.11h, IEEE 802.11i, IEEE 802.11n, IEEE 802.1x, IEEE 802.3, IEEE 802.3u
Ethernet LAN data rates	10,100 Mbit/s
Frequency band	2.4 / 5 GHz
Wi-Fi	Yes
Wireless connection	Yes
Full duplex	Yes
Cabling technology	10/100BASE-T(X)
Security
Security algorithms	802.1x RADIUS, AES, EAP-FAST, EAP-PEAP, EAP-TLS, EAP-TTLS, MSCHAPv2, WPA, WPA2, WPA2-PSK, WPS
Authentication method	RADIUS
Ports & interfaces
Ethernet LAN (RJ-45) ports	1
Management features
Web-based management	Yes
Universal Plug and Play (UPnP)	Yes
Reset button	Yes
Power
Power requirements	9 - 30 VDC
Power consumption (typical)	1.9 W
Power over Ethernet (PoE)	No
Weight & dimensions
Weight	12.3 oz (350 g)
Dimensions (WxDxH)	4.33 x 3.5 x 1.02" (110 x 89 x 26 mm)
Operational conditions
Operating temperature (T-T)	-40 - 70 °C
Storage temperature (T-T)	-40 - 85 °C
Operating relative humidity (H-H)	5 - 95%
Technical details
Wi-Fi	Yes
Wireless connection	Yes
Full duplex	Yes
Indication
LED indicators	Yes
Certificates
Certification	FCC ICES-003:2012 RED 2014/53/EU, EMCD 2014/30/EU, EN 300 328 V1.9.1, EN 301 489-1 V1.9.2, EN301 489-17 V2.2.1, EN 301 893 V1.8.1, EN 62311: 2008 AS/NZS CISPR 22, AS/NZS 4268: A1: 2013, AS/NZS 2772.2VCCI EN 55022:2010, EN 55024:2010, EN 61000-3-2:A2 2009, EN 61000-3-3: 2008 UL 60950/CSA 22.2 No. 60950, IEC 60950 CE LVD 2014/35/EU
Performance
Certification	FCC ICES-003:2012 RED 2014/53/EU, EMCD 2014/30/EU, EN 300 328 V1.9.1, EN 301 489-1 V1.9.2, EN301 489-17 V2.2.1, EN 301 893 V1.8.1, EN 62311: 2008 AS/NZS CISPR 22, AS/NZS 4268: A1: 2013, AS/NZS 2772.2VCCI EN 55022:2010, EN 55024:2010, EN 61000-3-2:A2 2009, EN 61000-3-3: 2008 UL 60950/CSA 22.2 No. 60950, IEC 60950 CE LVD 2014/35/EU
