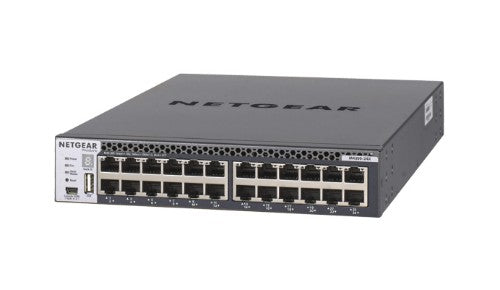

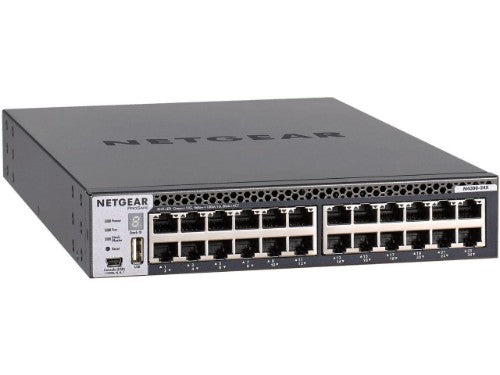

NETGEAR M4300-24X Managed L3 10G Ethernet (100/1000/10000) 1U Black

24x 100/1000/10GBASE-T RJ45 ports, 4x 1000/10GBASE-X SFP+ ports, 480 Gps, 37dB, 250W, Americas, Europe

Description

ProSAFE M4300 Intelligent Edge Series

Stackable Switches with Full PoE+ Provisioning
The world’s first 1G and 10G virtual chassis platform with 10G stacking designed for mid-enterprise edge and SMB core deployments. The M4300 series scales from 24x1G to 48x10G to deliver resilient, spine and leaf, edge to core connectivity for unified wired and wireless networks.

Introducing the NETGEAR ProSAFE M4300 Intelligent Edge Series
Managed Switches with 10 Gigabit models and 1 Gigabit models all stacking together.

The NETGEAR ProSAFE M4300 Intelligent Edge Series applications
Cost effective edge, HA top-of-rack, and spine and leaf collapsed cores.

What sets M4300 Intelligent Edge Series apart?
Mixed stacking, hybrid 10G, full power PoE+, nonstop forwarding (NSF) and hitless failover.

The NETGEAR M4300 Stackable Switch Series delivers L2/L3/L4 and IPv4/IPv6 cost-effective services for mid-enterprise edge with full PoE+ and SMB core deployments with unrivalled ease of use: 10 Gigabit models can seamlessly stack with 1 Gigabit models within the series, enabling spine and leaf line-rate stacking topologies. Non-stop forwarding (NSF) virtual chassis architectures provide advanced High Availability (HA) with hitless failover across the stack. Dual redundant, modular power supplies equipping full width models contribute to business continuity management. Layer 3 feature set includes static, dynamic and policy-based routing – as standard. Perfect for wireless access, unified communications and IP video, the NETGEAR M4300 Switch Series is also ready for the future, with Software-defined Network (SDN) and OpenFlow 1.3 enabled for your network.

Best-in-class stacking
- M4300 is flexible enough for mixed stacking between 10 Gigabit and 1 Gigabit models, using any 10G port with any media type (RJ45, SFP+, DAC cables)
- High-availability is another key differentiator for stackable solutions: in case of a master switch failure, NSF and hitless failover ensure the standby switch takes over while forwarding plane continues to forward traffic on the operational stack members without any service interruption

Higher flexibility
- Two half-width M4300 switches can be paired in a single rack space for redundant Top of Rack installations with Auto-iSCSI prioritization
- 10 Gigabit ports are all independent and 1G backward compatible for progressive transition to 10G speeds

Lower complexity
- Entire feature set including L2 switching (multi-tiered access control) and L3 routing (static, RIP, OSPF, VRRP, PIM, PBR) is available without license
- DHCP/BootP innovative auto-installation including firmware and configuration file upload automation

Investment protection
- Line-rate spine and leaf stacking topologies offer multiple possibilities in server rooms, in branch collapsed cores or at the edge of growing networks
- Even if an organization is not ready for SDN, OpenFlow support offers future-ready design for maximum investment protection

Secure services
- With successive tiering, the Authentication Manager allows for authentication methods per port for a tiered authentication based on configured time-outs
- With BYOD, tiered Dot1x -> MAB -> Captive Portal authentication is powerful and simple to implement with strict policies

Industry standard management
- Industry standard command line interface (CLI), functional NETGEAR web interface (GUI), SNMP, sFlow and RSPAN
- Single-pane-of-glass NMS300 management platform with centralized firmware updates and mass-configuration support

Industry leading warranty
- NETGEAR M4300 series is covered under NETGEAR ProSafe Lifetime Hardware Warranty
- 90 days of Technical Support via phone and email, Lifetime Technical Support through online chat and Lifetime Next Business Day hardware replacement

Specifications

Management features
Reset button	Yes
Multicast support	Yes
ARP inspection	Yes
Switch type	Managed
System event log	Yes
Quality of Service (QoS) support	Yes
Switch layer	L3
Virtual LAN features
VLAN support	Yes
Number of VLANs	4000
Virtual LAN features	Private VLAN
Data transmission
Number of VLANs	4000
Throughput	357 Mpps
Packet buffer memory	16 MB
MAC address table	16000 entries
Switching capacity	480 Gbit/s
Performance
Packet buffer memory	16 MB
Processor frequency	800 MHz
Noise level	37 dB
Internal memory	1024 MB
Flash memory	256 MB
Built-in processor	Yes
Harmonized System (HS) code	85176990
Power
Power connector	DC-in jack
AC input voltage	110 - 220 V
Power consumption (typical)	250 W
Technical details
Form factor	1U
Product colour	Black
Processor frequency	800 MHz
Noise level	37 dB
Rack mounting	Yes
Built-in processor	Yes
Ports & interfaces
SFP+ module slots quantity	4
Basic switching RJ-45 Ethernet ports quantity	24
Basic switching RJ-45 Ethernet ports type	10G Ethernet (100/1000/10000)
USB 2.0 ports quantity	2
Console port	RJ-45
Power connector	DC-in jack
Network
Networking standards	IEEE 802.1AX, IEEE 802.3ad, IEEE 802.3aq, IEEE 802.3az
VLAN support	Yes
Spanning tree protocol	Yes
Number of VLANs	4000
Link aggregation	Yes
10G support	Yes
Virtual LAN features	Private VLAN
Security
DHCP features	DHCP server
Multicast features
Multicast support	Yes
Protocols
Management protocols	Web GUI, HTTPs, CLI, Telnet, SSH, SNMP, MIBs RSPAN, Radius Users, TACACS+
Memory
Packet buffer memory	16 MB
Internal memory	1024 MB
Flash memory	256 MB
Design
Reset button	Yes
Form factor	1U
Product colour	Black
LED indicators	Yes
Rack mounting	Yes
Indication
LED indicators	Yes
Power over Ethernet (PoE)
Power over Ethernet (PoE)	No
Weight & dimensions
Weight	9.13 lbs (4.14 kg)
Logistics data
Harmonized System (HS) code	85176990
