255 W, 425 VA, 120 V, 50 - 60 Hz, 6 x NEMA 5-15R, 10 ms, 1.52 m, 88 - 139 V, 8 h, 47 VAh, 140 x 253 x 105 mm, 2.6 kg, black
Description

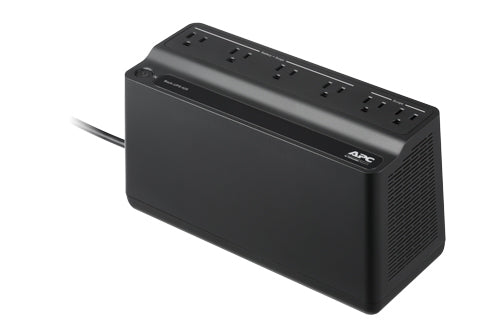

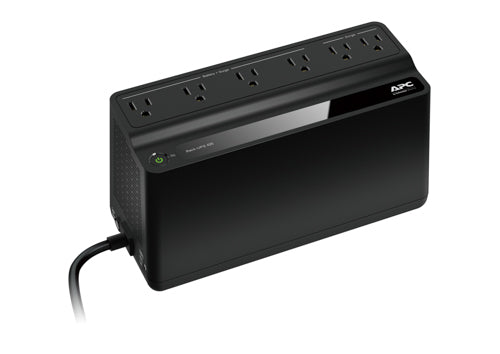

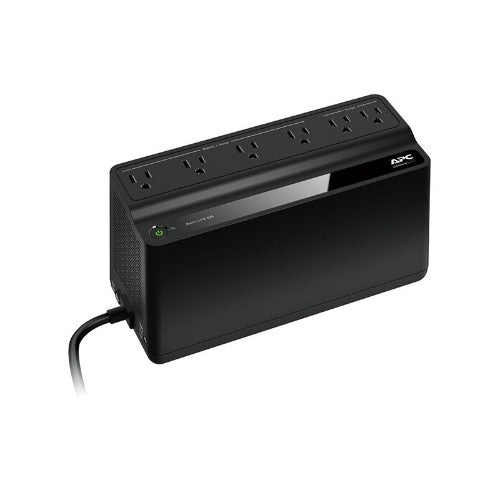

APC Back-UPS, 6 Outlets, 425VA, 120V
Battery Backup & Surge Protector for Electronics and Computers
Audible alarmsProvides notification of changing utility power and UPS power conditions
Building Wiring Fault IndicatorThis LED informs users of potentially dangerous wiring problems in the wall circuit.
LED IndicatorsProvide easy-to-read status of the unit and utility power conditions.
Specifications
| Power |
|---|
| Output frequency regulation |
50 - 60 Hz |
| Output power |
255 W |
| Input operation voltage (min) |
88 V |
| Input operation voltage (max) |
139 V |
| Output operation voltage (min) |
120 V |
| Output operation voltage (max) |
120 V |
| Surge energy rating |
180 J |
| Maximum current |
5 A |
| Output power capacity |
0.425 kVA |
| Input frequency |
50/60 Hz |
| Ports & interfaces |
|---|
| Cable length |
59.8" (1.52 m) |
| USB port |
No |
| AC outlets quantity |
6 AC outlet(s) |
| AC outlet types |
NEMA 5–15R |
| Power plug |
NEMA 5-15P |
| Performance |
|---|
| Hold time (min) |
6 ms |
| Hold time (max) |
10 ms |
| Audible alarm modes |
Alarm when on battery |
| UPS topology |
Standby (Offline) |
| Waveform |
Square |
| LED indicators |
Yes |
| EMI/RFI noise filtering |
Yes |
| Surge protection |
Yes |
| Noise level |
40 dB |
| Audible alarm(s) |
Yes |
| Features |
|---|
| Hold time (min) |
6 ms |
| Hold time (max) |
10 ms |
| Audible alarm modes |
Alarm when on battery |
| UPS topology |
Standby (Offline) |
| Waveform |
Square |
| Output frequency regulation |
50 - 60 Hz |
| Output power |
255 W |
| Input operation voltage (min) |
88 V |
| Input operation voltage (max) |
139 V |
| Output operation voltage (min) |
120 V |
| Output operation voltage (max) |
120 V |
| Surge energy rating |
180 J |
| Maximum current |
5 A |
| EMI/RFI noise filtering |
Yes |
| Surge protection |
Yes |
| Noise level |
40 dB |
| Audible alarm(s) |
Yes |
| Output power capacity |
0.425 kVA |
| Input frequency |
50/60 Hz |
| Battery |
|---|
| Battery life (max) |
5 year(s) |
| Battery capacity |
47 VAh |
| Number of batteries supported |
1 |
| Battery recharge time |
8 h |
| Design |
|---|
| Form factor |
Compact |
| LED indicators |
Yes |
| Product colour |
Black |
| Certification |
CEC, cTUVus, FCC Part 15 Class B, REACH |
| Cable length |
59.8" (1.52 m) |
| Operational conditions |
|---|
| Operating temperature (T-T) |
0 - 40 °C |
| Storage temperature (T-T) |
-20 - 50 °C |
| Operating relative humidity (H-H) |
0 - 95% |
| Storage relative humidity (H-H) |
0 - 95% |
| Operating altitude |
0 - 118110.2" (0 - 3000 m) |
| Non-operating altitude |
0 - 590551.2" (0 - 15000 m) |
| Technical details |
|---|
| Sustainability certificates |
ENERGY STAR |
| Compliance certificates |
RoHS |
| Weight & dimensions |
|---|
| Package width |
12.4" (315 mm) |
| Package depth |
5.51" (140 mm) |
| Package height |
8.66" (220 mm) |
| Weight |
5.73 lbs (2.6 kg) |
| Width |
9.96" (253 mm) |
| Package weight |
6.61 lbs (3 kg) |
| Height |
5.51" (140 mm) |
| Depth |
4.13" (105 mm) |
| Packaging data |
|---|
| Manual |
Yes |
| Package width |
12.4" (315 mm) |
| Package depth |
5.51" (140 mm) |
| Package height |
8.66" (220 mm) |
| Package weight |
6.61 lbs (3 kg) |
| Certificates |
|---|
| Certification |
CEC, cTUVus, FCC Part 15 Class B, REACH |
| Packaging content |
|---|
| Manual |
Yes |
