Tripp Lite U444-06N-DGU-C USB graphics adapter White

USB-C Multiport Adapter, DVI, USB 3.x (5Gbps) Hub Port, Gbe and PD Charging, White

Key Features

• Supports USB DisplayPort Alternate Mode for transmitting video
• Supports DVI video resolutions up to 1920 x 1080 (1080p) @ 60 Hz
• Supports true 10/100/1000 Mbps Ethernet network speeds
• PD Charging port supports power input up to 20V 3A
• BC 1.2-compliant USB-A port provides up to 1.5A of fast-charging power
• Plug-and-play operation with no software or drivers required

Description

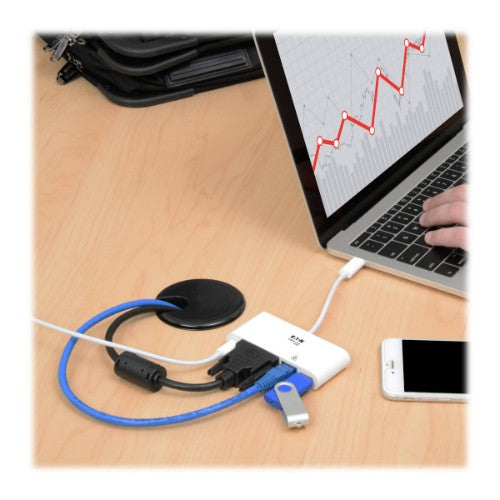

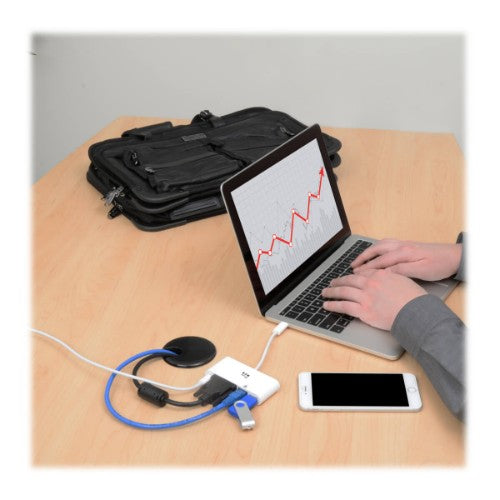

Mini Docking Station Turns Your Device’s USB-C Port into a Multiport Workstation
Ideal for transmitting video to a large display, adding a USB peripheral, powering and charging a PD Charging-compliant mobile device, and connecting to a Gigabit Ethernet network simultaneously
Plug-and-play operation with no software, drivers or external power required
About the size of a credit card for easy carrying in a pocket, purse or laptop bag

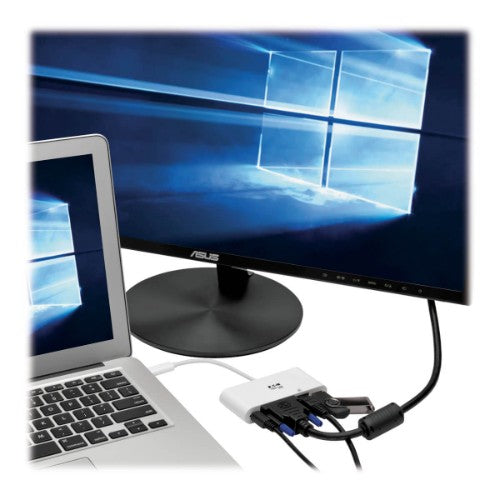

Transmit Crystal-Clear 1080p Video to DVI Display
Compatible with USB-C or Thunderbolt 3 source devices that support USB DisplayPort Alternate Mode
Supports DVI single-link video resolutions up to 1920 x 1080 (1080p) @ 60 Hz
Supports DVI digital transfer rates up to 6.75 Gbps (2.25 Gbps per channel)
Extends video from your primary display to another
Duplicates the same video on 2 displays
Converts a secondary display to your primary display

Connect a USB Peripheral
USB-A port accepts flash drives, mice, keyboards, printers and other USB peripherals
Supports USB 3.1 Gen 1 data transfer rates up to 5 Gbps
Backward compatible with USB 2.0 and USB 1.1
BC 1.2-compliant port provides up to 1.5A of fast-charging power to mobile devices

Note: Host must support USB OTG (On-the-Go)

Charge a Connected Device
USB-C PD port connects to wall charger to power and charge the connected PD Charging-compliant USB-C/Thunderbolt 3 device
Supports power input up to 20V 3A (60W)

Note: USB-C PD port does not support Quick Charge (QC).

Access a Wired Gigabit Ethernet Network
RJ45 port supports true 10/100/1000 Mbps network speeds
Recommended for a faster wired network connection or getting online when no Wi-Fi is available

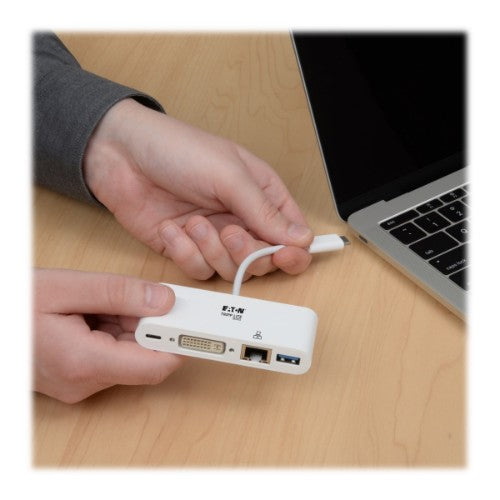

Built-In Cable with Reversible USB-C Connector
Fumble-free reversible USB-C plug connects in either direction for quick connection every time

Specifications

Performance
Supported video modes	1080p
Supported graphics resolutions	1920 x 1080 (HD 1080)
Design
Product colour	White
Weight & dimensions
Weight	1.41 oz (40 g)
Package width	3.9" (99.1 mm)
Package depth	5.7" (144.8 mm)
Package height	0.909" (23.1 mm)
Package weight	3.17 oz (90 g)
Packaging data
Package width	3.9" (99.1 mm)
Package depth	5.7" (144.8 mm)
Package height	0.909" (23.1 mm)
Package weight	3.17 oz (90 g)
Packaging content
Quantity per pack	1 pc(s)
Technical details
Master (outer) case GTIN (EAN/UPC)	10037332193916
Harmonized System (HS) code	84733080
Compliance certificates	RoHS
Logistics data
Country of origin	China
Products per master (outer) case	10 pc(s)
Master (outer) case width	9.84" (249.9 mm)
Master (outer) case gross weight	27.5 oz (780 g)
Master (outer) case length	6.3" (160 mm)
Master (outer) case height	4.72" (119.9 mm)
Quantity per pack	1 pc(s)
Master (outer) case GTIN (EAN/UPC)	10037332193916
Harmonized System (HS) code	84733080
