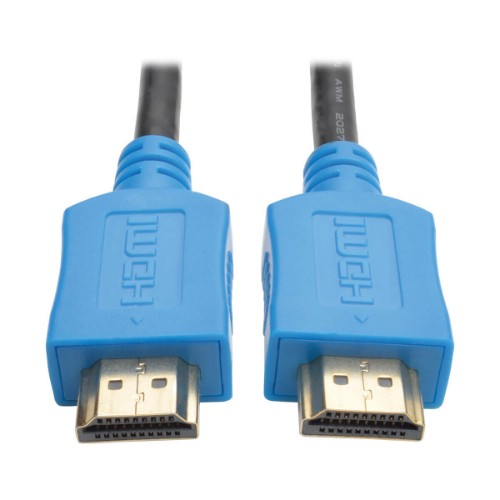

High-Speed HDMI Cable, Digital Video with Audio, UHD 4K (M/M), Blue, 10 ft. (3.05 m)
Key Features
- Supports UHD video resolutions up to 4K
- Backward compatible with previous HDMI generations
- Premium foil and braid shielding protects against EMI/RFI noise
- Gold-plated blue connectors for optimal signal transfer
Description
The P568-010-BL High-Speed HDMI Cable is ideal for digital signage, video presentations, point-of-sale displays, classrooms and other applications that display Ultra High Resolution (UHD) video and multi-channel audio. It connects HDMI-enabled source devices, such as computers and Blu-ray™ players, to HDMI-enabled displays, such as monitors, projectors and high-definition televisions.
This cable supports UHD video resolutions up to 3840 x 2160 (4K x 2K), including full 1080p, and data transfer speeds up to 18 Gbps—the fastest bandwidth currently available over HDMI. When used with an Apple® digital AV adapter, it supports iPad2® video mirroring for playing games, watching videos or displaying presentations. Backward compatible with previous HDMI generations, the P568-010-BL works in all HDMI cabling scenarios.
The 10-ft. (3.05 m) molded 30 AWG cable features premium foil and braid shielding to deliver top-of-the-line signal quality and protection from EMI/RFI interference. Gold-plated blue connectors ensure excellent conductivity. Integral strain relief ensures the cable and connectors last a long time. A flexible PVC jacket makes the HDCP-compliant cable easy to install in tight spaces.
Specifications
| Features |
|---|
| Connector 1 form factor |
Straight |
| Connector 2 form factor |
Straight |
| Product colour |
Black, Blue |
| Cable length |
122" (3.1 m) |
| Connector 1 |
HDMI Type A (Standard) |
| Connector 2 |
HDMI Type A (Standard) |
| Connector 1 gender |
Male |
| Connector 2 gender |
Male |
| Connector contacts plating |
Gold |
| AWG wire size |
30 |
| Data transfer rate |
10.2 Gbit/s |
| Maximum resolution |
3840 x 2160 pixels |
| Supported graphics resolutions |
1920 x 1080 (HD 1080), 3840 x 2160 |
| Supported video modes |
1080p |
| HDCP |
Yes |
| Cable jacket material |
Polyvinyl chloride (PVC) |
| Quantity per pack |
1 pc(s) |
| Certificates |
|---|
| Compliance certificates |
RoHS |
| Weight & dimensions |
|---|
| Weight |
6.35 oz (180 g) |
| Package width |
8" (203.2 mm) |
| Package depth |
0.5" (12.7 mm) |
| Package height |
10" (254 mm) |
| Package weight |
6.35 oz (180 g) |
| Packaging content |
|---|
| Quantity per pack |
1 pc(s) |
| Packaging data |
|---|
| Package width |
8" (203.2 mm) |
| Package depth |
0.5" (12.7 mm) |
| Package height |
10" (254 mm) |
| Package weight |
6.35 oz (180 g) |
| Quantity per pack |
1 pc(s) |
| Technical details |
|---|
| Country of origin |
China |
| Compliance certificates |
RoHS |
| Other features |
|---|
| Country of origin |
China |
| Width |
8" (203.2 mm) |
| Height |
10" (254 mm) |
| Depth |
0.5" (12.7 mm) |
| Master (outer) case GTIN (EAN/UPC) |
10037332197112 |
| Logistics data |
|---|
| Country of origin |
China |
| Master (outer) case gross weight |
3.2 lbs (1.45 kg) |
| Products per master (outer) case |
10 pc(s) |
| Master (outer) case width |
14" (355.6 mm) |
| Master (outer) case length |
1" (25.4 mm) |
| Master (outer) case height |
16" (406.4 mm) |
| Master (outer) case GTIN (EAN/UPC) |
10037332197112 |
| Harmonized System (HS) code |
8544.42.2000 |
