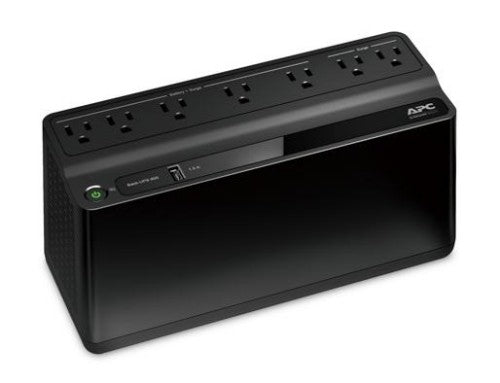

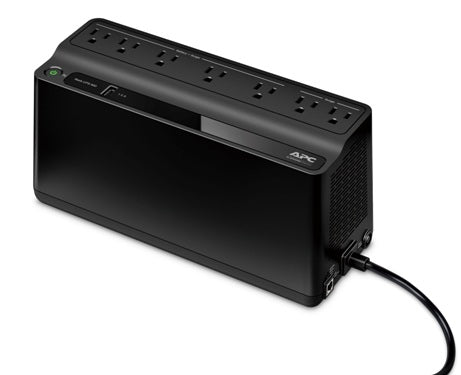

APC BE600M1 uninterruptible power supply (UPS) Standby (Offline) 0.6 kVA 330 W 7 AC outlet(s)

300 W, 600 VA, 120 V, 50 - 60 Hz, 7 x NEMA 5-15R, USB, 10 ms, 1.52 m, 92 - 139 V, 10 h, 66 VAh, 139 x 274 x 105 mm, 3.49 kg, black

Description

APC Back-UPS BE600M1, 600VA, 120V,1 USB charging port
Battery Backup & Surge Protector for Electronics and Computers

Adjustable voltage sensitivity
Provides the ability to adapt the UPS for optimal performance in specific power environments or generator applications.

Audible alarms
Provides notification of changing utility power and UPS power conditions

Automatic self-test
Periodic battery self-test ensures early detection of a battery that needs to be replaced.

Battery failure notification
Provides early-warning fault analysis on batteries enabling timely preventive maintenance

Building Wiring Fault Indicator
This LED informs users of potentially dangerous wiring problems in the wall circuit.

Cold-start capable
Provides temporary battery power when the utility power is out.

Disconnected battery notification
Warns when a battery is not available to provide backup power.

Hot-swappable batteries
Ensures clean, uninterrupted power to protected equipment while batteries are being replaced

Simple battery replacement
Increases UPS availability by allowing quick, easy battery replacement.

Transformer Block Spacing
Connect bulky transformer block plugs without covering up other outlets.

USB connectivity
Provides management of the UPS via a USB port (not available on all models).

Specifications

Power
Output frequency regulation	50 - 60 Hz
Output power	330 W
Input operation voltage (min)	92 V
Input operation voltage (max)	139 V
Output operation voltage (min)	120 V
Output operation voltage (max)	120 V
Surge energy rating	490 J
Maximum current	5 A
Output power capacity	0.6 kVA
Input frequency	50/60 Hz
Ports & interfaces
Cable length	59.8" (1.52 m)
USB port	Yes
AC outlets quantity	7 AC outlet(s)
AC outlet types	NEMA 5–15R
Power plug	NEMA 5-15P
USB 2.0 ports quantity	1
Performance
Hold time (min)	6 ms
Hold time (max)	10 ms
Audible alarm modes	Alarm when on battery, Low battery alarm, Overload alarm
UPS topology	Standby (Offline)
LED indicators	Yes
EMI/RFI noise filtering	Yes
Surge protection	Yes
Noise level	35 dB
Audible alarm(s)	Yes
Features
Hold time (min)	6 ms
Hold time (max)	10 ms
Audible alarm modes	Alarm when on battery, Low battery alarm, Overload alarm
UPS topology	Standby (Offline)
Output frequency regulation	50 - 60 Hz
Output power	330 W
Input operation voltage (min)	92 V
Input operation voltage (max)	139 V
Output operation voltage (min)	120 V
Output operation voltage (max)	120 V
Surge energy rating	490 J
Maximum current	5 A
EMI/RFI noise filtering	Yes
Surge protection	Yes
Noise level	35 dB
Audible alarm(s)	Yes
Output power capacity	0.6 kVA
Input frequency	50/60 Hz
Battery
Battery life (max)	5 year(s)
Battery capacity	66 VAh
Number of batteries supported	1
Battery recharge time	10 h
Cold start	Yes
Design
Form factor	Compact
LED indicators	Yes
Product colour	Black
Certification	REACH, CEC, cTUVus, FCC Part 15 Class B, NOM, UL 1778
Cable length	59.8" (1.52 m)
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-15 - 45 °C
Operating relative humidity (H-H)	0 - 90%
Storage relative humidity (H-H)	0 - 95%
Operating altitude	0 - 118110.2" (0 - 3000 m)
Non-operating altitude	0 - 590551.2" (0 - 15000 m)
Technical details
Sustainability certificates	ENERGY STAR
Compliance certificates	RoHS
Weight & dimensions
Package width	14.3" (363 mm)
Package depth	6.61" (168 mm)
Package height	7.72" (196 mm)
Weight	7.69 lbs (3.49 kg)
Width	10.8" (274 mm)
Package weight	8.4 lbs (3.81 kg)
Height	5.47" (139 mm)
Depth	4.13" (105 mm)
Packaging data
Manual	Yes
Package width	14.3" (363 mm)
Package depth	6.61" (168 mm)
Package height	7.72" (196 mm)
Package weight	8.4 lbs (3.81 kg)
Certificates
Certification	REACH, CEC, cTUVus, FCC Part 15 Class B, NOM, UL 1778
Packaging content
Manual	Yes
