StarTech.com ICUSB23216FD interface hub USB 2.0 Type-B 480 Mbit/s Black

StarTech.com USB to Serial Hub - 16 Port - COM Port Retention - Rack Mount and Daisy Chainable - USB to RS232 Hub

Key Features

• Gain 16 RS232 serial port interfaces through a single USB port
• Connect multiple hubs together through daisy chain functionality
• 921.6Kbps baud per port
• 256-byte transmit, 128-byte receive FIFO
• Rack-mountable design
• COM port retention
• Extended operating temperature range: -40°C to 85°C (-40°F to 185°F)
• Durable all-metal chassis
• Low USB bandwidth consumption
• USB 2.0 compatible

Description

Convert a USB port into 16 RS232 serial ports in an industrial rack-mountable chassis - and daisy chain multiple hubs for a scalable solution

Here's an easy and cost-efficient way to add RS232 serial capability to your industrial setting. This 16-port USB-to-serial adapter hub features a sturdy, rack-mountable chassis, and supports daisy chaining, so you can connect multiple hubs together to increase your serial device port count.

A scalable solution for changing needs

This rack-mountable USB serial hub lets you add 16 serial ports (RS232), with full control from your desktop or laptop computer system using a single USB port. The daisy-chain function gives you a cost-effective and scalable way to increase your serial port count and expand as your needs grow, without investing in a higher cost serial hub.

Providing full control of your serial components from a single device, the USB serial hub is ideal for a multitude of applications including: industrial automation, self-serve automated kiosks, and monitoring of cameras and security systems.

Built-in convenience

The hub features COM port retention, which retains the assigned serial COM port values. This ensures that the same values are automatically re-assigned to the port provided by the adapter, in the event it is disconnected and re-connected to the host computer.

Meets the demands of industrial environments

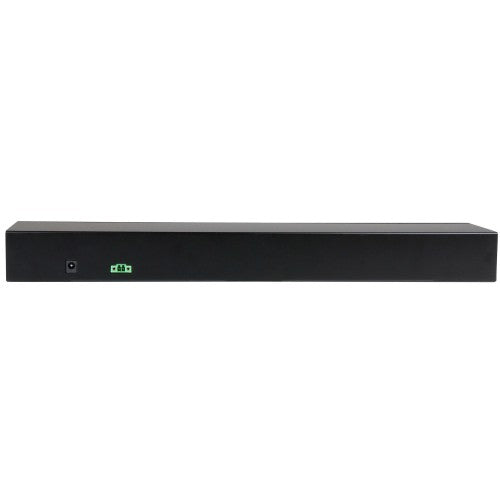

With its all-metal chassis, this rugged, rack-mountable hub fits into standard 19-inch server storage racks to provide an efficient industrial serial solution. It supports an extended operating temperature range of -40°C to 85°C (-40°F to 185°F); ensuring reliable performance even in the harshest environments. The USB-serial hub includes both an AC adapter and terminal block power, providing versatile power options.

The StarTech.com Advantage

Specifications

Ports & interfaces
Host interface	USB 2.0 Type-B
Terminal block port	Yes
Hub interfaces	Serial
RS-232 ports	16
DC-in jack	Yes
Ports quantity	16
Features
LED indicators	Yes
Product colour	Black
Data transfer rate	480 Mbit/s
Housing material	Steel
Host interface	USB 2.0 Type-B
Data transmission
Data transfer rate	480 Mbit/s
Power
Power consumption (max)	36 W
Input current	1.5 A
Power plug type	Type N
Output voltage	12 V
Output current	3 A
Input voltage	100 - 240 V
Technical details
Product colour	Black
Sustainability compliance	Yes
Compliance certificates	CE, RoHS
System requirements
Windows operating systems supported	Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 11, Windows 11 x64, Windows 2000, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 98SE, Windows CE, Windows Vista, Windows Vista Business, Windows Vista Business x64, Windows Vista Enterprise, Windows Vista Enterprise x64, Windows Vista Home Basic, Windows Vista Home Basic x64, Windows Vista Home Premium, Windows Vista Home Premium x64, Windows Vista Ultimate, Windows Vista Ultimate x64, Windows Vista x64, Windows XP, Windows XP Home, Windows XP Home x64, Windows XP Professional, Windows XP Professional x64
Mac operating systems supported	Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.6 Snow Leopard, Mac OS X 10.7 Lion, Mac OS X 10.8 Mountain Lion, Mac OS X 10.9 Mavericks, Mac OS X 11.0 Big Sur, Mac OS X 12.0 Monterey, Mac OS X 13.0 Ventura
Linux operating systems supported	Yes
Other operating systems supported	Windows XP Embedded
Server operating systems supported	Windows Server 2003, Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2, Windows Server 2016, Windows Server 2019
Weight & dimensions
Weight	3.42 lbs (1.55 kg)
Width	4.72" (120 mm)
Depth	16.9" (430 mm)
Height	1.77" (45 mm)
Package width	8.46" (215 mm)
Package depth	17.8" (451 mm)
Package height	2.4" (61 mm)
Package weight	5.09 lbs (2.31 kg)
Packaging data
Package width	8.46" (215 mm)
Package depth	17.8" (451 mm)
Package height	2.4" (61 mm)
Package weight	5.09 lbs (2.31 kg)
Performance
Data transfer rate	480 Mbit/s
Data bits	7, 8
Stop bits	1, 2
FIFO (First In, First Out)	256 B
Baud rate	921.6 Kbit/s
Mean time between failures (MTBF)	49337 h
Parity bit	Even, Mark, No, Odd, Space
Harmonized System (HS) code	84719000
Packaging content
Quick installation guide	Yes
Included power plug types	AU, EU, NA, UK
Cables included	USB
AC adapter included	Yes
Design
LED indicators	Yes
Product colour	Black
Operational conditions
Operating temperature (T-T)	-40 - 85 °C
Storage temperature (T-T)	-65 - 150 °C
Operating relative humidity (H-H)	20 - 80%
Indication
LED indicators	Yes
Sustainability
Sustainability compliance	Yes
Logistics data
Master (outer) case width	13.4" (341 mm)
Master (outer) case length	18.8" (477 mm)
Master (outer) case height	9.37" (238 mm)
Products per master (outer) case	5 pc(s)
Harmonized System (HS) code	84719000
Other features
Rack mounting	Yes
Chipset	FTDI - FT232RL
