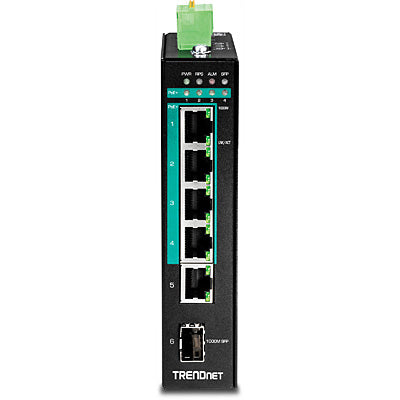

Trendnet TI-PG541i Managed L2+ Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Black
Save 0
Description

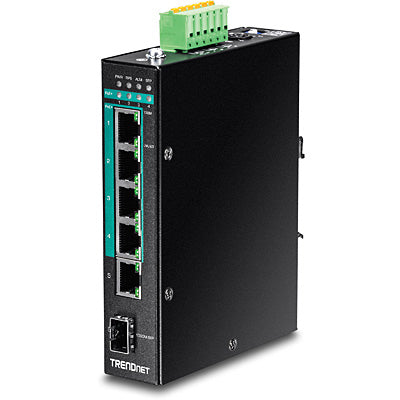

6-Port Hardened Industrial Gigabit PoE+ Layer 2 Managed DIN-Rail Switch
Industrial Hardened Design
Equipped with a rugged IP30 rated enclosure and designed to withstand a high degree of vibration, shock, protection against ESD/EMI/surge, and operate with a wide temperature range (- 40 – 70 °C (- 40 - 158 °F)) for harsh environments.
Integration Flexibility
Managed features include PoE per port control/priority/scheduling/power delay, 802.1Q/MAC-based VLAN, IGMP snooping, per port bandwidth control/802.1p/DSCP/queue scheduling, and SNMP trap/RMON/SMTP alert/syslog/port mirror for monitoring and flexible network integration.
Fault Tolerance
Features dual redundant power inputs (Primary and RPS) from external power sources and an output alarm relay to indicate the event of input power failure
Full PoE+ Power Budget
Supplies up to 30 Watts of PoE/PoE+ power per port (ports 1-4 802.3at/802.3af) with a 120 Watt PoE power budget
Network Ports and Capacity
4 x Gigabit PoE+ ports, 1 x Gigabit Port, and 1 x Gigabit SFP slot allow for a 12Gbps switching capacity
Integrated DIN-Rail Mount
IP30 rated metal enclosure with integrated DIN-rail mounting hardware
Full PoE Control Per Port
PoE control features include enabling/disabling PoE and class, power priority, PD alive check, scheduling, and power delay per port using CLI or web management.
L2 Management
Managed features include 802.1Q, /MAC-Based VLAN, IGMP v1/2/3 Snooping, per port bandwidth control/802.1p/DSCP/Queue Scheduling (SP/WFQ/WRR), and Storm Control for flexible network integration.
System Monitoring
Monitoring features include SNMPv1/v2c, MIB support, SNMP trap, RMON Groups (1, 2, 3, 9), SMTP alert, syslog, and port mirroring.

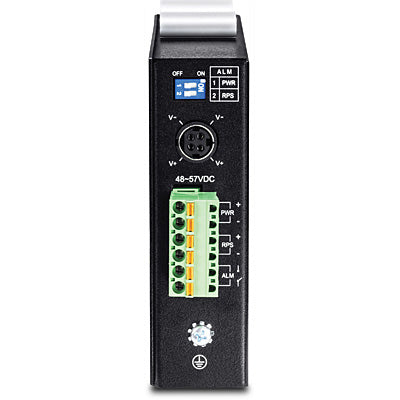

Redundant Power
Dual redundant power inputs (primary and RPS) with overload current protection
Alarm Output
Alarm relay output triggered by power failure of primary and/or redundant power (DIP switch)
Jumbo Frame
Sends larger packets, or Jumbo Frames (up to 10K)
Wide Temperature
Hardened switch is rated for an operating temperature range of - 40 to 70 °C (-40 to 158 °F)
Electro Magnetic Compliance
Complies with IEC61000-6-2 EMC generic standard immunity for industrial environments
Shock and Vibration Resistant
Rated for shock (IEC 60068-2-27), freefall (IEC 60068-2-32), and vibration (IEC 60068-2-6)
LED Indicators
LED indicators convey power, redundant power, alarm, SFP, PoE, and network port status
Grounding Point
Grounding point protects equipment from external electrical surges
Key Features
- Hardened IP30 rated metal enclosure with integrated DIN-Rail mount
- Wide operating temperature range - 40 to 70 °C (-40 to 158 °F)
- 4 x Gigabit PoE+ (802.3at) ports, 1 x Gigabit port, and 1 x Gigabit SFP slot
- 120 Watts total power budget
- Redundant power inputs and alarm relay output
- CLI (Telnet), Web (HTTP), SNMP v1 / v2c management
- 802.1Q / MAC-Based VLAN and IGMP Snooping support
- 802.1p / DSCP / Queue Scheduling (SP/WFQ/WRR) QoS support
- Supports Ethernet Ring Protection Switching (ERPsv2)
- NDAA / TAA compliant
Description
TRENDnet’s 6-Port Hardened Industrial Gigabit PoE+ Layer 2 Managed DIN-Rail Switch, model TI-PG541i, has four Gigabit PoE+ ports, one Gigabit port, one Gigabit SFP slot and a 120 Watts PoE budget. The switch is equipped with an IP30 rated metal enclosure and designed to withstand a high degree of vibration, shock, protection against ESD/EMI/surge, and operate within a wide temperature range (- 40 – 70 °C (- 40 - 158 °F)) for harsh environments. L2 management include features such as PoE port control, VLAN, multicast, and QoS which allow for network integration flexibility.Industrial Hardened Design
Equipped with a rugged IP30 rated enclosure and designed to withstand a high degree of vibration, shock, protection against ESD/EMI/surge, and operate with a wide temperature range (- 40 – 70 °C (- 40 - 158 °F)) for harsh environments.
Integration Flexibility
Managed features include PoE per port control/priority/scheduling/power delay, 802.1Q/MAC-based VLAN, IGMP snooping, per port bandwidth control/802.1p/DSCP/queue scheduling, and SNMP trap/RMON/SMTP alert/syslog/port mirror for monitoring and flexible network integration.
Fault Tolerance
Features dual redundant power inputs (Primary and RPS) from external power sources and an output alarm relay to indicate the event of input power failure
Full PoE+ Power Budget
Supplies up to 30 Watts of PoE/PoE+ power per port (ports 1-4 802.3at/802.3af) with a 120 Watt PoE power budget
Network Ports and Capacity
4 x Gigabit PoE+ ports, 1 x Gigabit Port, and 1 x Gigabit SFP slot allow for a 12Gbps switching capacity
Integrated DIN-Rail Mount
IP30 rated metal enclosure with integrated DIN-rail mounting hardware
Full PoE Control Per Port
PoE control features include enabling/disabling PoE and class, power priority, PD alive check, scheduling, and power delay per port using CLI or web management.
L2 Management
Managed features include 802.1Q, /MAC-Based VLAN, IGMP v1/2/3 Snooping, per port bandwidth control/802.1p/DSCP/Queue Scheduling (SP/WFQ/WRR), and Storm Control for flexible network integration.
System Monitoring
Monitoring features include SNMPv1/v2c, MIB support, SNMP trap, RMON Groups (1, 2, 3, 9), SMTP alert, syslog, and port mirroring.
Redundant Power
Dual redundant power inputs (primary and RPS) with overload current protection
Alarm Output
Alarm relay output triggered by power failure of primary and/or redundant power (DIP switch)
Jumbo Frame
Sends larger packets, or Jumbo Frames (up to 10K)
Wide Temperature
Hardened switch is rated for an operating temperature range of - 40 to 70 °C (-40 to 158 °F)
Electro Magnetic Compliance
Complies with IEC61000-6-2 EMC generic standard immunity for industrial environments
Shock and Vibration Resistant
Rated for shock (IEC 60068-2-27), freefall (IEC 60068-2-32), and vibration (IEC 60068-2-6)
LED Indicators
LED indicators convey power, redundant power, alarm, SFP, PoE, and network port status
Grounding Point
Grounding point protects equipment from external electrical surges
Specifications
| Management features | |
|---|---|
| ARP inspection | Yes |
| Switch type | Managed |
| Web-based management | Yes |
| System event log | Yes |
| Quality of Service (QoS) support | Yes |
| Multicast support | Yes |
| MIB support | RFC 1213, RFC 1493, RFC 1643, RFC 1757 |
| Switch layer | L2+ |
| Ports & interfaces | |
| SFP module slots quantity | 1 |
| Basic switching RJ-45 Ethernet ports quantity | 5 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Installed SFP modules quantity | 0 |
| Installed SFP+ modules quantity | 0 |
| Terminal block port | Yes |
| Network | |
| MAC address auto-learning supported | Yes |
| Networking standards | IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x |
| Full duplex | Yes |
| VLAN support | Yes |
| Port mirroring | Yes |
| Number of VLANs | 256 |
| Link aggregation | Yes |
| Broadcast storm control | Yes |
| 10G support | No |
| Virtual LAN features | Tagged VLAN, Protocol-based VLAN |
| IGMP snooping | Yes |
| Data transmission | |
| Jumbo frames | 10000 |
| Throughput | 8.93 Mpps |
| Packet buffer memory | 128 MB |
| MAC address table | 16000 entries |
| Switching capacity | 12 Gbit/s |
| Jumbo frames support | Yes |
| Multicast MAC address table | 256 entries |
| Number of VLANs | 256 |
| Security | |
| Loop protection | Yes |
| Authentication | Port-based authentication |
| Security algorithms | 802.1x RADIUS, HTTPS, SNMP |
| IGMP snooping | Yes |
| Access Control List (ACL) | Yes |
| DHCP features | DHCP server |
| Multicast features | |
| Multicast MAC address table | 256 entries |
| Multicast support | Yes |
| Design | |
| International Protection (IP) code | IP30 |
| DIN rail mounting | Yes |
| Product colour | Black |
| LED indicators | Yes |
| Rack mounting | No |
| Performance | |
| Mean time between failures (MTBF) | 435905 h |
| Packet buffer memory | 128 MB |
| Harmonized System (HS) code | 85176990 |
| Power | |
| Power consumption (max) | 130 W |
| Output voltage | 48 V |
| Output current | 5 A |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Redundant power supply (RPS) support | Yes |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) power per port | 30 W |
| Power over Ethernet plus (PoE+) ports quantity | 4 |
| Total Power over Ethernet (PoE) budget | 120 W |
| Power over Ethernet (PoE) | Yes |
| Other features | |
| Terminal block port | Yes |
| Operational conditions | |
| Operating temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Virtual LAN features | |
| VLAN support | Yes |
| Number of VLANs | 256 |
| Virtual LAN features | Tagged VLAN, Protocol-based VLAN |
| Weight & dimensions | |
| Width | 5.31" (135 mm) |
| Depth | 4.72" (120 mm) |
| Height | 1.22" (31 mm) |
| Weight | 18.6 oz (528 g) |
| Packaging content | |
| Quick start guide | Yes |
| Terminal block included | Yes |
| Resource CD | Yes |
| Packaging data | |
| Terminal block included | Yes |
| Package type | Box |
| Resource CD | Yes |
| Quick start guide | Yes |
| Technical details | |
| Product colour | Black |
| Mean time between failures (MTBF) | 435905 h |
| Rack mounting | No |
| Memory | |
| Packet buffer memory | 128 MB |
| Indication | |
| LED indicators | Yes |
| Logistics data | |
| Harmonized System (HS) code | 85176990 |
