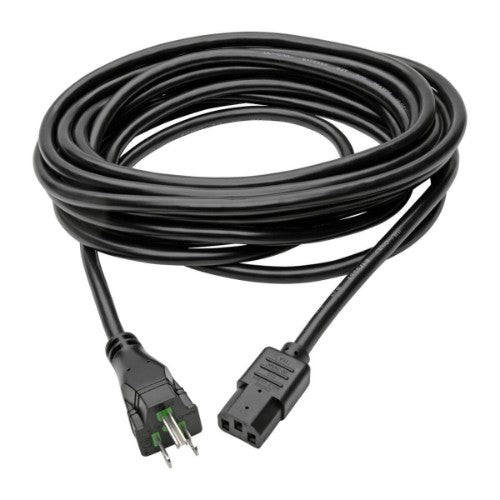

Hospital-Grade Computer Power Cord Lead Cable, 15A, 14AWG (NEMA 5-15P to IEC-320-C13), 7.62 m (25-ft.)
Description
The P006-025-HG15 Hospital-Grade Computer Power Cord features a C13 plug on one end and a NEMA 5-15P-HG plug on the other, allowing you to connect your computer or peripheral to a hospital-grade AC power outlet. It’s tested to ANSI/UL 62 and 817, as well as CAN/CSA C22.2 no. 21 and 49 standards, ensuring it’s a safe, reliable power solution for hospital environments. The C13 plug connects to computers, printers, scanners, monitors and other electronic devices with a three-pin C14 port. This 7.62 m (25-ft.) 125V/15A cord features 14 AWG wire, a flexible SJT jacket and fully molded ends for optimum performance.
- NEMA 5-15P-HG hospital-grade plug
- Connects computers and peripherals to a grounded hospital-grade AC outlet
- Ideal for replacing an old or lost cord

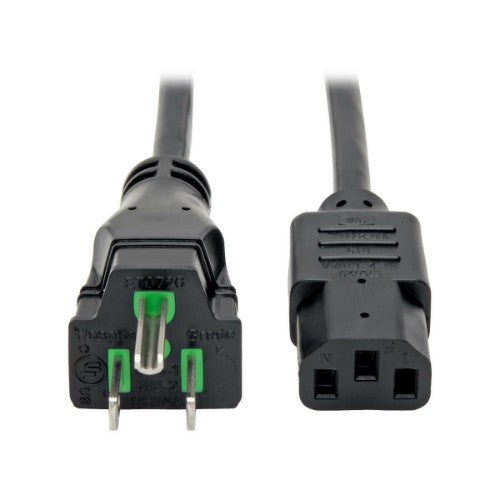

- Features C13 female connector and NEMA 5-15P-HG male connector
- Conforms to hospital-grade power cord standards
- Tested to ANSI/UL 62 and 817 and CAN/CSA C22.2 no. 21 and 49
- 14 AWG wire
- Flexible SJT jacket
- Fully molded ends
- 125V/15A rating
Specifications
| Ports & interfaces |
|---|
| Connector 2 |
C13 coupler |
| Connector 1 |
NEMA 5-15P |
| Cable length |
300" (7.62 m) |
| Features |
|---|
| Connector 1 form factor |
Straight |
| Connector 2 form factor |
Straight |
| Cable type |
SJT |
| AWG wire size |
14 |
| Connector 2 |
C13 coupler |
| Connector 1 |
NEMA 5-15P |
| Cable length |
300" (7.62 m) |
| Connector 2 gender |
Female |
| Connector 1 gender |
Male |
| Product colour |
Black |
| Power |
|---|
| Input voltage |
125 V |
| Input current |
15 A |
| Colour |
|---|
| Product colour |
Black |
| Weight & dimensions |
|---|
| Width |
11.8" (299.7 mm) |
| Depth |
0.5" (12.7 mm) |
| Height |
14.2" (359.9 mm) |
| Weight |
2.4 lbs (1.09 kg) |
| Package width |
11.8" (299.7 mm) |
| Package depth |
0.5" (12.7 mm) |
| Package height |
14.2" (359.9 mm) |
| Package weight |
2.4 lbs (1.09 kg) |
| Packaging data |
|---|
| Package width |
11.8" (299.7 mm) |
| Package depth |
0.5" (12.7 mm) |
| Package height |
14.2" (359.9 mm) |
| Package weight |
2.4 lbs (1.09 kg) |
| Technical details |
|---|
| Country of origin |
China |
| Master (outer) case GTIN (EAN/UPC) |
10037332193312 |
| Compliance certificates |
RoHS |
| Logistics data |
|---|
| Master (outer) case gross weight |
24 lbs (10.9 kg) |
| Products per master (outer) case |
10 pc(s) |
| Master (outer) case width |
25.6" (650.2 mm) |
| Master (outer) case length |
1" (25.4 mm) |
| Master (outer) case height |
17.7" (450.1 mm) |
| Other features |
|---|
| Country of origin |
China |
