Description
1D, 100 Reads/s, 86080 lx, 650 nm, IP30, 4.5-5.5 VDC

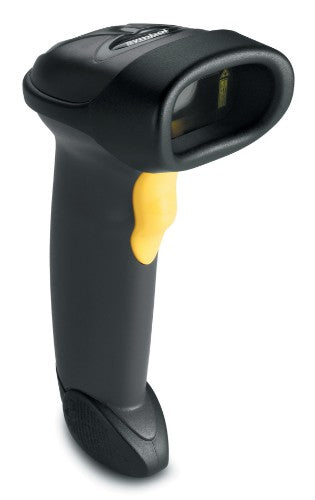

ASSEMBLY,LS2208,BLK,DECODED,MULTI, TWILIGHT BLACK
Our best selling handheld laser scanner
With over eight million sold, the LS2208 remains our best selling handheld laser scanner. The LS2208 has it all — enterprise class scanning in a very ergonomic and durable lightweight design that delivers all day comfort, an extra-long read range for easy scanning, plus support for everyday 1D bar codes, including high-density. With multiple interfaces, a universal cable and support for keyboards in 97 languages, the LS2208 delivers plug-and-play simplicity in virtually every corner of the world. The LS2208 — the well-proven scanner powering the checkout lines all around the world.
Capture high-density bar codes for greater application flexibility
With just one scanner, you can capture the high density bar codes common on small items.
Deploy in every corner of the world
With support for 97 international keyboards, the LS2208 is ready for operation in your country, right out of the box.
Class-leading working range
Workers can capture everyday 13 mil UPC bar codes on items that are over 25 in./63.5 cm away, improving productivity and the customer checkout experience.
More decode feedback options
Choose from a variety of options to indicate the successful capture of a bar code: the Direct Decode Indicator (a blinking laser line), a beep tone, a red/green LED indicator — or any combination of the three.
All day comfort your workers can count on
The well-proven ergonomic and lightweight balanced design provides maximum comfort, even in the most scan intensive environments. The result? Reduced user fatigue and increased worker productivity.
Durable construction
With its patented single board construction, patented frictionless liquid polymer scan element, scratch resistant tempered glass exit window and a stringent drop and tumble specification, the LS2208 delivers reliable all-day, every day operation.
Flexible handheld or hands-free operation
The optional Intellistand enables presentation scanning and allows workers to automatically switch between hands-free and handheld modes in the time it takes to drop the LS2208 into the stand.
Multiple interfaces
No matter what host you need to connect to today or tomorrow, the future proof LS2208 is ready.
Truly plug-and-play
The universal cable connects to any computing environment, practically eliminating setup and training time.
Advanced Data Formatting (ADF)
Format data properly before it is sent to your host computer, eliminating the costly modification of host software.
Description
LS2208-SR20007NAASSEMBLY,LS2208,BLK,DECODED,MULTI, TWILIGHT BLACK
Our best selling handheld laser scanner
With over eight million sold, the LS2208 remains our best selling handheld laser scanner. The LS2208 has it all — enterprise class scanning in a very ergonomic and durable lightweight design that delivers all day comfort, an extra-long read range for easy scanning, plus support for everyday 1D bar codes, including high-density. With multiple interfaces, a universal cable and support for keyboards in 97 languages, the LS2208 delivers plug-and-play simplicity in virtually every corner of the world. The LS2208 — the well-proven scanner powering the checkout lines all around the world.
Capture high-density bar codes for greater application flexibility
With just one scanner, you can capture the high density bar codes common on small items.
Deploy in every corner of the world
With support for 97 international keyboards, the LS2208 is ready for operation in your country, right out of the box.
Class-leading working range
Workers can capture everyday 13 mil UPC bar codes on items that are over 25 in./63.5 cm away, improving productivity and the customer checkout experience.
More decode feedback options
Choose from a variety of options to indicate the successful capture of a bar code: the Direct Decode Indicator (a blinking laser line), a beep tone, a red/green LED indicator — or any combination of the three.
All day comfort your workers can count on
The well-proven ergonomic and lightweight balanced design provides maximum comfort, even in the most scan intensive environments. The result? Reduced user fatigue and increased worker productivity.
Durable construction
With its patented single board construction, patented frictionless liquid polymer scan element, scratch resistant tempered glass exit window and a stringent drop and tumble specification, the LS2208 delivers reliable all-day, every day operation.
Flexible handheld or hands-free operation
The optional Intellistand enables presentation scanning and allows workers to automatically switch between hands-free and handheld modes in the time it takes to drop the LS2208 into the stand.
Multiple interfaces
No matter what host you need to connect to today or tomorrow, the future proof LS2208 is ready.
Truly plug-and-play
The universal cable connects to any computing environment, practically eliminating setup and training time.
Advanced Data Formatting (ADF)
Format data properly before it is sent to your host computer, eliminating the costly modification of host software.
Specifications
| Scanning | |
|---|---|
| Scanner resolution | 0.118" (3 mm) |
| Type | Handheld bar code reader |
| Linear (1D) barcodes supported | Codabar, Code 11, Code 128, Code 39 (ASCII), Code 93, GS1 DataBar, Pharmacode, Plessey, Standard 2 of 5 |
| Yaw reading angle | -60 - 60° |
| Working distance | 25" (63.5 cm) |
| Wavelength | 650 nm |
| Tilt reading angle | -10 - 10° |
| Sensor type | Laser |
| Scanner type | 1D |
| Read rate (max) | 100 reads/s |
| Pitch reading angle | -65 - 65° |
| Light levels (direct sunlight) | 0 - 86080 lx |
| Ports & interfaces | |
| Connectivity technology | Wired |
| Standard interfaces | RS-232, RS-485, Keyboard wedge, USB |
| Performance | |
| Protection features | Drop resistant, Scratch resistant |
| LED indicators | Yes |
| International Protection (IP) code | IP30 |
| Product colour | Black |
| Certification | EN 60950-1: 2006 + A11: 2009 + A1: 2010 + A12: 2011 + AC 2011; IEC 60950-1: 2005 + A1: 2009; UL 60950-1, second edition; CAN/CSA-C22.2 No. 60950-1-07 FCC 47 CFR Part 15, Subpart B, Class B; ICES-003 Issue 4, Class B; Compliant with EMC Directive 2004/108/EC CDRH Class II; IEC Class 2 |
| Light levels (direct sunlight) | 0 - 86080 lx |
| Design | |
| Type | Handheld bar code reader |
| Protection features | Drop resistant, Scratch resistant |
| LED indicators | Yes |
| International Protection (IP) code | IP30 |
| Product colour | Black |
| Certification | EN 60950-1: 2006 + A11: 2009 + A1: 2010 + A12: 2011 + AC 2011; IEC 60950-1: 2005 + A1: 2009; UL 60950-1, second edition; CAN/CSA-C22.2 No. 60950-1-07 FCC 47 CFR Part 15, Subpart B, Class B; ICES-003 Issue 4, Class B; Compliant with EMC Directive 2004/108/EC CDRH Class II; IEC Class 2 |
| Power | |
| Power consumption | 175 mA |
| Power source type | DC |
| Input voltage | 4.5 - 5.5 V |
| Weight & dimensions | |
| Width | 2.52" (64 mm) |
| Depth | 3.35" (85 mm) |
| Height | 5.98" (152 mm) |
| Weight | 5.29 oz (150 g) |
| Technical details | |
| Type | Handheld bar code reader |
| Protection features | Drop resistant, Scratch resistant |
| LED indicators | Yes |
| International Protection (IP) code | IP30 |
| Product colour | Black |
| Certification | EN 60950-1: 2006 + A11: 2009 + A1: 2010 + A12: 2011 + AC 2011; IEC 60950-1: 2005 + A1: 2009; UL 60950-1, second edition; CAN/CSA-C22.2 No. 60950-1-07 FCC 47 CFR Part 15, Subpart B, Class B; ICES-003 Issue 4, Class B; Compliant with EMC Directive 2004/108/EC CDRH Class II; IEC Class 2 |
| Compliance certificates | Federal Communications Commission (FCC), RoHS |
| Operational conditions | |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating temperature (T-T) | 0 - 50 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Drop resistance | 19.7" (0.5 m) |
| Light levels (direct sunlight) | 0 - 86080 lx |
