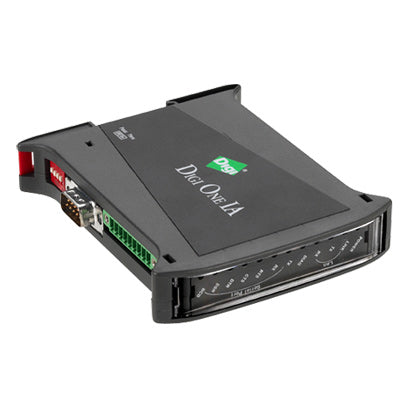

One IA - 1x RS-232/422/485, 9-30VDC, 64g
Description
Digi One IA provides reliable, cost-effective network connectivity for virtually any serial device. This unobtrusive and easy-to-use serial server delivers serial-to-Ethernet connectivity to Programmable Logic Controllers (PLCs), Remote Terminal Units (RTUs), process and quality equipment, motors, drives, bar-code readers, operator displays and other industrial devices. It is ideal for applications where TCP Socket, UDP Socket, or UDP multicast functionality is needed.
Digi One IA supports most industrial automation protocols through TCP/UDP connections, serial bridging or COM port redirection using Digi’s patented RealPort® software. RealPort enables existing applications to communicate, without modification, with serial devices over the Ethernet. By creating a Modbus bridge, multiple Modbus/TCP masters can share Modbus serial slaves, or Modbus serial masters can access Modbus/TCP slaves.
Digi One IA is easy to install locally or remotely. The IP address can be configured using DHCP, ARP-Ping or Setup, an application included with the installation CD that automatically detects Digi One devices on the network. Using the web interface, users can configure advanced functions into their application.
Specifications
| Technical details |
|---|
| Surge protection voltage |
2 kV |
| Serial ports quantity |
1 |
| Serial interface type |
RS-232/422/485 |
| Management protocols |
HTTP, DPAR |
| Isolation |
1.5 kV |
| Ethernet LAN data rates |
10,100 Mbit/s |
| Certification |
FCC |
| Ports & interfaces |
|---|
| Ethernet LAN (RJ-45) ports |
1 |
| Weight & dimensions |
|---|
| Weight |
2.26 oz (64 g) |
| Dimensions (WxDxH) |
9.06 x 4.72 x 3.98" (230 x 120 x 101 mm) |
| Power |
|---|
| Input voltage |
9 - 30 V |
| Operational conditions |
|---|
| Operating temperature (T-T) |
0 - 60 °C |
| Operating relative humidity (H-H) |
5 - 90% |
| Protocols |
|---|
| Supported network protocols |
RFC 2217, TCP/UDP, DHCP/RARP, ARP-Ping, Modbus ASCII/RTU |
| Certificates |
|---|
| Safety |
UL 60950, UL1604, EN60950, CAN/CSA C22.2 No.60950 |
| Certification |
FCC |
| Management features |
|---|
| Management protocols |
HTTP, DPAR |
| Other features |
|---|
| Compatible operating systems |
Windows 7/Vista/XP/Server 2003/Server 2008
SCO OpenServer 5/6
Solaris Intel/SPARC
Linux
HP-UX
AIX |
| Design |
|---|
| Safety |
UL 60950, UL1604, EN60950, CAN/CSA C22.2 No.60950 |
| Certification |
FCC |
