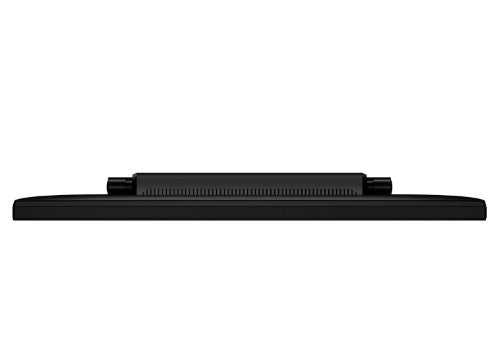

Planar Systems PCT2235 computer monitor 21.5" 1920 x 1080 pixels Full HD LCD Touchscreen Black

21.5", 1920 x 1080, 16:9, LCD, Multi-Touch, 14 ms, RMS 2x 2 W, Analog, HDMI, DisplayPort, 3.5mm, 490.3 x 299.4 x 47.8 mm, 3600 g

Description

For the best value for the money, the Planar® PCT2235 is a 22” Full HD LCD monitor optimized with multi-touch interactivity. With its easy to adjust, ergonomically-friendly Planar® Helium™ Stand and multiple video inputs, this versatile monitor accommodates all user expectations.

Multi-Touch Technology

The Planar PCT2235 22” Full HD monitor with multi-touch interactivity is the best value for the money. Featuring Projected Capacitive touch technology which registers up to 10 simultaneous touch points, the monitor is extremely fast and accurate for the office worker when scanning through emails, or for the graphic designer when swiping through various design alternatives or resizing photos.

Blue Light Reduction

Blue light has a short wavelength and produces a higher amount of energy. Studies have shown that prolonged exposure to blue light could damage your eyes. The Planar PCT2235 incorporates blue light reduction presets. Varying blue light levels depending on the activity enhances visual comfort when viewing the screen for extended periods of time.

Planar Helium Stand

The Planar Helium Stand can be easily tilted from 15° to 70° - quickly moving the user from passive viewing to full touch screen interaction. For the mobile worker desiring to dock their tablet to larger display when manipulating spreadsheets, or for the college student scrolling through social media updates, the versatile stand accommodates all usage scenarios. For added flexibility, the stand can be collapsed into the back of the monitor and laid flat for tabletop usage, for example, in a museum environment to further explain an exhibit.

Multiple Video Inputs

For more integration flexibility, the Planar PCT2235 multi-touch monitor boasts multiple video inputs – DisplayPort, HDMI and VGA - and integrated speakers. And the VESA-compatible hole pattern on the back of the monitor makes it easy to attach to other mounting option, such as a Planar single-arm clamp stand or a height-adjust desk stand.

Specifications

Display
HDCP	Yes
Screen shape	Flat
Display number of colours	16.78 million colors
Maximum refresh rate	60 Hz
HD type	Full HD
Display technology	LCD
Contrast ratio (typical)	1000:1
Viewing angle, horizontal	178°
Viewing angle, vertical	178°
Pixel pitch	0.00977 x 0.00977" (0.248 x 0.248 mm)
Aspect ratio	16:9
Backlight type	Edge LED
Display resolution	1920 x 1080 pixels
Response time	14 ms
Display diagonal	21.5"
Touchscreen	Yes
Number of simultaneous touchpoints	10
Touch technology	Multi-touch
Touchscreen technology	Projected capacitive system
LED backlight	Yes
Display brightness	212 cd/m²
Audio
Built-in speaker(s)	Yes
RMS rated power	4 W
Performance
Built-in speaker(s)	Yes
RMS rated power	4 W
Built-in microphone	No
Built-in camera	No
AMD FreeSync	No
NVIDIA G-SYNC	No
Windows operating systems supported	Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 Pro, Windows 10 Pro x64, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64
OmniTapps Multitouch compatibility	No
Multimedia
Number of speakers	2
Built-in speaker(s)	Yes
RMS rated power	4 W
Built-in microphone	No
Built-in camera	No
Design
Certification	UL/c-UL, FCC B, CE, RoHS II
Product colour	Black
Camera
Built-in camera	No
Ports & interfaces
USB upstream port type	USB Type-B
Number of upstream ports	1
VGA (D-Sub) ports quantity	1
HDMI ports quantity	1
DisplayPorts quantity	1
HDCP	Yes
PC Audio in	Yes
HDMI	Yes
Technical details
Height (without stand)	11.8" (299.4 mm)
Depth (without stand)	1.88" (47.8 mm)
Width (without stand)	19.3" (490.3 mm)
Cable lock slot	Yes
HDMI	Yes
Built-in microphone	No
Product colour	Black
Power supply type	AC
Touchscreen	Yes
Number of simultaneous touchpoints	10
Software
Windows operating systems supported	Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 Pro, Windows 10 Pro x64, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64
Ergonomics
Wall mountable	Yes
VESA mounting	Yes
Cable lock slot	Yes
Panel mounting interface	100 x 100 mm
Tilt angle range	15 - 70°
Tilt adjustment	Yes
Power
Power supply type	AC
AC input voltage	100-240 V
AC input frequency	50 - 60 Hz
Power consumption (standby)	0.5 W
Power consumption (typical)	27 W
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Packaging content
Quick start guide	Yes
Cables included	AC, Audio (3.5mm), DisplayPort, USB, VGA
Weight & dimensions
Height (without stand)	11.8" (299.4 mm)
Depth (without stand)	1.88" (47.8 mm)
Width (without stand)	19.3" (490.3 mm)
Weight (without stand)	7.94 lbs (3.6 kg)
Package weight	10.1 lbs (4.6 kg)
Packaging data
Package weight	10.1 lbs (4.6 kg)
Quick start guide	Yes
Cables included	AC, Audio (3.5mm), DisplayPort, USB, VGA
Other features
Height (without stand)	11.8" (299.4 mm)
Depth (without stand)	1.88" (47.8 mm)
Width (without stand)	19.3" (490.3 mm)
Quick start guide	Yes
HDMI	Yes
Power supply type	AC
Touchscreen	Yes
Number of simultaneous touchpoints	10
Full HD	Yes
Certificates
Certification	UL/c-UL, FCC B, CE, RoHS II
