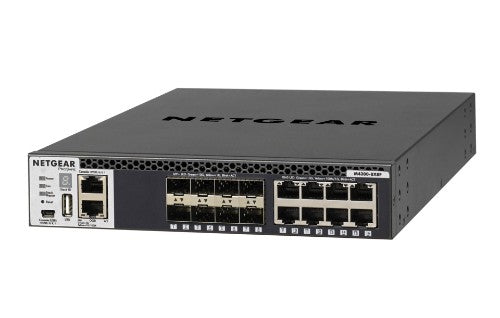

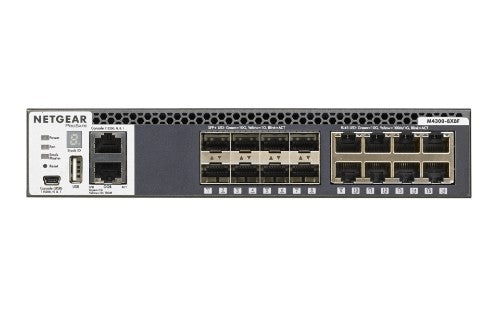

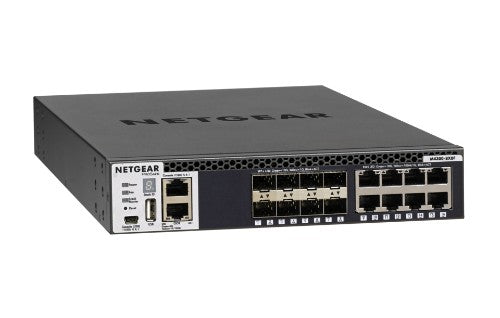

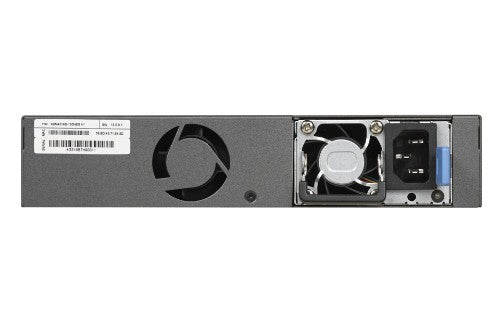

NETGEAR M4300-8X8F Managed L3 10G Ethernet (100/1000/10000) 1U Black

320 Gbps, 10/100/1000/10000, 1U, L3

Description

The NETGEAR M4300 Stackable Switch Series delivers L2/L3/L4 and IPv4/IPv6 cost-effective services for mid-enterprise edge with full PoE+ and SMB core deployments with unrivalled ease of use: 10 Gigabit models can seamlessly stack with 1 Gigabit models within the series, enabling spine and leaf line-rate stacking topologies. Non-stop forwarding (NSF) virtual chassis architectures provide advanced High Availability (HA) with hitless failover across the stack. Dual redundant, modular power supplies equipping full width models contribute to business continuity management. Layer 3 feature set includes static, dynamic and policy-based routing – as standard. Perfect for wireless access, unified communications and IP video, the NETGEAR M4300 Switch Series is also ready for the future, with Software-defined Network (SDN) and OpenFlow 1.3 enabled for your network.

Best-in-class stacking

- M4300 is flexible enough for mixed stacking between 10 Gigabit and 1 Gigabit models, using any 10G port with any media type (RJ45, SFP+, DAC cables)
- High-availability is another key differentiator for stackable solutions: in case of a master switch failure, NSF and hitless failover ensure the standby switch takes over while forwarding plane continues to forward traffic on the operational stack members without any service interruption

Higher flexibility

- Two half-width M4300 switches can be paired in a single rack space for redundant Top of Rack installations with Auto-iSCSI prioritization
- 10 Gigabit ports are all independent and 1G backward compatible for progressive transition to 10G speeds

Lower complexity

- Entire feature set including L2 switching (multi-tiered access control) and L3 routing (static, RIP, OSPF, VRRP, PIM, PBR) is available without license
- DHCP/BootP innovative auto-installation including firmware and configuration file upload automation

Investment protection

- Line-rate spine and leaf stacking topologies offer multiple possibilities in server rooms, in branch collapsed cores or at the edge of growing networks
- Even if an organization is not ready for SDN, OpenFlow support offers future-ready design for maximum investment protection

Secure services

- With successive tiering, the Authentication Manager allows for authentication methods per port for a tiered authentication based on configured time-outs
- With BYOD, tiered Dot1x -> MAB -> Captive Portal authentication is powerful and simple to implement with strict policies

Industry standard management

- Industry standard command line interface (CLI), functional NETGEAR web interface (GUI), SNMP, sFlow and RSPAN
- Single-pane-of-glass NMS300 management platform with centralized firmware updates and mass-configuration support

Industry leading warranty

- NETGEAR M4300 series is covered under NETGEAR ProSafe Lifetime Hardware Warranty
- 90 days of Technical Support via phone and email, Lifetime Technical Support through online chat and Lifetime Next Business Day hardware replacement

Specifications

Management features
Multicast support	Yes
ARP inspection	Yes
Switch type	Managed
Web-based management	Yes
Quality of Service (QoS) support	Yes
Switch layer	L3
Virtual LAN features
VLAN support	Yes
Virtual LAN features	Private VLAN
Data transmission
Number of multicast groups filtered	4000
Jumbo frames	9000
Number of static routes	64
MAC address table	16000 entries
Switching capacity	320 Gbit/s
Store-and-forward	Yes
Jumbo frames support	Yes
Forwarding rate	357 Mpps
Optical fiber
Fiber optic connector	SFP+
Fiber ethernet cabling technology	10GBASE-LR, 10GBASE-LRM, 10GBASE-SR
Performance
Stackable	Yes
Auto-negotiation	Yes
Processor frequency	800 MHz
Noise level	36.9 dB
Mean time between failures (MTBF)	196120 h
Internal memory	1024 MB
Flash memory	256 MB
Built-in processor	Yes
Harmonized System (HS) code	85176990
Technical details
Form factor	1U
Product colour	Black
Stackable	Yes
Processor frequency	800 MHz
Noise level	36.9 dB
Mean time between failures (MTBF)	196120 h
Rack mounting	Yes
Built-in processor	Yes
Ports & interfaces
SFP+ module slots quantity	8
Basic switching RJ-45 Ethernet ports quantity	8
Basic switching RJ-45 Ethernet ports type	10G Ethernet (100/1000/10000)
USB 2.0 ports quantity	1
Fiber optic connector	SFP+
Console port	RJ-45/Mini-USB
Network
Cable types supported	Cat5, Cat5e, Cat6, Cat7
Auto-sensing	Yes
Networking standards	IEEE 802.11ad, IEEE 802.11az, IEEE 802.3ad, IEEE 802.3az
VLAN support	Yes
Spanning tree protocol	Yes
Rate limiting	Yes
Port mirroring	Yes
Link aggregation	Yes
IP routing	Yes
Flow control support	Yes
Auto MDI/MDI-X	Yes
10G support	Yes
Auto-negotiation	Yes
Virtual LAN features	Private VLAN
Security
BPDU filtering/protection	Yes
SSH/SSL support	Yes
Security algorithms	HTTPS, SNMP, SSH
Access Control List (ACL)	Yes
DHCP features	DHCP server, DHCP client
Multicast features
Number of multicast groups filtered	4000
Multicast support	Yes
Certificates
Safety	CSA 22.2 #950, UL 1950)/cUL IEC 950/EN 60950
Electromagnetic compatibility	CE, FCC 15 A, VCCI A, A EN 55022, (CISPR 22) A, EN 50082-1, EN 55024
Memory
Internal memory	1024 MB
Flash memory	256 MB
Design
Safety	CSA 22.2 #950, UL 1950)/cUL IEC 950/EN 60950
Form factor	1U
Product colour	Black
Stackable	Yes
LED indicators	Activity, Power, Speed
Electromagnetic compatibility	CE, FCC 15 A, VCCI A, A EN 55022, (CISPR 22) A, EN 50082-1, EN 55024
Rack mounting	Yes
Indication
LED indicators	Activity, Power, Speed
Power
Power consumption (max)	49 W
Power supply included	Yes
AC input voltage	120 - 230 V
Number of power supply units	1
Power over Ethernet (PoE)
Power over Ethernet (PoE)	No
Operational conditions
Storage temperature (T-T)	-20 - 70 °C
Storage relative humidity (H-H)	0 - 95%
Operating temperature (T-T)	0 - 50 °C
Operating relative humidity (H-H)	0 - 90%
Operating altitude	0 - 118110.2" (0 - 3000 m)
Non-operating altitude	0 - 118110.2" (0 - 3000 m)
Heat dissipation	18577 BTU/h
Weight & dimensions
Width	8.35" (212 mm)
Depth	13.6" (345 mm)
Height	1.73" (44 mm)
Weight	7.32 lbs (3.32 kg)
Packaging data
Rubber feet	Yes
Rack mount kit	Yes
Resource CD	Yes
User guide	Yes
Cables included	AC, LAN (RJ-45), Mini-USB
Logistics data
Harmonized System (HS) code	85176990
Packaging content
Rubber feet	Yes
Rack mount kit	Yes
Resource CD	Yes
User guide	Yes
Cables included	AC, LAN (RJ-45), Mini-USB
