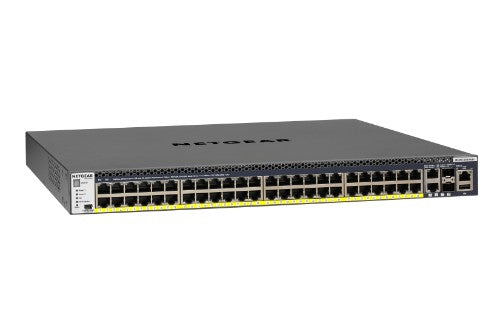

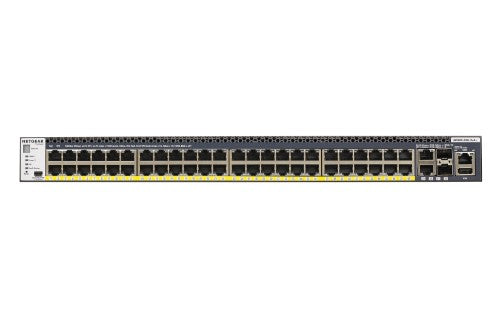

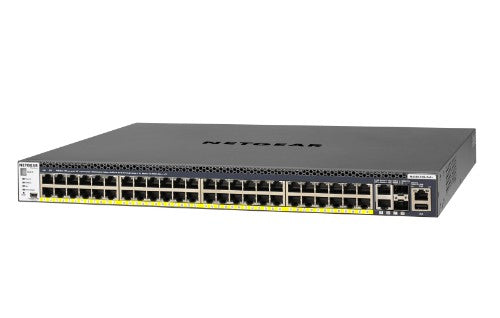

NETGEAR M4300-52G-PoE+ 1000W PSU Managed L2/L3/L4 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 1U Black
Save 0
Description
52 GB POE+, L3, PoE+, 10/100/1000/10000, 176 Gbps
Best-in-class stacking
- M4300 is flexible enough for mixed stacking between 10 Gigabit and 1 Gigabit models, using any 10G port with any media type (RJ45, SFP+, DAC cables)
- High-availability is another key differentiator for stackable solutions: in case of a master switch failure, NSF and hitless failover ensure the standby switch takes over while forwarding plane continues to forward traffic on the operational stack members without any service interruption
Higher flexibility
- Two half-width M4300 switches can be paired in a single rack space for redundant Top of Rack installations with Auto-iSCSI prioritization
- 10 Gigabit ports are all independent and 1G backward compatible for progressive transition to 10G speeds
Lower complexity
- Entire feature set including L2 switching (multi-tiered access control) and L3 routing (static, RIP, OSPF, VRRP, PIM, PBR) is available without license
- DHCP/BootP innovative auto-installation including firmware and configuration file upload automation
Investment protection
- Line-rate spine and leaf stacking topologies offer multiple possibilities in server rooms, in branch collapsed cores or at the edge of growing networks
- Even if an organization is not ready for SDN, OpenFlow support offers future-ready design for maximum investment protection
Secure services
- With successive tiering, the Authentication Manager allows for authentication methods per port for a tiered authentication based on configured time-outs
- With BYOD, tiered Dot1x -> MAB -> Captive Portal authentication is powerful and simple to implement with strict policies
Industry standard management
- Industry standard command line interface (CLI), functional NETGEAR web interface (GUI), SNMP, sFlow and RSPAN
- Single-pane-of-glass NMS300 management platform with centralized firmware updates and mass-configuration support
Industry leading warranty
- NETGEAR M4300 series is covered under NETGEAR ProSafe Lifetime Hardware Warranty
- 90 days of Technical Support via phone and email, Lifetime Technical Support through online chat and Lifetime Next Business Day hardware replacement
Description
The NETGEAR M4300 Stackable Switch Series delivers L2/L3/L4 and IPv4/IPv6 cost-effective services for mid-enterprise edge with full PoE+ and SMB core deployments with unrivalled ease of use: 10 Gigabit models can seamlessly stack with 1 Gigabit models within the series, enabling spine and leaf line-rate stacking topologies. Non-stop forwarding (NSF) virtual chassis architectures provide advanced High Availability (HA) with hitless failover across the stack. Dual redundant, modular power supplies equipping full width models contribute to business continuity management. Layer 3 feature set includes static, dynamic and policy-based routing – as standard. Perfect for wireless access, unified communications and IP video, the NETGEAR M4300 Switch Series is also ready for the future, with Software-defined Network (SDN) and OpenFlow 1.3 enabled for your network.Best-in-class stacking
- M4300 is flexible enough for mixed stacking between 10 Gigabit and 1 Gigabit models, using any 10G port with any media type (RJ45, SFP+, DAC cables)
- High-availability is another key differentiator for stackable solutions: in case of a master switch failure, NSF and hitless failover ensure the standby switch takes over while forwarding plane continues to forward traffic on the operational stack members without any service interruption
Higher flexibility
- Two half-width M4300 switches can be paired in a single rack space for redundant Top of Rack installations with Auto-iSCSI prioritization
- 10 Gigabit ports are all independent and 1G backward compatible for progressive transition to 10G speeds
Lower complexity
- Entire feature set including L2 switching (multi-tiered access control) and L3 routing (static, RIP, OSPF, VRRP, PIM, PBR) is available without license
- DHCP/BootP innovative auto-installation including firmware and configuration file upload automation
Investment protection
- Line-rate spine and leaf stacking topologies offer multiple possibilities in server rooms, in branch collapsed cores or at the edge of growing networks
- Even if an organization is not ready for SDN, OpenFlow support offers future-ready design for maximum investment protection
Secure services
- With successive tiering, the Authentication Manager allows for authentication methods per port for a tiered authentication based on configured time-outs
- With BYOD, tiered Dot1x -> MAB -> Captive Portal authentication is powerful and simple to implement with strict policies
Industry standard management
- Industry standard command line interface (CLI), functional NETGEAR web interface (GUI), SNMP, sFlow and RSPAN
- Single-pane-of-glass NMS300 management platform with centralized firmware updates and mass-configuration support
Industry leading warranty
- NETGEAR M4300 series is covered under NETGEAR ProSafe Lifetime Hardware Warranty
- 90 days of Technical Support via phone and email, Lifetime Technical Support through online chat and Lifetime Next Business Day hardware replacement
Specifications
| Management features | |
|---|---|
| Multicast support | Yes |
| ARP inspection | Yes |
| Switch type | Managed |
| Web-based management | Yes |
| Quality of Service (QoS) support | Yes |
| Switch layer | L2/L3/L4 |
| Network | |
| IGMP snooping | Yes |
| Cable types supported | Cat5, Cat5e, Cat6, Cat7, Fiber |
| Auto-sensing | Yes |
| Networking standards | IEEE 802.11ad, IEEE 802.11az, IEEE 802.3ad, IEEE 802.3az |
| VLAN support | Yes |
| Spanning tree protocol | Yes |
| Rate limiting | Yes |
| Port mirroring | Yes |
| Number of VLANs | 4000 |
| Link aggregation | Yes |
| IP routing | Yes |
| Flow control support | Yes |
| Auto MDI/MDI-X | Yes |
| 10G support | Yes |
| Auto-negotiation | Yes |
| Virtual LAN features | Private VLAN |
| Virtual LAN features | |
| VLAN support | Yes |
| Number of VLANs | 4000 |
| Virtual LAN features | Private VLAN |
| Data transmission | |
| Number of multicast groups filtered | 4000 |
| Number of VLANs | 4000 |
| Jumbo frames | 9000 |
| Number of static routes | 64 |
| Packet buffer memory | 16 MB |
| MAC address table | 16000 entries |
| Switching capacity | 176 Gbit/s |
| Store-and-forward | Yes |
| Jumbo frames support | Yes |
| Forwarding rate | 357 Mpps |
| Optical fiber | |
| Fiber optic connector | SFP+ |
| Fiber ethernet cabling technology | 10GBASE-LR, 10GBASE-LRM, 10GBASE-SR |
| Performance | |
| Packet buffer memory | 16 MB |
| Stackable | Yes |
| Auto-negotiation | Yes |
| Processor frequency | 800 MHz |
| Noise level | 39.8 dB |
| Mean time between failures (MTBF) | 673207 h |
| Internal memory | 1024 MB |
| Flash memory | 256 MB |
| Built-in processor | Yes |
| Harmonized System (HS) code | 85176990 |
| Technical details | |
| Form factor | 1U |
| Product colour | Black |
| Stackable | Yes |
| Processor frequency | 800 MHz |
| Noise level | 39.8 dB |
| Mean time between failures (MTBF) | 673207 h |
| Rack mounting | Yes |
| Built-in processor | Yes |
| Ports & interfaces | |
| SFP+ module slots quantity | 2 |
| Basic switching RJ-45 Ethernet ports quantity | 48 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| USB 2.0 ports quantity | 1 |
| Fiber optic connector | SFP+ |
| Console port | RJ-45/Mini-USB |
| Security | |
| BPDU filtering/protection | Yes |
| SSH/SSL support | Yes |
| Security algorithms | HTTPS, SNMP, SSH |
| IGMP snooping | Yes |
| Access Control List (ACL) | Yes |
| DHCP features | DHCP server, DHCP client |
| Multicast features | |
| Number of multicast groups filtered | 4000 |
| Multicast support | Yes |
| Certificates | |
| Safety | CSA 22.2 #950, UL 1950)/cUL IEC 950/EN 60950 |
| Electromagnetic compatibility | CE, FCC 15 A, VCCI A, A EN 55022, (CISPR 22) A, EN 50082-1, EN 55024 |
| Memory | |
| Packet buffer memory | 16 MB |
| Internal memory | 1024 MB |
| Flash memory | 256 MB |
| Design | |
| Safety | CSA 22.2 #950, UL 1950)/cUL IEC 950/EN 60950 |
| Form factor | 1U |
| Product colour | Black |
| Stackable | Yes |
| LED indicators | Activity, Power, Speed |
| Electromagnetic compatibility | CE, FCC 15 A, VCCI A, A EN 55022, (CISPR 22) A, EN 50082-1, EN 55024 |
| Rack mounting | Yes |
| Indication | |
| LED indicators | Activity, Power, Speed |
| Power | |
| Power consumption (max) | 888 W |
| Power supply included | Yes |
| AC input voltage | 120 - 230 V |
| Redundant power supply (RPS) support | Yes |
| Number of power supply units | 1 |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) power per port | 30 W |
| Power over Ethernet plus (PoE+) ports quantity | 48 |
| Total Power over Ethernet (PoE) budget | 591 W |
| Power over Ethernet (PoE) | Yes |
| Operational conditions | |
| Storage temperature (T-T) | -20 - 70 °C |
| Storage relative humidity (H-H) | 0 - 95% |
| Operating temperature (T-T) | 0 - 50 °C |
| Operating relative humidity (H-H) | 0 - 90% |
| Operating altitude | 0 - 118110.2" (0 - 3000 m) |
| Non-operating altitude | 0 - 118110.2" (0 - 3000 m) |
| Heat dissipation | 303163 BTU/h |
| Weight & dimensions | |
| Width | 17.3" (440 mm) |
| Depth | 15.3" (388 mm) |
| Height | 1.73" (44 mm) |
| Weight | 14.7 lbs (6.67 kg) |
| Packaging data | |
| Rubber feet | Yes |
| Rack mount kit | Yes |
| Resource CD | Yes |
| User guide | Yes |
| Cables included | AC, LAN (RJ-45), Mini-USB |
| Logistics data | |
| Harmonized System (HS) code | 85176990 |
| Packaging content | |
| Rubber feet | Yes |
| Rack mount kit | Yes |
| Resource CD | Yes |
| User guide | Yes |
| Cables included | AC, LAN (RJ-45), Mini-USB |
