SmartRack 6U Low-Profile Switch-Depth-Plus Wall-Mount Mini Rack Enclosure
Key Features
- Maximum load capacity of 200 lbs (90.7 kgs)
- Locking steel cabinet vented at sides, front, top and bottom
- Flow-through ventilation keeps equipment cool
- Secures 6U of 19 in. rack equipment up to 20.5 in. deep
- Mounts to wall or rolls on floor (with optional SRCASTER)
Description

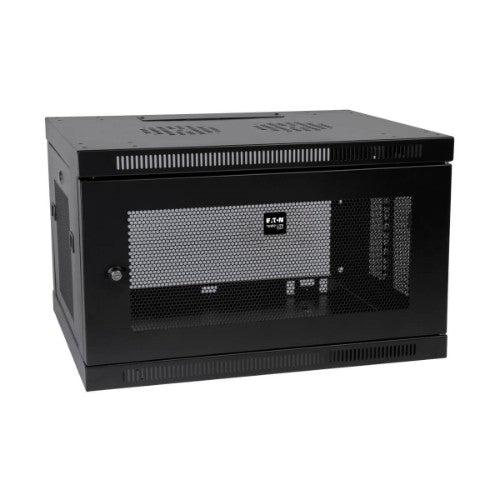

The SRW6UDP SmartRack® 6U Low-Profile Switch-Depth-Plus Wall-Mount Rack Enclosure Cabinet is designed to house EIA-standard 19-inch rack equipment in network wiring closets, retail locations, classrooms, back offices and other areas with limited floor space where you need equipment to be secure, organized and out of the way. Constructed from heavy-duty steel with a durable black powder-coated finish, the cabinet has a maximum load capacity of 200 pounds (90.7 kilograms).

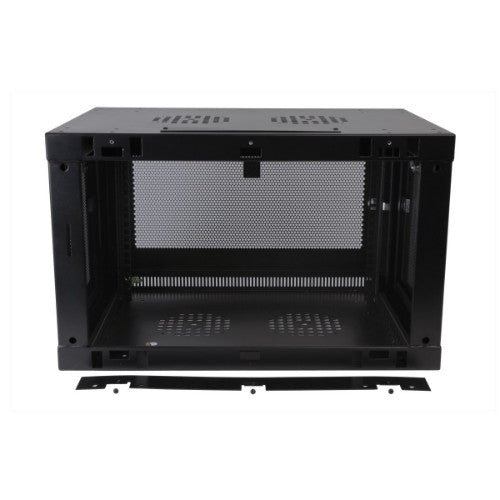

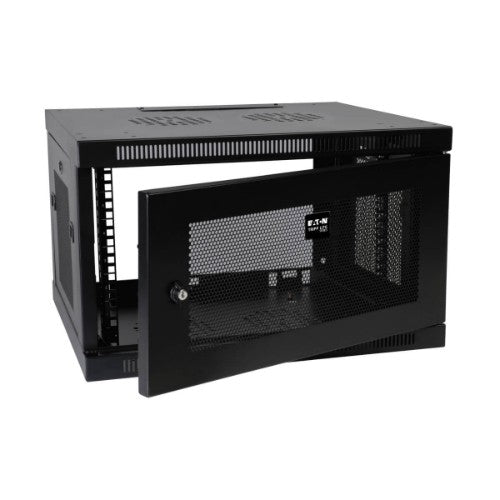

The side panels and front door lock securely to help prevent damage, tampering or theft. The front, top, bottom and removable side panels are vented, which allows air to flow freely and keep equipment cool. The reversible front door can open left or right by rotating the cabinet 180° before mounting. Convenient top and bottom ports allow easy cable routing.

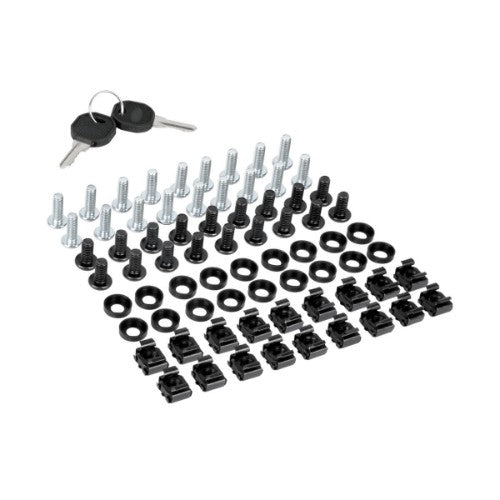

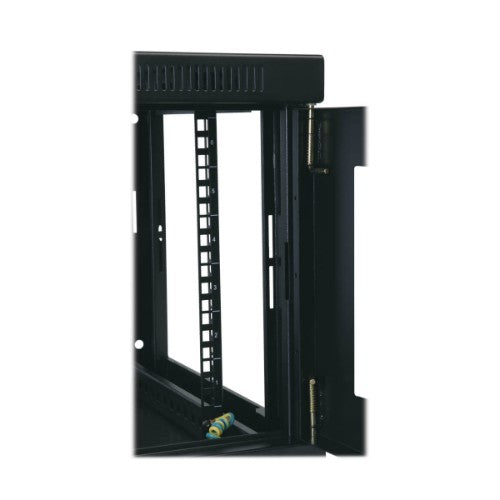

The SRW6UDP comes fully assembled and ready to mount to the wall, or use an optional SRCASTER rolling caster kit to make it a mobile rack. Square and 12-24 threaded mounting holes and numbered rack spaces make equipment installation easy. The vertical mounting rails adjust in 7/8-inch increments to accommodate equipment up to 20.5 inches deep, such as network switches and patch panels.
Specifications
| Features |
|---|
| Size (imperial) |
19" |
| Key lock |
Yes |
| Frame type |
Closed |
| Rack capacity |
6U |
| Type |
Wall mounted rack |
| Maximum weight capacity |
200 lbs (90.7 kg) |
| Material |
Steel |
| Product colour |
Black |
| Weight & dimensions |
|---|
| Package depth |
30" (762 mm) |
| Package width |
27" (685.8 mm) |
| Package height |
20" (508 mm) |
| Package weight |
44.1 lbs (20 kg) |
| Width |
23.6" (599.9 mm) |
| Depth |
21.7" (551.4 mm) |
| Height |
14.6" (370.1 mm) |
| Weight |
44.1 lbs (20 kg) |
| Size (imperial) |
19" |
| Maximum weight capacity |
200 lbs (90.7 kg) |
| Packaging content |
|---|
| Wall mounting kit |
Yes |
| Manual |
Yes |
| Mounting kit |
Yes |
| Packaging data |
|---|
| Wall mounting kit |
Yes |
| Manual |
Yes |
| Mounting kit |
Yes |
| Package depth |
30" (762 mm) |
| Package width |
27" (685.8 mm) |
| Package height |
20" (508 mm) |
| Package weight |
44.1 lbs (20 kg) |
| Technical details |
|---|
| Package width |
27" (685.8 mm) |
| Package height |
20" (508 mm) |
| Type |
Wall mounted rack |
| Size (imperial) |
19" |
| Harmonized System (HS) code |
8517.79.0000 |
| Rack capacity |
6U |
| Colour |
|---|
| Product colour |
Black |
| Material |
|---|
| Material |
Steel |
| Logistics data |
|---|
| Master (outer) case width |
27" (685.8 mm) |
| Master (outer) case length |
30" (762 mm) |
| Master (outer) case height |
20" (508 mm) |
| Master (outer) case gross weight |
48.5 lbs (22 kg) |
| Products per master (outer) case |
1 pc(s) |
| Country of origin |
China |
| Harmonized System (HS) code |
8517.79.0000 |
