1.92kW, 1,92kVA, 120V, 50/60Hz, USB, LED, 530J, 480x683x86mm, 42.31kg, Black
Description

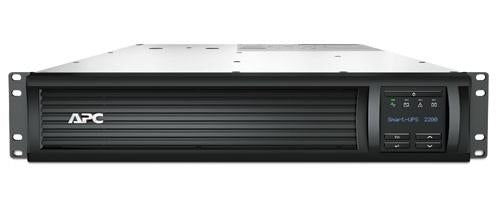

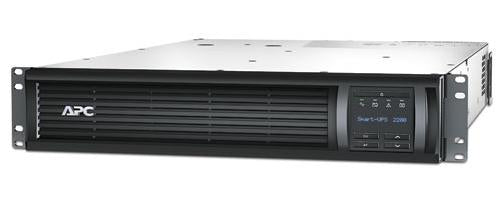

APC Smart-UPS 2200VA LCD RM 2U 120V with L5-20PReliable network power protection designed for deployment in retail and open access environments.
Includes : CD with software , Documentation CD , Rack Mounting brackets , Rack Mounting support rails , Smart UPS signalling RS-232 cable , USB cable
- Cold-start capable
Provides temporary battery power when the utility power is out.
- Energy meter
Provides actual kilowatt hours of usage for energy conscious users.
- Green mode
Patent-pending operating mode that bypasses unused electrical components in good power conditions to achieve very high operating efficiency without sacrificing any protection.
- High online efficiency
Reduces utlility costs, generates less heat.
- Intuitive LCD interface
Provides clear and accurate information in multiple languages with the ability to configure the UPS locally with easy to use navigation keys.
- Predictive replace battery date
Dynamically provides the month and year when battery replacement is recommended to aide in long term maintenance planning.
- Pure sine wave output on battery
Simulates utility power to provide the highest degree of compatibility for active PFC (power factor corrected) servers and sensitive electronics.
- Sequenced network shutdown and reboot
Customize network shutdown and reboot sequence of connected servers and UPSs.
- Single switched outlet group
Single outlet group that may be controlled separately from the UPS for discrete reboot of hung devices, sequenced on/off and non-critical load shedding.
- SmartSlot
Customize UPS capabilities with management cards.
- StruxureWare Data Center Expert compatible
Enables centralized management via StruxureWare Data Center Expert.
- Temperature-compensated battery charging
Prolongs battery life by regulating the charge voltage according to battery temperature.
Specifications
| Power |
|---|
| Output frequency |
50/60 Hz |
| Output power |
1920 W |
| Input operation voltage (min) |
75 V |
| Input operation voltage (max) |
154 V |
| Output operation voltage (max) |
120 V |
| Surge energy rating |
530 J |
| Emergency Power Off (EPO) |
Yes |
| Output voltage Total Harmonic Distortion (THD) |
5% |
| Output power capacity |
1.92 kVA |
| Input frequency |
50/60 Hz |
| Ports & interfaces |
|---|
| Cable length |
96.1" (2.44 m) |
| USB port |
Yes |
| SmartSlot |
Yes |

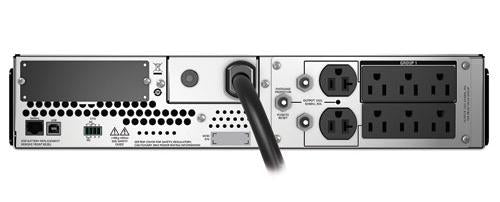

| AC outlets quantity |
8 AC outlet(s) |
| AC outlet types |
NEMA 5–15R, NEMA 5–20R |
| Power plug |
NEMA L5-20P |
| Performance |
|---|
| Audible alarm modes |
Low battery alarm, Overload alarm |
| UPS topology |
Line-Interactive |
| Waveform |
Sine |
| Auto-restart |
Yes |
| Response time |
8 ms |
| LED indicators |
Status |
| Surge protection |
Yes |
| Noise level |
55 dB |
| Audible alarm(s) |
Yes |
| Features |
|---|
| Output frequency |
50/60 Hz |
| Audible alarm modes |
Low battery alarm, Overload alarm |
| UPS topology |
Line-Interactive |
| Waveform |
Sine |
| Auto-restart |
Yes |
| Response time |
8 ms |
| Output power |
1920 W |
| Input operation voltage (min) |
75 V |
| Input operation voltage (max) |
154 V |
| Output operation voltage (max) |
120 V |
| Surge energy rating |
530 J |
| Surge protection |
Yes |
| Emergency Power Off (EPO) |
Yes |
| Output voltage Total Harmonic Distortion (THD) |
5% |
| Noise level |
55 dB |
| Audible alarm(s) |
Yes |
| Output power capacity |
1.92 kVA |
| Input frequency |
50/60 Hz |
| Battery |
|---|
| Battery life (max) |
5 year(s) |
| Battery capacity |
494 VAh |
| Battery technology |
Sealed Lead Acid (VRLA) |
| Battery recharge time |
3 h |
| Hot-swap battery |
Yes |
| Cold start |
Yes |
| Automatic battery test |
Yes |
| Design |
|---|
| Rack capacity |
2U |
| Form factor |
Rackmount |
| LED indicators |
Status |
| Product colour |
Black |
| Certification |
CSA, FCC Part 15 Class A, UL 1778, REACH |
| Cable length |
96.1" (2.44 m) |
| Display type |
LCD |
| Operational conditions |
|---|
| Operating temperature (T-T) |
0 - 40 °C |
| Storage temperature (T-T) |
-15 - 45 °C |
| Operating relative humidity (H-H) |
0 - 95% |
| Storage relative humidity (H-H) |
0 - 95% |
| Operating altitude |
0 - 118110.2" (0 - 3000 m) |
| Non-operating altitude |
0 - 590551.2" (0 - 15000 m) |
| Technical details |
|---|
| Output frequency |
50/60 Hz |
| Sustainability certificates |
ENERGY STAR |
| Compliance certificates |
RoHS |
| Certificates |
|---|
| Certification |
CSA, FCC Part 15 Class A, UL 1778, REACH |
| Compliance certificates |
RoHS |
| Packaging content |
|---|
| Rack mount kit |
Yes |
| Cables included |
RS-232, USB cable |
| Resource CD |
Yes |
| Bracket |
Yes |
| Software CD |
Yes |
| Sustainability |
|---|
| Sustainability certificates |
ENERGY STAR |
| Weight & dimensions |
|---|
| Package width |
23.6" (600 mm) |
| Package depth |
38.6" (980 mm) |
| Package height |
10" (254 mm) |
| Weight |
93.3 lbs (42.3 kg) |
| Width |
18.9" (480 mm) |
| Package weight |
109.6 lbs (49.7 kg) |
| Height |
3.39" (86 mm) |
| Depth |
26.9" (683 mm) |
| Packaging data |
|---|
| Resource CD |
Yes |
| Rack mount kit |
Yes |
| Cables included |
RS-232, USB cable |
| Bracket |
Yes |
| Software CD |
Yes |
| Package width |
23.6" (600 mm) |
| Package depth |
38.6" (980 mm) |
| Package height |
10" (254 mm) |
| Package weight |
109.6 lbs (49.7 kg) |
| Logistics data |
|---|
| Products per pallet |
8 pc(s) |
