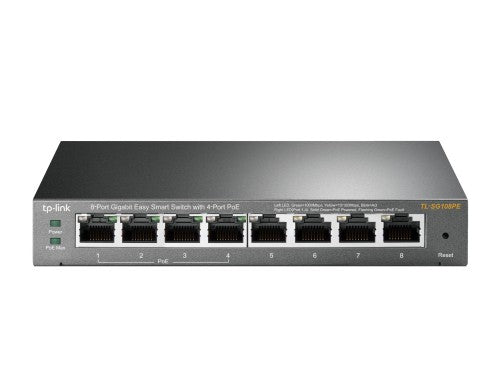

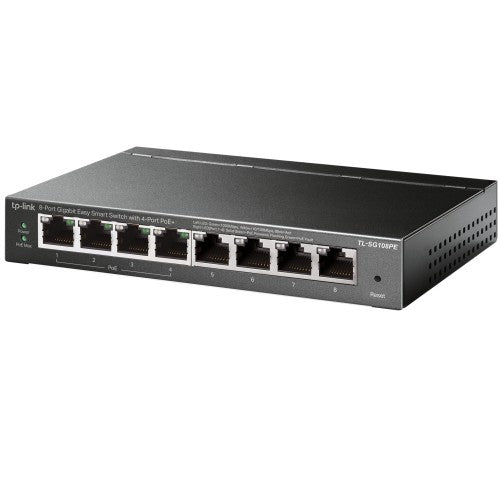

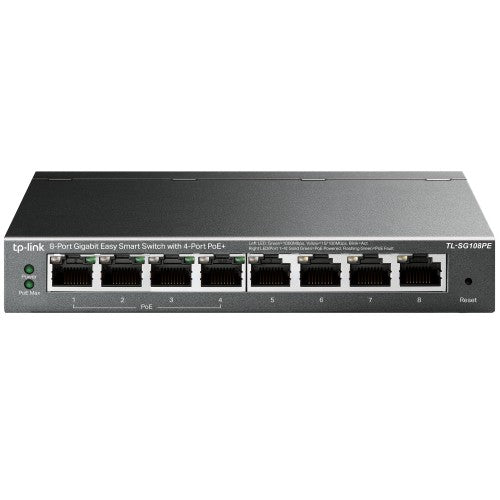

TP-Link TL-SG108PE network switch Managed L2 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Black

8-Port, 10/100/1000Mbps RJ45 Ports, IEEE 802.3i/u/ab/af/x/q/p

Key Features

• Eight 10/100/1000Mbps RJ45 ports
• Equipped with four 802.3af/at PoE+ ports with up to 30W for each port, data and power can be transferred on one single cable
• Supports PoE power up to 64W for all PoE ports
• Provides network monitoring, traffic prioritization, VLAN features, and PoE Auto Recovery
• Simple network set-up on top of plug-and-play connectivity
• Web-based user interface and Easy Smart Configuration Utility simplify configuration

Description

he TL-SG108PE is an 8-port Gigabit Easy Smart Switch with 4 PoE ports, represents a powerful upgrade from an unmanaged switch. It is designed specically for small businesses that require simple network management and PoE function. The TL-SG108PE can connect and power up to four PoE devices, such as wireless access points (APs), IP cameras, and IP phones. Through its web-based user interface and management utility, the TL-SG108PE offers a variety of useful features, including network monitoring, trafc prioritization, and enhanced QoS. Additionally, with port-based, tag-based and MTU VLAN, TL-SG108PE can improve security and meet more network segmentation requirements.
Power Over Ethernet

4 of the 8 Auto-Negotiation RJ45 ports (port 1 to port 4) of the switch support Power over Ethernet (PoE) function. These PoE ports can automatically detect and supply power with those IEEE 802.3af compliant Powered Devices (PDs).
Effective Management

TL-SG108PE offers network monitoring for users to observe trafc behavior. Through its web-based user interface and management utility, the TL-SG108PE offers a variety of useful features, including network monitoring, trafc prioritization, and enhanced QoS. With Port Mirroring, Loop Prevention and Cable Diagnostics features, TL-SG108PE can identify and even locate connection problems on your business network. Moreover, administrators can designate the priority of the trafc based on Port Priority, 802.1P Priority and DSCP Priority, to ensure that voice and video are always clear, smooth and lag-free. Additionally, to improve security and network performance, TL-SG108PE supports MTU VLAN, port-based VLAN and 802.1Q-based VLAN functions. TL-SG108PE is an upgrade from the plug-and-play Unmanaged Switch, delivering great value while empowering your network and similarly delivering great value to the end user.
Easy to Use

TL-SG108PE is easy to use and manage. Auto MDI/MDI-X crossover on all ports eliminate the need for crossover cables or uplink ports. Auto-negotiation on each port senses the link speed of a network device (either 10, 100, or 1000 Mbps) and intelligently adjusts for compatibility and optimal performance. Its compact size makes it ideal for desktops with limited space while also being Rack-mountable, convenient and safe. Dynamic LED lights provide real-time work status display and basic fault diagnosis.

Specifications

Management features
Switch type	Managed
Switch layer	L2
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity	8
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Installed SFP modules quantity	0
Installed SFP+ modules quantity	0
Network
Networking standards	IEEE 802.1Q, IEEE 802.1p, IEEE 802.3ab, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x
VLAN support	Yes
Rate limiting	Yes
Port mirroring	Yes
Number of VLANs	32
Link aggregation	Yes
Broadcast storm control	Yes
10G support	No
IGMP snooping	Yes
Data transmission
Packet forwarding rate (1 Gbps)	11900000 pps
Jumbo frames	15000
Packet buffer memory	1.5 MB
MAC address table	4000 entries
Switching capacity	16 Gbit/s
Store-and-forward	Yes
Jumbo frames support	Yes
Number of VLANs	32
Security
Loop protection	Yes
IGMP snooping	Yes
Design
Product colour	Black
LED indicators	Activity, Link, PoE, Power, Speed, Status
Rack mounting	No
Certification	FCC, CE, RoHS
Power
Power consumption (max)	65.2 W
Power supply included	Yes
AC input voltage	220 V
AC input frequency	50 Hz
Input current	1.25 A
Power over Ethernet (PoE)
Power over Ethernet plus (PoE+) ports quantity	4
Total Power over Ethernet (PoE) budget	55 W
Power over Ethernet (PoE) ports quantity	4
Power over Ethernet (PoE)	Yes
Operational conditions
Storage temperature (T-T)	-40 - 70 °C
Storage relative humidity (H-H)	5 - 95%
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	10 - 90%
Virtual LAN features
VLAN support	Yes
Number of VLANs	32
Weight & dimensions
Width	6.22" (158 mm)
Depth	3.98" (101 mm)
Height	0.984" (25 mm)
Packaging content
User guide	Yes
Cables included	AC
Packaging data
Package type	Box
User guide	Yes
Cables included	AC
Performance
Packet buffer memory	1.5 MB
Harmonized System (HS) code	85176990
Technical details
Product colour	Black
Rack mounting	No
Memory
Packet buffer memory	1.5 MB
Certificates
Certification	FCC, CE, RoHS
Indication
LED indicators	Activity, Link, PoE, Power, Speed, Status
Logistics data
Harmonized System (HS) code	85176990
