1000BASE-LX/LH Long Wavelength; Rugged
Description

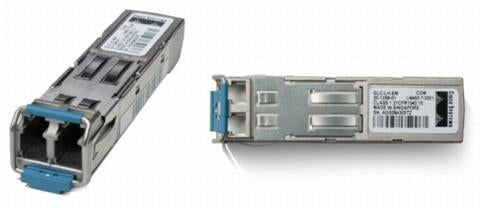

The industry-standard Cisco® Small Form-Factor Pluggable (SFP) Gigabit Interface Converter is a hot-swappable input/output device that plugs into a Gigabit Ethernet port or slot, linking the port with the network (Figure 1). SFPs can be used and interchanged on a wide variety of Cisco products and can be intermixed in combinations of 1000BASE-SX, 1000BASE-LX/LH, 1000BASE-ZX, or 1000BASE-BX10-D/U on a port-by-port basis.
1000BASE-LX/LH SFP for Both Multimode and Single-Mode FibersThe 100BASE-LX/LH SFP, compatible with the IEEE 802.3z 1000BASE-LX standard, operates on standard single-mode fiber-optic link spans of up to 10 km and up to 550 m on any multimode fibers.
Specifications
| Performance |
|---|
| Maximum data transfer rate |
1000 Mbit/s |
| Fiber optic connector |
LC, PC |
| Maximum transfer distance |
393700.8" (10000 m) |
| Wavelength |
1310 nm |
| Cabling technology |
100BASE-LX/LH |
| Maximum transfer distance (Single-mode) |
393700.8" (10000 m) |
| Maximum transfer distance (Multi-mode) |
21653.5" (550 m) |
| Harmonized System (HS) code |
85369010 |
| Operational conditions |
|---|
| Operating temperature (T-T) |
-40 - 85 °C |
| Storage temperature (T-T) |
-40 - 85 °C |
| Network |
|---|
| Maximum data transfer rate |
1000 Mbit/s |
| Fiber optic connector |
LC, PC |
| Cabling technology |
100BASE-LX/LH |
| Weight & dimensions |
|---|
| Weight |
2.65 oz (75 g) |
| Other features |
|---|
| Transmit power range |
-3 - -9.5 dBmW |
| Dimensions (WxDxH) |
0.528 x 2.22 x 0.335" (13.4 x 56.5 x 8.5 mm) |
| Logistics data |
|---|
| Harmonized System (HS) code |
85369010 |
