SmartRack 4U Low-Profile Vertical-Mount Server-Depth Wall-Mount Rack Enclosure Cabinet
Key Features
- Maximum load capacity of 150 lbs (68 kgs)
- Locking steel cabinet vented to keep equipment cool
- Secures 4U of 19 in. rack equipment up to 36 in. deep
- Includes additional 2U of space for patch panels
- Ships fully assembled for quick installation
Description
The SRWF4U36 SmartRack 4U Low-Profile Vertical-Mount Server-Depth Wall-Mount Rack Enclosure Cabinet is designed to house EIA-standard 19-inch rack equipment in network wiring closets, retail locations, classrooms, back offices and other areas with limited floor space where you need equipment to be secure, organized and out of the way. Constructed from heavy-duty steel with a durable black powder-coated finish, the cabinet has a maximum load capacity of 150 lbs (68 kgs).

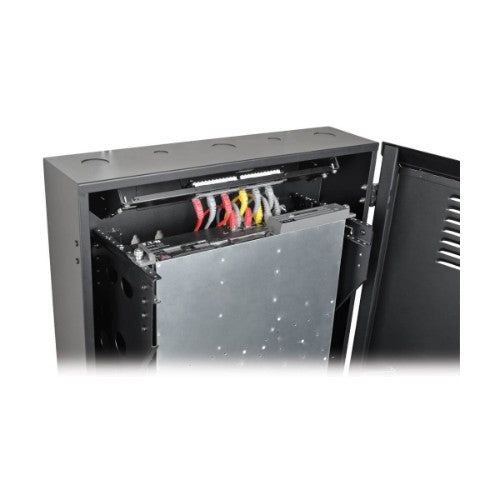

Because the low-profile cabinet mounts vertically, it extends only eight inches from the wall while housing equipment up to 36 inches deep, including 1U servers, UPS systems, battery packs and switches. In addition to 4U of rack space in the primary mounting area, it also includes a slide-out 2U mounting bracket at the top of the enclosure for patch panels up to 2.5 inches deep.

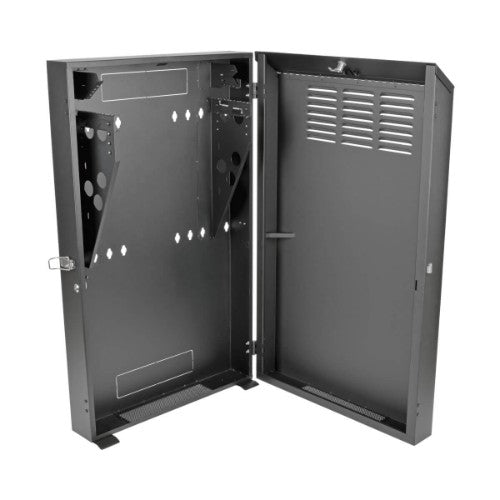

The top panel and front door lock securely to help prevent damage, tampering or theft. The cabinet is vented, which allows air to flow freely and keep equipment cool. The reversible front door can open left or right. Convenient top and bottom ports allow easy cable routing.
The SRWF4U36 comes fully assembled and ready to mount to the wall. Equipment installation is easy with threaded mounting holes and hardware that support M6 or 12-24 mounting.
Specifications
| Weight & dimensions |
|---|
| Package depth |
13.4" (340.4 mm) |
| Package width |
31.1" (789.9 mm) |
| Package height |
13.4" (340.4 mm) |
| Package weight |
73 lbs (33.1 kg) |
| Width |
25.6" (650.2 mm) |
| Depth |
8" (203.2 mm) |
| Height |
43" (1092.2 mm) |
| Weight |
66.1 lbs (30 kg) |
| Maximum weight capacity |
149.9 lbs (68 kg) |
| Packaging content |
|---|
| Wall mounting kit |
Yes |
| Manual |
Yes |
| Features |
|---|
| Key lock |
Yes |
| Rack capacity |
4U |
| Type |
Wall mounted rack |
| Maximum weight capacity |
149.9 lbs (68 kg) |
| Material |
Steel |
| Product colour |
Black |
| Certification |
EIA-310-E, RoHS |
| Packaging data |
|---|
| Wall mounting kit |
Yes |
| Manual |
Yes |
| Package depth |
13.4" (340.4 mm) |
| Package width |
31.1" (789.9 mm) |
| Package height |
13.4" (340.4 mm) |
| Package weight |
73 lbs (33.1 kg) |
| Technical details |
|---|
| Package width |
31.1" (789.9 mm) |
| Package height |
13.4" (340.4 mm) |
| Type |
Wall mounted rack |
| Harmonized System (HS) code |
8517.79.0000 |
| Rack capacity |
4U |
| Colour |
|---|
| Product colour |
Black |
| Certificates |
|---|
| Certification |
EIA-310-E, RoHS |
| Material |
|---|
| Material |
Steel |
| Logistics data |
|---|
| Master (outer) case width |
31.1" (789.9 mm) |
| Master (outer) case length |
13.4" (340.4 mm) |
| Master (outer) case height |
13.4" (340.4 mm) |
| Master (outer) case gross weight |
73.2 lbs (33.2 kg) |
| Products per master (outer) case |
1 pc(s) |
| Country of origin |
China |
| Harmonized System (HS) code |
8517.79.0000 |
