SmartRack 15U Low-Profile Switch-Depth Wall-Mount Half-Height Rack Enclosure, Clear Acrylic Window, Hinged Back
Key Features
- Maximum load capacity of 200 lbs (90.7 kgs)
- Swings away from wall bracket on a hinge for easy access
- Front door includes shatter-resistant clear acrylic window
- Locking steel cabinet vented at sides, top and bottom
- Secures 15U of 19 in. rack equipment up to 20.5 in. deep
Description
The SRW15USG SmartRack 15U Low-Profile Switch-Depth Wall-Mount Rack Enclosure Cabinet is ideal for storing EIA-standard 19-inch rack equipment in network closets and other areas with limited floor space where you need equipment to be secure, organized and out of the way. Constructed from heavy-duty steel with a durable black powder-coated finish, the cabinet has a maximum load capacity of 200 lbs (90.7 kgs).

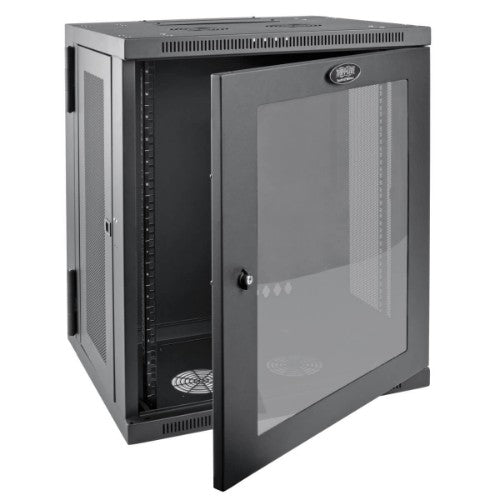

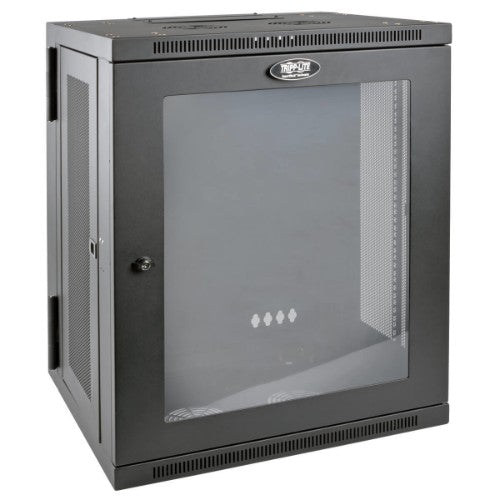

The front door features a shatter-resistant clear acrylic window that lets you monitor equipment readouts without unlocking the enclosure. Not only does the window help prevent equipment tampering and reduce acoustic noise, but it also adds visual flair to your IT installation.

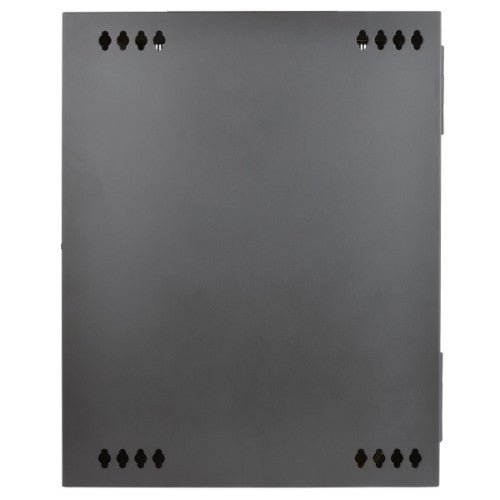

The cabinet swings away from the wall on a sturdy hinge, allowing easy access to equipment and cabling during installation and maintenance. To ensure your valuable equipment stays secure, the doors and side panels lock. The top, bottom and removable side panels are vented, which allows air to flow freely through the rack to keep equipment cool. The reversible doors can open left or right by rotating the cabinet 180° before mounting. Convenient top and bottom ports allow easy cable routing through the cabinet.

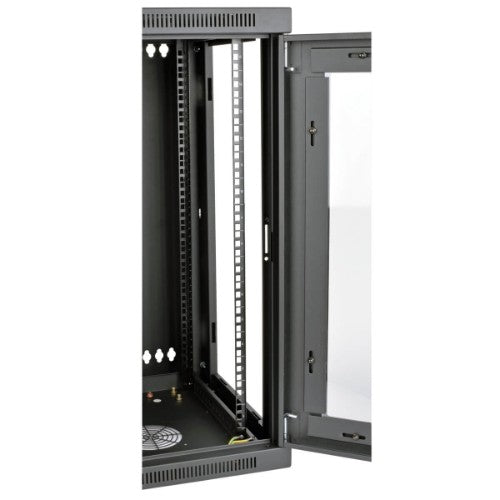

The SRW15USG comes fully assembled and ready to mount to the wall. Square and 12-24 threaded mounting holes and numbered rack spaces make equipment installation easy. The vertical mounting rails adjust in 7/8-inch increments to house equipment up to 20.5 inches deep, such as network switches and patch panels.
Specifications
| Weight & dimensions |
|---|
| Package depth |
26.4" (670.1 mm) |
| Package width |
33.1" (840 mm) |
| Package height |
24.1" (612.1 mm) |
| Package weight |
75 lbs (34 kg) |
| Width |
23.6" (599.9 mm) |
| Depth |
21.6" (548.6 mm) |
| Height |
30.3" (770.4 mm) |
| Weight |
75 lbs (34 kg) |
| Maximum weight capacity |
200.6 lbs (91 kg) |

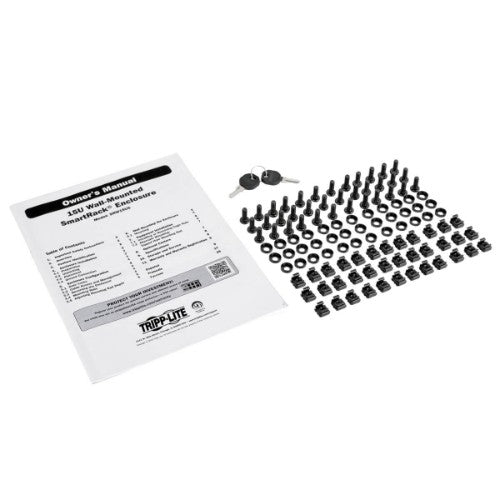

| Packaging content |
|---|
| Manual |
Yes |
| Mounting kit |
Yes |
| Features |
|---|
| Rack capacity |
15U |
| Type |
Wall mounted rack |
| Maximum weight capacity |
200.6 lbs (91 kg) |
| Cooling type |
Passive |
| Product colour |
Black |
| Packaging data |
|---|
| Manual |
Yes |
| Mounting kit |
Yes |
| Package depth |
26.4" (670.1 mm) |
| Package width |
33.1" (840 mm) |
| Package height |
24.1" (612.1 mm) |
| Package weight |
75 lbs (34 kg) |
| Technical details |
|---|
| Package width |
33.1" (840 mm) |
| Package height |
24.1" (612.1 mm) |
| Type |
Wall mounted rack |
| Cooling type |
Passive |
| Harmonized System (HS) code |
8517.79.0000 |
| Rack capacity |
15U |
| Colour |
|---|
| Product colour |
Black |
| Logistics data |
|---|
| Master (outer) case width |
33.1" (840 mm) |
| Master (outer) case length |
26.4" (670.1 mm) |
| Master (outer) case height |
24.1" (612.1 mm) |
| Master (outer) case gross weight |
75 lbs (34 kg) |
| Products per master (outer) case |
1 pc(s) |
| Country of origin |
China |
| Harmonized System (HS) code |
8517.79.0000 |
