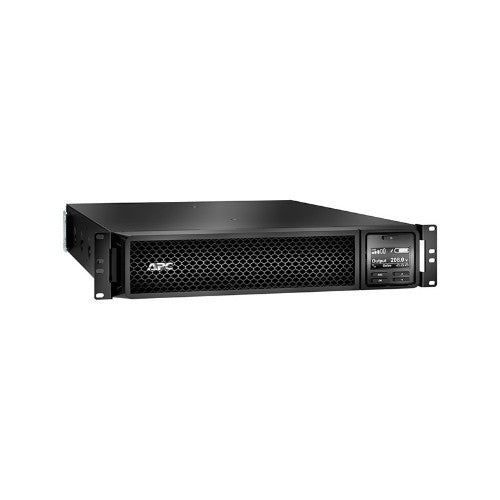

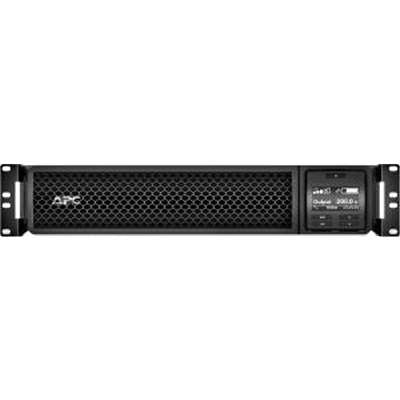

UPS Rack mountable, 2.7 kW/3.0 kVA, AC 240/208V, LCD, Bypass, RJ-45, USB, 6 ft, 2U, Black.
Description
- Low operating and maintenance costs with proven reliability and intelligent battery management.
- Avoids costly power problems by keeping your IT equipment and data protected and available.
- Peace of mind that comes with full equipment compatibility and reliability of a leader
- Save time with easy and convenient remote accessibility.
Specifications
| Power |
|---|
| Output frequency |
50/60 Hz |
| Output power |
2700 W |
| Input operation voltage (min) |
100 V |
| Input operation voltage (max) |
275 V |
| Output operation voltage (min) |
208 V |
| Output operation voltage (max) |
240 V |
| Surge energy rating |
340 J |
| Efficiency |
92.7% |
| Emergency Power Off (EPO) |
Yes |
| Output voltage Total Harmonic Distortion (THD) |
2% |
| Crest factor |
3:1 |
| Output power capacity |
3 kVA |
| Input frequency |
40 - 70 Hz |
| Ports & interfaces |
|---|
| Cable length |
71.7" (1.82 m) |
| AC outlets quantity |
3 AC outlet(s) |
| AC outlet types |
NEMA L6-20R, NEMA L6-30R |
| Power plug |
NEMA L6-20P |
| USB 2.0 ports quantity |
3 |
| Ethernet LAN (RJ-45) ports |
3 |
| Performance |
|---|
| UPS topology |
Double-conversion (Online) |
| Waveform |
Sine |
| Auto-restart |
Yes |
| Automatic Voltage Regulation (AVR) |
Yes |
| LED indicators |
Battery replacement |
| Surge protection |
Yes |
| Power protection features |
Overload |
| Noise level |
55 dB |
| Audible alarm(s) |
Yes |
| Features |
|---|
| Output frequency |
50/60 Hz |
| UPS topology |
Double-conversion (Online) |
| Waveform |
Sine |
| Auto-restart |
Yes |
| Automatic Voltage Regulation (AVR) |
Yes |
| Output power |
2700 W |
| Input operation voltage (min) |
100 V |
| Input operation voltage (max) |
275 V |
| Output operation voltage (min) |
208 V |
| Output operation voltage (max) |
240 V |
| Surge energy rating |
340 J |
| Efficiency |
92.7% |
| Surge protection |
Yes |
| Emergency Power Off (EPO) |
Yes |
| Power protection features |
Overload |
| Output voltage Total Harmonic Distortion (THD) |
2% |
| Noise level |
55 dB |
| Crest factor |
3:1 |
| Audible alarm(s) |
Yes |
| Output power capacity |
3 kVA |
| Input frequency |
40 - 70 Hz |
| Battery |
|---|
| Battery capacity |
497 Ah |
| Battery technology |
Sealed Lead Acid (VRLA) |
| Battery recharge time |
3 h |
| Typical backup time at half load |
9 min |
| Typical backup time at full load |
4 min |
| Hot-swap battery |
Yes |
| Cold start |
Yes |
| Automatic battery test |
Yes |
| Design |
|---|
| International Protection (IP) code |
IP20 |
| Rack capacity |
2U |
| Form factor |
Rackmount/Tower |
| LED indicators |
Battery replacement |
| Product colour |
Black |
| Cable length |
71.7" (1.82 m) |
| Housing material |
Steel |
| Display type |
LCD |
| Operational conditions |
|---|
| Operating temperature (T-T) |
0 - 40 °C |
| Operating relative humidity (H-H) |
0 - 95% |
| Operating altitude |
0 - 118110.2" (0 - 3000 m) |
| Technical details |
|---|
| Output frequency |
50/60 Hz |
| Sustainability certificates |
ENERGY STAR |
| Compliance certificates |
RoHS |
| Weight & dimensions |
|---|
| Package width |
23.6" (599 mm) |
| Package depth |
34.3" (871 mm) |
| Package height |
9.69" (246 mm) |
| Weight |
69 lbs (31.3 kg) |
| Width |
17" (432 mm) |
| Package weight |
88 lbs (39.9 kg) |
| Height |
3.35" (85 mm) |
| Depth |
25" (635 mm) |
| Packaging data |
|---|
| Quick installation guide |
Yes |
| Package width |
23.6" (599 mm) |
| Package depth |
34.3" (871 mm) |
| Package height |
9.69" (246 mm) |
| Package weight |
88 lbs (39.9 kg) |
| Logistics data |
|---|
| Products per pallet |
6 pc(s) |
| Packaging content |
|---|
| Quick installation guide |
Yes |
