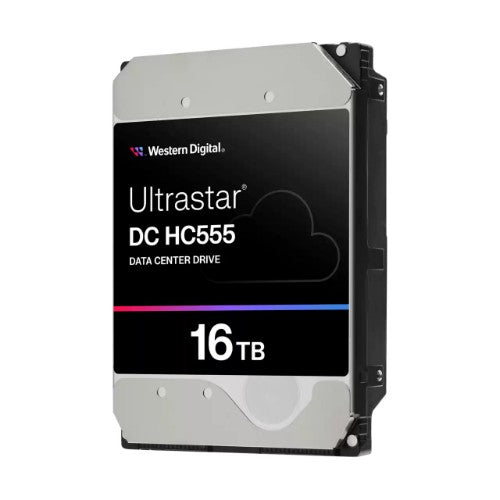

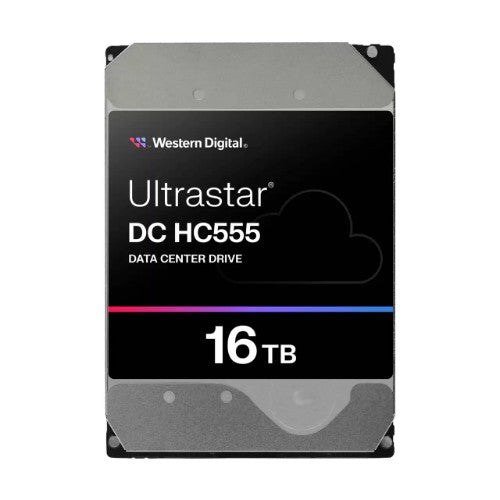

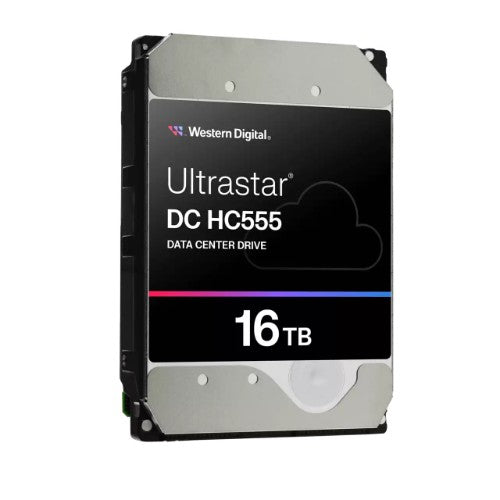

Western Digital Ultrastar DC HC555 internal hard drive 16 TB 7200 RPM 512 MB 3.5" Serial ATA III

3.5", 16 TB, SATA, 7200 RPM, 512 MB, 269 MB/s, EAMR, SED

Key Features

• Capacities up to 20TB in standard 3.5-inch form factor
• Conventional Magnetic Recording (CMR) technology
• Superior reliability of field-proven hardware and firmware designs
• Seamless integration with existing applications & environments

Description

Engineered to handle high-intensity workloads with proven technology

Ultrastar Data Center HC555 hard drives are engineered to deliver the large capacity, strong performance and proven reliability needed to handle high-intensity workloads in 24×7 multi-user data center environments.

Handle Data Center Workloads with Proven Technology
The combination of field-proven hardware with the latest innovative technologies delivers the performance, capacity and reliability needed to handle high-intensity workloads in 24×7 multi-user data center environments.

Grow Capacity while Lowering Costs
Western Digital’s energy-assisted perpendicular magnetic recording (ePMR) technology enables customers to grow capacities while lowering TCO (total cost of ownership) including both $/TB and OpEx.

Rapid qualification and integration
Leveraging hardware designs from generations of highly successful products ensures easy qualification, seamless integration and rapid adoption by existing customers.

Reliability You Can Trust
Built off the same platform that is deployed in thousands of data centers around the world, these drives deliver superior dependability and field-proven reliability for hassle free data storage.

Increase Density with Low Power
Western Digital’s Triple-Stage Actuator (TSA) increases tracks-per-inch (TPI) while providing greater control over the actuator arm, enabling the highest capacities with low power.

Meet Eco Goals with Helium
The stable internal environment created by our HelioSeal® technology enables this high-capacity helium drive to deliver one of the lowest power profiles in the industry.

Protected Against Vibration & Shock
Disturbances caused by increased vibration are anticipated and proactively counteracted by Rotation Vibration (RV) sensors and subtle shock events are automatically detected by multi-axis shock sensors and compensated for with dynamic fly height technology to maintain performance and protect data.

Trusted Reliability, Quality and World-Class Support
As an industry-leading hard drive manufacturer, Western Digital stands behind their Ultrastar hard drives with the assurance of a projected 2.5M-hour MTBF rating.

Specifications

Certificates
Certification	BSMI, ICES-003/NMB-003, CE, FCC, KC, Maghreb, RCM, UKCA, VCCI, CB-Scheme, TUV, UL
Hard drive
Component for	Server/workstation
HDD sustained transfer rate	257 MiB/s
HDD interface transfer rate	6 Gbit/s
HDD average transfer rate	269 MB/s
Average latency	4.16 ms
Mean time between failures (MTBF)	2500000 h
Start/stop cycles	600000
Hot-swap	No
Certification	BSMI, ICES-003/NMB-003, CE, FCC, KC, Maghreb, RCM, UKCA, VCCI, CB-Scheme, TUV, UL
HDD speed	7200 RPM
HDD size	3.5"
HDD capacity	16 TB
Features
Type	HDD
Component for	Server/workstation
HDD sustained transfer rate	257 MiB/s
HDD interface transfer rate	6 Gbit/s
HDD average transfer rate	269 MB/s
Interface	Serial ATA III
Average latency	4.16 ms
Mean time between failures (MTBF)	2500000 h
Start/stop cycles	600000
Hot-swap	No
Certification	BSMI, ICES-003/NMB-003, CE, FCC, KC, Maghreb, RCM, UKCA, VCCI, CB-Scheme, TUV, UL
HDD speed	7200 RPM
HDD size	3.5"
HDD capacity	16 TB
Storage drive buffer size	512 MB
24/7 operation	Yes
Power
Power consumption (typical)	6.4 W
Power consumption (idle)	5.3 W
Operating voltage	5 / 12 V
Operational conditions
Operating temperature (T-T)	5 - 60 °C
Storage temperature (T-T)	-40 - 70 °C
Operating vibration	0.67 G
Operating shock	50 G
Non-operating vibration	1.04 G
Non-operating shock	250 G
Technical details
Warranty period	5 year(s)
Interface	Serial ATA III
Mean time between failures (MTBF)	2500000 h
Hot-swap	No
Weight & dimensions
Width	4" (101.6 mm)
Weight	24.3 oz (690 g)
Height	1.03" (26.1 mm)
Depth	5.79" (147 mm)
Other features
Interface	Serial ATA III
Certification	BSMI, ICES-003/NMB-003, CE, FCC, KC, Maghreb, RCM, UKCA, VCCI, CB-Scheme, TUV, UL
Warranty period	5 year(s)
