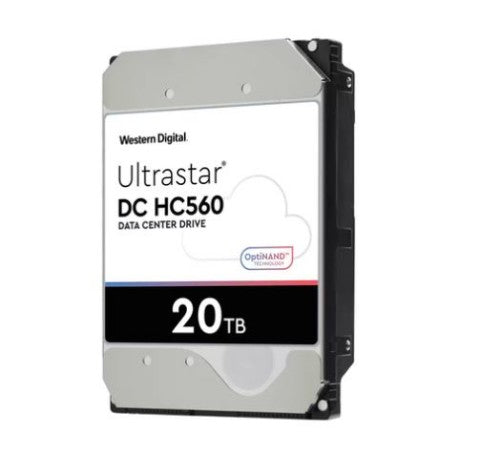

Western Digital Ultrastar DC HC560 internal hard drive 20 TB 7200 RPM 512 MB 3.5" Serial ATA III

Ultrastar DC HC560 20TB. 20pk

Description

20TB capacity with a reimagined HDD
An innovative storage architecture to help our customers meet their need for exponential data growth.

Reimagining the HDD for Exponential Data Growth
Hyperscale cloud, CSPs, enterprises, smart video surveillance partners, NAS suppliers and more need storage solutions to meet the exponential growth in data creation. When it comes to cost-effective storage of data at scale, hard disk drives (HDDs) continue to play a central role. HDDs deliver the capacity, performance and reliability needed to store vast amounts of data today and well into the future. Investments in HDD technology remain critical to supporting worldwide data growth.

Western Digital has developed flash-enhanced drives with OptiNAND™ technology by vertically integrating our leading NAND flash with our world-class HDDs. Western Digital HDDs have been leaders in areal density with industry first technologies of energy-assisted magnetic recording technology (EAMR), triple-stage actuator (TSA), HelioSeal®, and now OptiNAND technology. Higher areal density means higher capacities to meet storage challenges.

20TB HDDs with OptiNAND Technology
OptiNAND integrates an iNAND® Universal Flash Storage (UFS) Embedded Flash Drive (EFD) with traditional spinning disk media, and incorporates innovative changes to the firmware algorithm and system-on-a-chip (SoC). OptiNAND is not a hybrid technology. The drive works smarter, with enhanced firmware algorithms taking advantage of expanded metadata that has been offloaded to the iNAND, enabling more tracks per inch (TPI) with resulting increased areal density.

The Ultrastar DC HC560, with the first implementation of OptiNAND technology’s capacity-enabling features, delivers an unbeaten 20TB capacity in a nine-disk platform (2.2TB/platter) with CMR recording format

Specifications

Hard drive
Component for	Server/workstation
HDD interface transfer rate	6 Gbit/s
Workload rate limit	550 TB/year
Average latency	4.16 ms
HDD speed	7200 RPM
HDD size	3.5"
HDD capacity	20 TB
Features
Type	HDD
Component for	Server/workstation
HDD interface transfer rate	6 Gbit/s
Workload rate limit	550 TB/year
Interface	Serial ATA III
Average latency	4.16 ms
HDD speed	7200 RPM
HDD size	3.5"
HDD capacity	20 TB
Storage drive buffer size	512 MB
24/7 operation	Yes
Operational conditions
Operating temperature (T-T)	5 - 60 °C
Storage temperature (T-T)	-40 - 70 °C
Operating vibration	0.7 G
Operating shock	50 G
Non-operating vibration	1.04 G
Non-operating shock	250 G
Technical details
Quantity per pack	20 pc(s)
Interface	Serial ATA III
Weight & dimensions
Width	4" (101.6 mm)
Weight	24.3 oz (690 g)
Height	1.03" (26.1 mm)
Depth	5.79" (147 mm)
Packaging data
Quantity per pack	20 pc(s)
Other features
Interface	Serial ATA III
