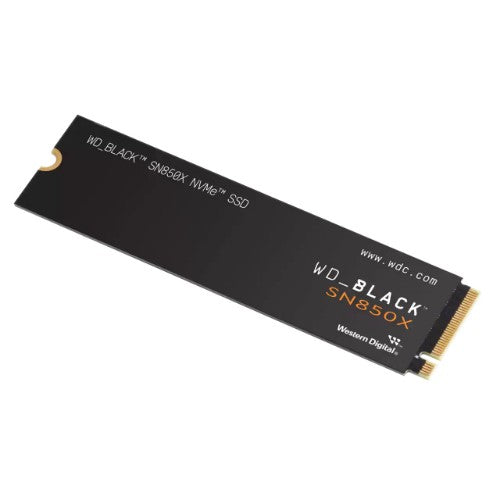

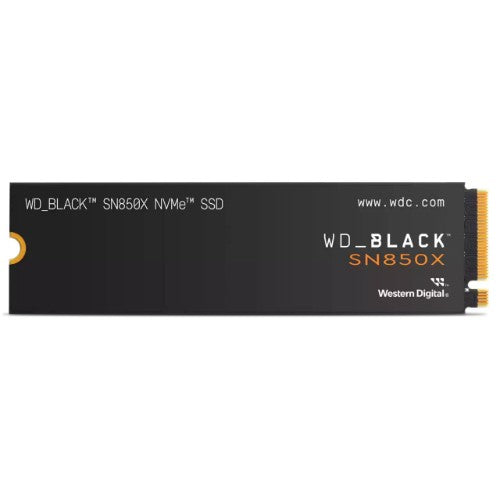

Western Digital WDS100T2X0E internal solid state drive 1 TB M.2 PCI Express 4.0 NVMe 3D TLC NAND

1 TB, M.2, 6300MB/s

Description

Built for elite gaming.
Crush load times and slash throttling, lagging, and texture pop-ins with the WD_BLACK SN850X NVMe™ SSD. Available in capacities of 1TB up to 8TB2, this gaming drive is built for top-tier performance. With 7,300MB/s1 speeds (1TB - 4TB models) and a heatsink option to maintain performance, you can enjoy your favorite games without worrying about lag. Plus, the downloadable WD_BLACK Dashboard (Windows® only) can automatically turn on Game Mode 2.0 features. The WD_BLACK SN850X NVMe™ SSD delivers a smooth, fast experience —and the innovations that let you compete at your absolute peak.

Gain the Ultimate Gaming Edge
Insane speeds up to 7,300 MB/s1 (1TB - 4TB models) deliver top-tier performance with ridiculously short load times — for the elite gaming experience you’ve been waiting for.

Heatsink for the Win

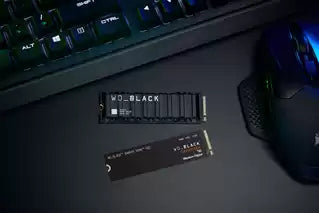

All capacities have an optional heatsink version that's not only eye-catching, but also helps your rig maintain peak performance through your most intense gaming sessions.

More Room for More Games
Capacities up to 8TB2 built with Western Digital TLC 3D NAND, means you get to keep more games at the ready — and get into the action even faster.

Do more with WD_BLACK Dashboard
The downloadable WD_BLACK Dashboard (Windows® only) monitors your drive’s health, lets you customize your RGB lighting, and, exclusively on the SN850X SSD, enables Game Mode 2.0 to transform your gaming experience.

Future-forward features
The WD_BLACK SN850X SSD boasts a powerful suite of features, including Predictive Loading, Overhead Balancing, and Adaptive Thermal Management5.

DirectStorage Supported
Improve load times and get precious time back with Microsoft® DirectStorage technology.

Specifications

Hard drive
SSD capacity	1 TB
Memory type	3D TLC NAND
Data transmission
Read speed	7300 MB/s
Write speed	6300 MB/s
Random write (4KB)	1100 IOPS
Random read (4KB)	800 IOPS
Features
Interface	PCI Express 4.0
Component for	PC/Game console
NVMe	Yes
TBW rating	600
SSD capacity	1 TB
Read speed	7300 MB/s
Write speed	6300 MB/s
Memory type	3D TLC NAND
Random write (4KB)	1100 IOPS
Random read (4KB)	800 IOPS
SSD form factor	M.2
M.2 SSD size	2280 (22 x 80 mm)
Performance
Interface	PCI Express 4.0
Component for	PC/Game console
NVMe	Yes
TBW rating	600
SSD capacity	1 TB
Read speed	7300 MB/s
Write speed	6300 MB/s
Memory type	3D TLC NAND
Random write (4KB)	1100 IOPS
Random read (4KB)	800 IOPS
Design
Component for	PC/Game console
SSD form factor	M.2
Weight & dimensions
Width	0.87" (22.1 mm)
Weight	0.265 oz (7.5 g)
Height	0.0906" (2.3 mm)
Depth	3.15" (80 mm)
Operational conditions
Operating temperature (T-T)	0 - 85 °C
Storage temperature (T-T)	-40 - 85 °C
Minimum operating temperature	0 °C
Maximum operating temperature	85 °C
Technical details
Interface	PCI Express 4.0
Operating temperature (T-T)	0 - 85 °C
Storage temperature (T-T)	-40 - 85 °C
SSD form factor	M.2
Warranty period	5 year(s)
Other features
Warranty period	5 year(s)
