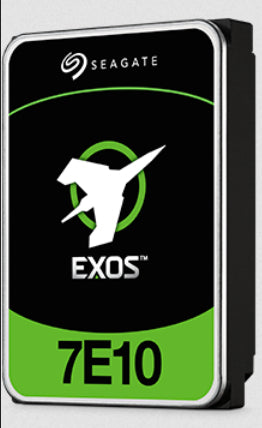

2TB, 7200 rpm, 256MB, 512e/4KN (FastFormat™) SAS, Standard Model
Description
Purpose-built for enterprise applications and workloadsTrusted. Efficient. VersatileFor everything Enterprise storage, there's Exos E — the safest and most powerful way to traverse the datasphere and harness its full potential. Always on and always working, the Exos E series of hard drives is loaded with advanced options for optimal performance, reliability, security and user-definable storage management. Built on generations of industry-defining innovation, Exos E is designed to work and perform consistently in enterprise-class workloads.
Exos 7E10Specifically designed to address the needs of storing unstructured data cost-effectively.
Specifications
| Hard drive |
|---|
| Component for |
Disk array |
| HDD interface transfer rate |
12 Gbit/s |
| Average latency |
4.16 ms |
| Mean time between failures (MTBF) |
2000000 h |
| HDD speed |
7200 RPM |
| HDD size |
3.5" |
| HDD capacity |
2 TB |
| Features |
|---|
| Type |
HDD |
| Component for |
Disk array |
| HDD interface transfer rate |
12 Gbit/s |
| Interface |
SAS |
| Average latency |
4.16 ms |
| Mean time between failures (MTBF) |
2000000 h |
| HDD speed |
7200 RPM |
| HDD size |
3.5" |
| HDD capacity |
2 TB |
| Storage drive buffer size |
256 MB |
| Uncorrectable Bit Error Rate (UBER) |
< 1 per 10^15 bits read |
| Rotational Vibration (RV) sensors |
Yes |
| 24/7 operation |
Yes |
| Power |
|---|
| Power consumption (typical) |
10.3 W |
| Power consumption (idle) |
5.9 W |
| Operating voltage |
5 / 12 V |
| Operational conditions |
|---|
| Operating temperature (T-T) |
5 - 60 °C |
| Operating shock |
70 G |
| Non-operating vibration |
5 G |
| Non-operating shock |
300 G |
| Technical details |
|---|
| Harmonized System (HS) code |
84717050 |
| Interface |
SAS |
| Mean time between failures (MTBF) |
2000000 h |
| Weight & dimensions |
|---|
| Width |
4.01" (101.8 mm) |
| Weight |
21.9 oz (620 g) |
| Height |
1.03" (26.1 mm) |
| Depth |
5.79" (147 mm) |
| Logistics data |
|---|
| Harmonized System (HS) code |
84717050 |
| Other features |
|---|
| Interface |
SAS |
