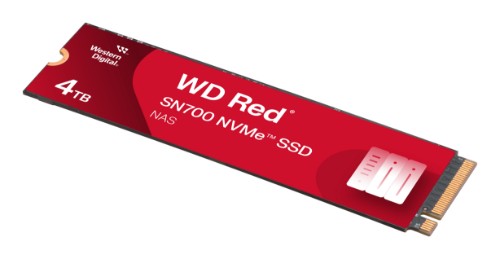

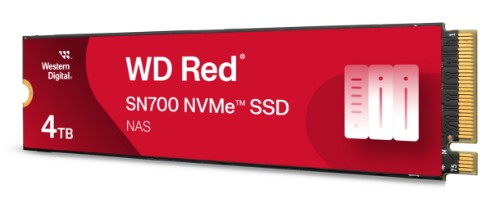

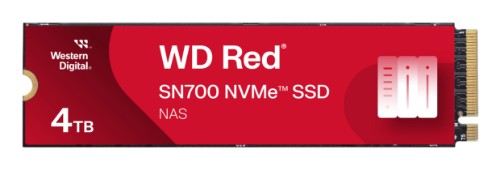

WD Red SN700 NVMe POWERED BY SANDISK 4 TB
Description
Accelerate Your NASTackle extreme workloads in high-intensity NAS environments with the fast-caching WD Red SN700 NVMe™ SSD. The drive’s robust system responsiveness and exceptional I/O performance are perfect for multi-user, multitasking applications, letting you tame your SMB’s toughest projects from virtualization to collaborative editing to intensive database storage with efficient caching —all while helping to lower your TCO.
Accelerate Your NASThe fast-caching power of the WD Red SN700 NVMe™ SSD delivers robust system responsiveness and exceptional I/O performance compared to our SATA SSDs.
Built to LastTackle 24/7 NAS workload environments with reliability and endurance of up to 5100 TBW (4TB model), backed by a 5-year limited warranty.
Step Up to NVMe™Tame your SMB’s toughest projects—from virtualization to collaborative editing to intensive database storage with efficient caching —with storage designed to outperform while helping to lower your TCO.
Perfect for SMBsEven in smaller operations, multiple people working at the same time can tax a NAS device. NVMe caching easily handles random workloads in multi-user, multitasking applications to let small-to-medium businesses do more.
Scale Up to Keep UpKeep ahead of the data explosion with huge capacities up to 4TB.
Optimize Your WorkflowPurpose-built and tested to be compatible with many of today’s most popular NAS systems for maximum flexibility to optimize your workflow.
Specifications
| Hard drive |
|---|
| PCI Express interface data lanes |
x4 |
| SSD capacity |
4 TB |
| Data transmission |
|---|
| Read speed |
3400 MB/s |
| Write speed |
3100 MB/s |
| Random write (4KB) |
520000 IOPS |
| Random read (4KB) |
550000 IOPS |
| Data transfer rate |
8 Gbit/s |
| Endurance |
|---|
| Mean time between failures (MTBF) |
1750000 h |
| Features |
|---|
| Interface |
PCI Express 3.0 |
| Component for |
NAS |
| NVMe |
Yes |
| TBW rating |
5100 |
| PCI Express interface data lanes |
x4 |
| SSD capacity |
4 TB |
| Read speed |
3400 MB/s |
| Write speed |
3100 MB/s |
| Random write (4KB) |
520000 IOPS |
| Random read (4KB) |
550000 IOPS |
| Mean time between failures (MTBF) |
1750000 h |
| Hardware encryption |
No |
| Data transfer rate |
8 Gbit/s |
| SSD form factor |
M.2 |
| Harmonized System (HS) code |
84717070 |
| Power |
|---|
| Current |
2.8 A |
| Power consumption (sleep) |
0.005 W |
| Performance |
|---|
| Interface |
PCI Express 3.0 |
| Component for |
NAS |
| NVMe |
Yes |
| TBW rating |
5100 |
| PCI Express interface data lanes |
x4 |
| SSD capacity |
4 TB |
| Read speed |
3400 MB/s |
| Write speed |
3100 MB/s |
| Random write (4KB) |
520000 IOPS |
| Random read (4KB) |
550000 IOPS |
| Mean time between failures (MTBF) |
1750000 h |
| Hardware encryption |
No |
| Data transfer rate |
8 Gbit/s |
| Design |
|---|
| Component for |
NAS |
| SSD form factor |
M.2 |
| Weight & dimensions |
|---|
| Width |
0.866" (22 mm) |
| Weight |
0.338 oz (9.57 g) |
| Height |
0.0937" (2.38 mm) |
| Depth |
3.15" (80 mm) |
| Operational conditions |
|---|
| Operating temperature (T-T) |
0 - 70 °C |
| Storage temperature (T-T) |
-55 - 85 °C |
| Minimum operating temperature |
0 °C |
| Maximum operating temperature |
70 °C |
| Technical details |
|---|
| Interface |
PCI Express 3.0 |
| Operating temperature (T-T) |
0 - 70 °C |
| Storage temperature (T-T) |
-55 - 85 °C |
| Hardware encryption |
No |
| SSD form factor |
M.2 |
| Logistics data |
|---|
| Harmonized System (HS) code |
84717070 |
