32", VA, 1920 x 1080, 4000:1, HDMI, USB, Wi-Fi, Bluetooth, 100-240 V, 50/60 Hz, 727.3 x 421.9 x 28.5 mm, 5.2 kg
Key Features
- Ultra Slim Depth
- Even Bezel
- Centered VESA Holes
Description
Slim design. Stunning performance.Introducing QMC, the slimmest display in the Samsung UHD Signage lineup. It brings elegance to businesses while maximizing space. Its enhanced internal solutions and intuitive home screen UX makes it easy to use. Businesses in various verticals can achieve growth with QMC’s efficiency and design innovation.
Maximum impact in minimum space

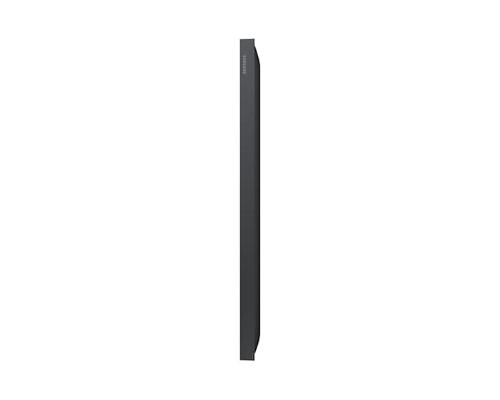

Ultra Slim DepthThe QMC's ultra-slim 28.5 mm depth makes it the thinnest option in Samsung’s UHD series. It is compatible with a Slim Fit Wall Mount, which allows you to install it neatly and easily in any location. QMC optimizes space with its sleek design that blends seamlessly into your business environment.
Clean visuals in landscape or portrait mode
Even BezelThe bezels are consistent and even on all four sides of the display, with the same thickness and dimensions. The new even bezel design prevents any visual issues from arising when the display is adjusted to portrait mode.
Secure and even mounting

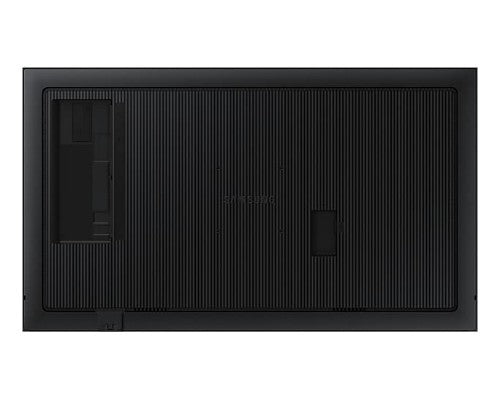

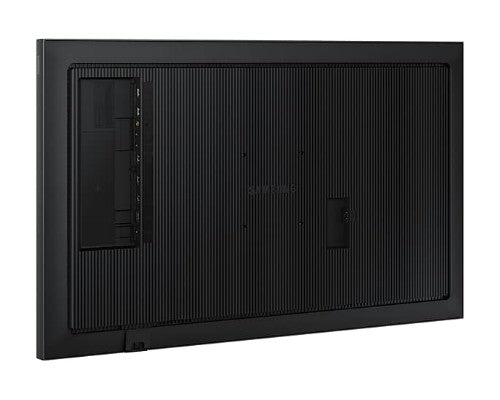

Centered VESA HolesThe central positioning of the VESA holes on the back of the display evenly distribute its weight for secure mounting. With the VESA holes now shifted to the center, users can adjust the display to portrait mode without the display tilting unintentionally.
Lifelike colour
Dynamic Crystal ColorExperience immersive pictures with one billion shades of colour. Dynamic Crystal Color delivers true-to-life variations, allowing customers to see every subtlety.
View lifelike shades of colour in powerful 4K
Quantum Processor Lite 4KSamsung’s proprietary video processing technology enhances every piece of content for clarity and consistency. Intelligent UHD upscaling technology, powered by Samsung’s Quantum Processor Lite 4K, elevates lower-resolution video to UHD, providing a professional picture quality.
Ensure critical information is always visible
Non-glareQMC displays feature reliable, non-glare panels that provide better visibility from all angles, any time of the day. The non-glare display enables businesses to deliver accurate information in critical locations, like airports and train stations.
Connect with convenience
Home UIQMC boasts greater usability with an upgraded home screen UI. Popular categories like Favorites, Sources and Settings are displayed on the same screen for convenient availability. The Favorites folder grants users quick, easy access to frequently used features in a single click.
Collaborate between screens with wire-free speed
Smartview+SmartView+ enables wireless screen sharing without cable connections, ensuring easy collaboration. Users can now enable the screen sharing function at the start of a meeting, allowing the meeting admin to quickly switch between screens with one click.
Simplified calibration between screens with mobile app
Smart CalibrationExperience complete brand consistency across every display in every location. Using the Samsung mobile app, Smart Calibration allows for every display to be calibrated correctly, showcasing brand logos and other collateral in the exact colours required.
Enhance professional environments with expert tools
Professional ModesBuilt-in professional modes enable more possibilities in specific verticals. Director Mode minimizes post-processing, aligning content to the director’s original intention. Medical teams can simulate medical images such as X-rays with DICOM Simulation Mode, meeting DICOM's full grayscale standards.
Change the way to manage your display
Samsung VXTSamsung VXT CMS is a cloud-based solution that brings together content management and remote device management capabilities, allowing users to remotely manage hardware settings and troubleshoot issues while effortlessly creating and deploying content with no previous training needed.
Building towards a sustainable future, today
Energy Star / EPEAT / TÜV Rheinland Carbon FootprintSamsung is making diverse efforts to reduce our environmental impact in smart signage. As a result, QBC series has earned a series of certifications for environmentally preferable products from highly recognized institutes.
Specifications
| Display |
|---|
| Dynamic contrast ratio marketing name |
Mega Contrast |
| Panel type |
VA |
| Touchscreen |
No |
| Display technology |
LCD |
| Display diagonal |
32" |
| Display resolution |
1920 x 1080 pixels |
| Display brightness |
400 cd/m² |
| Response time |
8 ms |
| Contrast ratio (typical) |
4000:1 |
| Viewing angle, horizontal |
178° |
| Viewing angle, vertical |
178° |
| Pixel pitch |
0.0143 x 0.0143" (0.364 x 0.364 mm) |
| Vertical scan range |
48 - 75 Hz |
| Native aspect ratio |
16:9 |
| Horizontal scan range |
30 - 81 kHz |
| Haze rate |
2% |

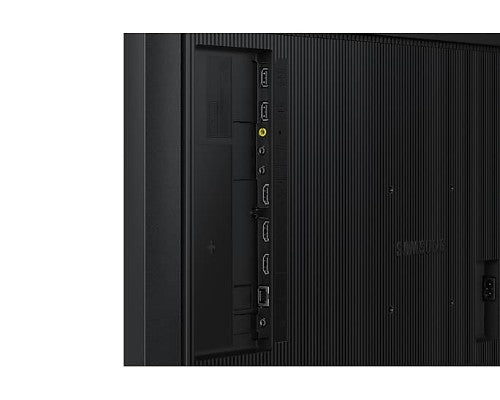

| Ports & interfaces |
|---|
| Remote (IR) input |
1 |
| USB port |
Yes |
| HDMI version |
1.4 |
| Infrared data port |
Yes |
| Wi-Fi |
Yes |
| PC Audio out |
Yes |
| Ethernet LAN |
Yes |
| HDMI ports quantity |
3 |
| Ethernet LAN (RJ-45) ports |
1 |
| RS-232 interface |
Yes |
| USB ports quantity |
2 |
| Design |
|---|
| Product design |
Digital signage flat panel |
| Placement supported |
Indoor |
| Orientation |
Horizontal/Vertical |
| Bezel width (top) |
0.453" (1.15 cm) |
| Bezel width (side) |
0.453" (1.15 cm) |
| Bezel width (bottom) |
0.453" (1.15 cm) |
| Product colour |
Black |
| Panel mounting interface |
100 x 100 mm |
| VESA mounting |
Yes |
| Screen shape |
Flat |
| Performance |
|---|
| Purpose |
Commercial |
| HDCP |
Yes |
| HDCP version |
2.2 |
| Wi-Fi |
Yes |
| Power |
|---|
| Power consumption (sleep) |
0.5 W |
| Power consumption (typical) |
55 W |
| AC input voltage |
100 - 240 V |
| AC input frequency |
50/60 Hz |
| Computer system |
|---|
| Operating system installed |
Tizen 7.0 |
| Internal storage capacity |
8 GB |
| Weight & dimensions |
|---|
| Display width |
28.6" (727.3 mm) |
| Display depth |
1.12" (28.5 mm) |
| Display height |
16.6" (421.9 mm) |
| Display weight |
11.5 lbs (5.2 kg) |
| Packaging data |
|---|
| Package width |
32.2" (817 mm) |
| Package depth |
4.69" (119 mm) |
| Package height |
20" (507 mm) |
| Package weight |
15.2 lbs (6.9 kg) |
| Operational conditions |
|---|
| Operating temperature (T-T) |
0 - 40 °C |
| Operating relative humidity (H-H) |
10 - 80% |
| Technical details |
|---|
| VESA mounting |
Yes |
| Panel type |
VA |
| Thin Client |
|---|
| Operating system installed |
Tizen 7.0 |
| Internal storage capacity |
8 GB |
| Other features |
|---|
| Panel type |
VA |
| Wi-Fi |
Yes |
| PC Audio out |
Yes |
| Display technology |
LCD |
| Bezel width (top) |
0.453" (1.15 cm) |
| Bezel width (side) |
0.453" (1.15 cm) |
| Bezel width (bottom) |
0.453" (1.15 cm) |
