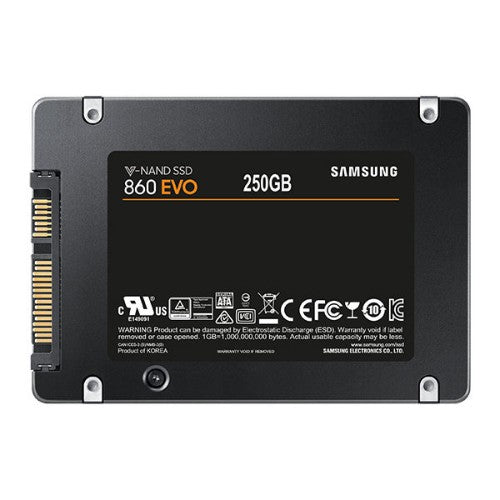

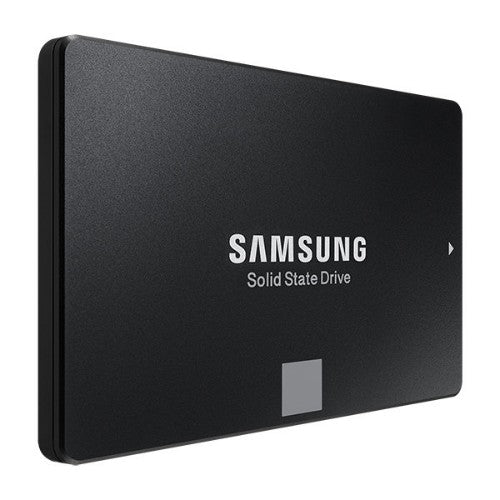

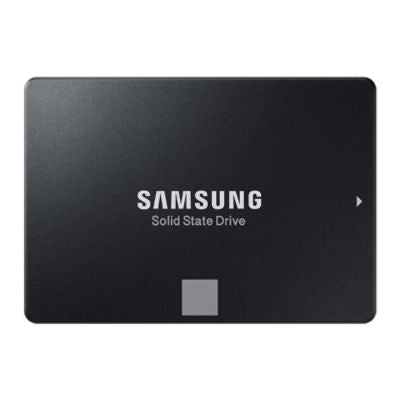

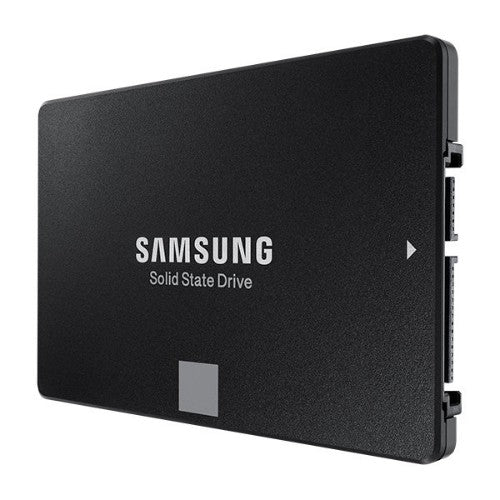

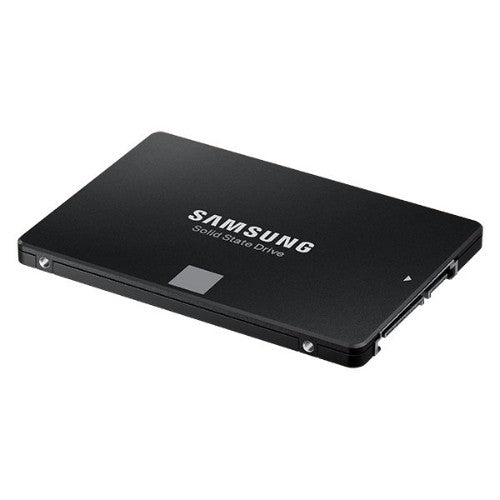

Samsung 860 EVO 2.5" 250 GB Serial ATA III MLC

860 EVO 250GB 2.5" SATA III Client SSD for Business

Key Features

• Featuring Samsung's latest 64-layer V-NAND technology to handle the workloads of mainstream PCs and laptops
• Refined everyday computing for business professionals
• Available in 2.5" SATA III, mSATA and M.2 form factors to fit your needs
• Reliable endurance with an industry warranty up to 2,400 Total Bytes Written (TBW) for 5 years

Description

Designed for everyday computing, the Samsung 860 EVO is powered by our latest V-NAND technology and a robust algorithm-based Samsung controller to handle the workloads of mainstream PCs and laptops. Get fast, enduring performance with exceptional reliability and expanded compatibility.

Samsung V-NAND Technology
Samsung's V-NAND flash memory helps to overcome the limitations of conventional planar NAND architecture. It stacks 64 cell layers vertically over one another rather than trying to fit itself onto a fixed horizontal space, in order to provide high density and performance with a small footprint.

Fast Read/Write Performance
The 860 PRO performs at sequential write speeds up to 520 MB/s and sequential read speeds up to 550 MB/s with a robust a robust algorithm-based Samsung MJX controller (up to 1 GHz).

Relentless Endurance
With an industry warranty offering up to 2,400 Total Bytes Written (TBW) for 5 years, and our V-NAND flash's higher endurance compared to conventional planar type NAND flash, our 860 PRO SSDs can consistently meet the needs of high-end use and heavy workloads with ease, such as safely storing and rendering 4K videos and 3D data.

Specifications

Hard drive
SSD capacity	250 GB
Memory type	MLC
Data transmission
Read speed	550 MB/s
Write speed	520 MB/s
Random write (4KB)	90000 IOPS
Random read (4KB)	98000 IOPS
Data transfer rate	6 Gbit/s
Security
Security algorithms	256-bit AES
Endurance
Mean time between failures (MTBF)	1500000 h
Performance
Interface	Serial ATA III
Component for	PC/Laptop
Controller type	Samsung MJX
NAND flash type	MLC (Multi Level Cell)
Opal SSC 2.0	Yes
IEEE 1667	Yes
DevSlp (device sleep) support	Yes
Active garbage collection	Yes
SSD capacity	250 GB
Security algorithms	256-bit AES
S.M.A.R.T. support	Yes
Read speed	550 MB/s
TRIM support	Yes
Write speed	520 MB/s
Memory type	MLC
Random write (4KB)	90000 IOPS
Random read (4KB)	98000 IOPS
Mean time between failures (MTBF)	1500000 h
Data transfer rate	6 Gbit/s
Design
Component for	PC/Laptop
Product colour	Black
SSD form factor	2.5"
Features
Interface	Serial ATA III
Component for	PC/Laptop
Controller type	Samsung MJX
NAND flash type	MLC (Multi Level Cell)
Opal SSC 2.0	Yes
IEEE 1667	Yes
DevSlp (device sleep) support	Yes
Active garbage collection	Yes
SSD capacity	250 GB
Security algorithms	256-bit AES
S.M.A.R.T. support	Yes
Read speed	550 MB/s
TRIM support	Yes
Write speed	520 MB/s
Memory type	MLC
Random write (4KB)	90000 IOPS
Random read (4KB)	98000 IOPS
Mean time between failures (MTBF)	1500000 h
Data transfer rate	6 Gbit/s
SSD form factor	2.5"
Power
Power consumption (average)	3 W
Power consumption (max)	4 W
Power consumption DevSlp (device sleep)	2 mW
Power consumption (idle)	0.5 W
Operational conditions
Operating temperature (T-T)	0 - 70 °C
Storage temperature (T-T)	-40 - 85 °C
Operating relative humidity (H-H)	5 - 95%
Storage relative humidity (H-H)	5 - 95%
Operating shock	1500 G
Non-operating shock	1500 G
Technical details
Interface	Serial ATA III
S.M.A.R.T. support	Yes
Operating temperature (T-T)	0 - 70 °C
TRIM support	Yes
Storage temperature (T-T)	-40 - 85 °C
Operating relative humidity (H-H)	5 - 95%
Storage relative humidity (H-H)	5 - 95%
Operating shock	1500 G
Non-operating shock	1500 G
Product colour	Black
SSD form factor	2.5"
Weight & dimensions
Width	3.94" (100 mm)
Weight	3.04 oz (86.2 g)
Height	2.76" (70.1 mm)
Depth	0.27" (6.86 mm)
Other features
Product colour	Black
