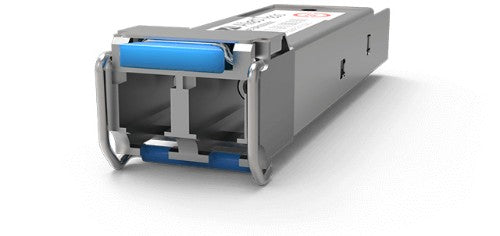

1000SX SFP, LC, MMF, 850 nm, TAA
Key Features
- Fiber and copper solutions
- Compact size
- Flexible architecture
- Plug and Play for ease of use
- Self-locking mechanism
- MSA-compliant
Description
Gigabit Small Form-Factor Pluggable ModulesThe Allied Telesis SP Series delivers flexible, full-duplex Ethernet connectivity. These hot-swappable fiber and copper interfaces simply plug into the SFP slot on all SFP-compatible devices. Configuration can be optimized to meet a wide variety of distance and service requirements.
CompatibilityAllied Telesis SP Series Gigabit Small Form-Factor Pluggables (SFPs) are supported on all Allied Telesis devices with SFP uplink connections.
SP Series SFPs are Multi-Sourcing Agreement (MSA)-compliant, and fully adhere to industry standard networking regulations. This allows the SP Series to be used with other MSA-compliant platforms that support SFP uplink connections.
For Cisco compatibility please refer to the “SFP Compatibility Flyer”.
OptionsSP Series SFPs offer short-haul,
long-haul and Bi-Directional (BiDi) solutions. This flexibility allows network managers to easily extend network distance and bandwidth.
Using an SFP BiDi transceiver can upgrade transmission capacity on a typical network—without installing new fibers—by utilizing a single fiber for both the send and receive signals.
Multiple temperature rangesDifferent network environments call for a variety of temperature ranges. The SP Series is available in standard (0-70°C), industrial (-40 to 85°C), and extended (-40 to 105°C) temperature variants.
Specifications
| Network |
|---|
| SFP transceiver type |
Fiber optic |
| Interface type |
SFP |
| Maximum data transfer rate |
1000 Mbit/s |
| Fiber optic connector |
LC |
| Performance |
|---|
| Product colour |
Silver |
| Housing material |
Metal |
| Plug and Play |
Yes |
| Hot-swap |
Yes |
| SFP transceiver type |
Fiber optic |
| Link budget |
11 dB |
| Interface type |
SFP |
| Maximum data transfer rate |
1000 Mbit/s |
| Fiber optic connector |
LC |
| Maximum transfer distance |
21653.5" (550 m) |
| Wavelength |
850 nm |
| Tx power (min) |
-8 dBmW |
| Tx power (max) |
-3 dBmW |
| Multi-mode fiber (MMF) supported |
Yes |
| Features |
|---|
| Product colour |
Silver |
| Housing material |
Metal |
| Plug and Play |
Yes |
| Hot-swap |
Yes |
| RX sensitivity |
-19 dB |
| Operational conditions |
|---|
| Operating temperature (T-T) |
-40 - 105 °C |
| Logistics data |
|---|
| Quantity per pack |
1 pc(s) |
| Other features |
|---|
| RX sensitivity |
-19 dB |
