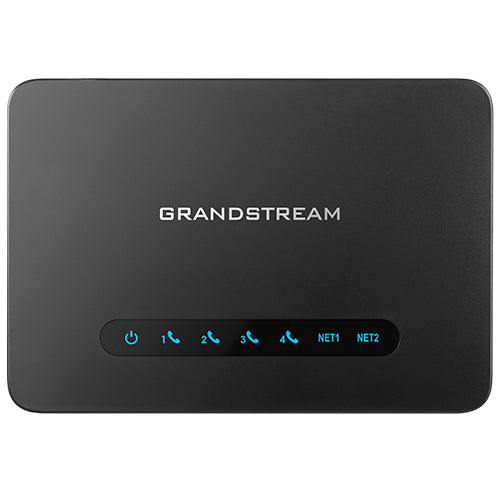

HT814 v2 Powerful 4 Port FXS Gateway with Gigabit NAT Router
Key Features
- Supports 2 SIP profiles through 4 FXS ports and dual Gigabit ports
- Includes a built-in NAT router which can handle routing speeds up to 100MBps
- TLS and SRTP security encryption technology to protect calls and accounts
- LED Indicators - POWER, NET1, NET2, PHONE1, PHONE2, PHONE3, PHONE4
- Automated provisioning options include TR-069 and XML config files
- Supports 3-way voice conferencing
- Failover SIP server automatically switches to secondary server if main server loses connection
- Supports T.38 Fax for creating Fax-over-IP
- Supports a wide range of caller ID formats
- Use with Grandstream’s UCM series of IP PBXs for Zero Configuration provisioning
Description
The HT814 V2 is an advanced 4-port VoIP gateway with 4 FXS ports and an integrated Gigabit NAT router.
Built upon Grandstream’s market-leading SIP ATA/gateway technology with millions of units successfully
deployed worldwide, this powerful gateway features exceptional voice quality in various application
environments, strong encryption with unique security certificate per unit, automated provisioning for
volume deployment and device management, and outstanding network performance for home and office
use.
Specifications
| Features |
|---|
| Voice codecs |
CNG, G.711, G.722, G.723.1, G.726-32, G.729ab, OPUS, VAD |
| Reset button |
Yes |
| Power LED |
Yes |
| LED indicators |
Yes |
| Fax compatibility |
T.38 |
| Certification |
FCC/CE/RCM, K.21 |
| Product colour |
Black |
| Call management |
|---|
| Conference call |
Yes |
| Caller ID |
Yes |
| Call waiting |
Yes |
| Protocols |
|---|
| Supported protocols |
TCP/IP/UDP, RTP/RTCP (RFC1889, 1890), HTTP/HTTPS, ARP/RARP, ICMP,
DNS, DHCP, NTP, TFTP, SSH, Telnet STUN (RFC3489, 5389), SIP (RFC3261),
SIP over TCP/TLS, SRTP, SNMP, TR-069, IMS/3GPP, IPoE |
| Security |
|---|
| Security algorithms |
SIPS, SRTP, TLS |
| Ports & interfaces |
|---|
| Modem (RJ-11) ports |
4 |
| Ethernet LAN (RJ-45) ports |
2 |
| Power |
|---|
| Power source type |
AC |
| AC input voltage |
100-240 V |
| AC input frequency |
50/60 Hz |
| Output voltage |
12 V |
| Output current |
1 A |
| Operational conditions |
|---|
| Storage temperature (T-T) |
-10 - 60 °C |
| Operating temperature (T-T) |
0 - 50 °C |
| Operating relative humidity (H-H) |
10 - 90% |
| Weight & dimensions |
|---|
| Weight |
10.2 oz (290 g) |
| Width |
5.12" (130 mm) |
| Depth |
3.54" (90 mm) |
| Height |
1.12" (28.5 mm) |
