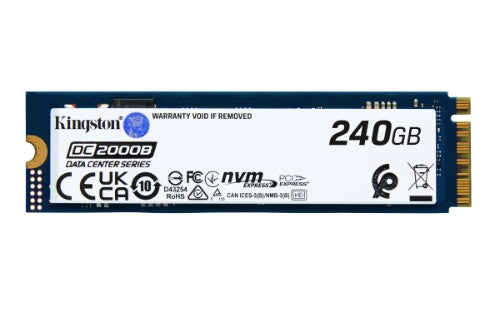

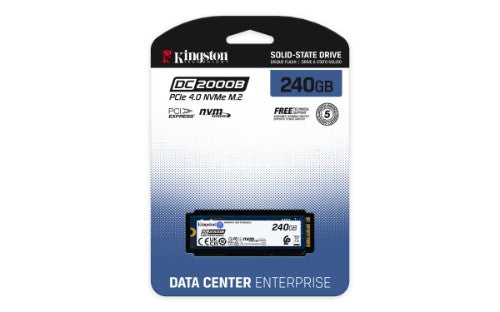

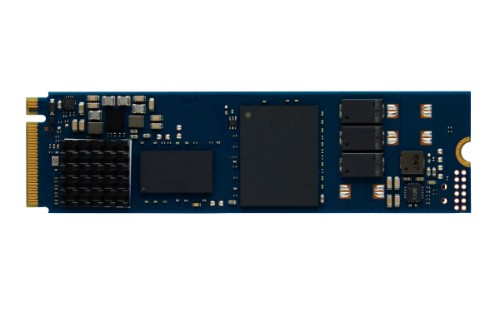

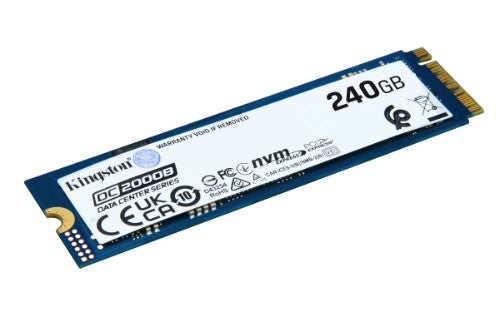

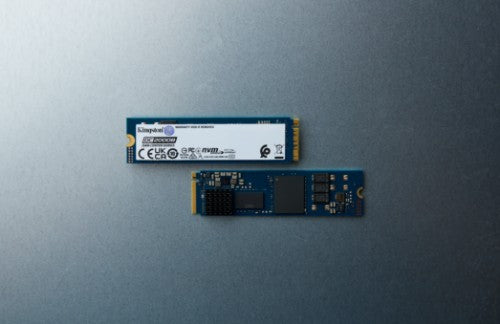

240G DC2000B PCIe 4.0 M.2 2280 Enterprise SSD
Key Features
- PCIe 4.0 NVMe Gen 4x4 performance
- Hardware-based power loss protection
- Latency and IOPS consistency
- Designed for data center environments
Description
Enterprise class for server applicationsKingston’s DC2000B SSD is a high-performance boot drive designed for data centers using the latest Gen 4x4 PCIe interface with 3D TLC NAND. With low latency, IOPS consistency and hardware-based power loss protection, it ensures reliability and efficiency. Available in capacities of up to 960GB, it's ideal for enterprise server boot and caching applications.

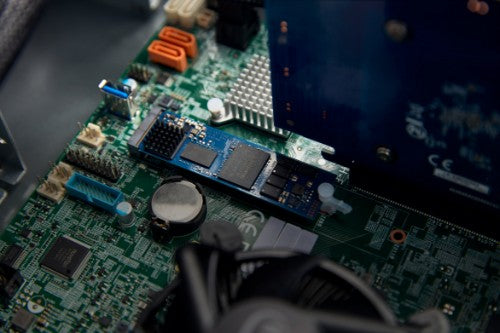

Kingston DC2000B is a high-performance PCIe 4.0 NVMe M.2 SSD using a Gen 4x4 PCIe controller and 3D TLC NAND. Ideally suited for use in high-volume rack-mount servers as an internal boot drive(s) to preserve valuable front-loading drive bays, as well as for use in purpose-built systems where a high-performance M.2 SSD is needed that includes hardware-based on-board power loss protection (PLP). New for DC2000B is an integrated aluminium heatsink that offers broader thermal compatibility for a wide range of systems. DC2000B delivers low latency and excellent IO consistency to handle various workloads from boot drive applications to high-speed application caching. DC2000B is rated at 0.4 DWPD write endurance and carries a 5-year warranty."
PCIe 4.0 NVMe performanceUtilises PCIe Gen 4x4 lanes for high-performance speeds.
On-board power loss protection (PLP)Reduce the possibility of data loss and/or corruption due to unexpected power-off.
Low latency and IOPS consistencyFirmware optimised to deliver low latency and IO consistency for high duty cycle workloads.
Designed for data center environmentsOptimised to meet the demands of server boot applications with low latency and IO consistency as the key design criteria.
Specifications
| Hard drive |
|---|
| PCI Express interface data lanes |
x4 |
| SSD capacity |
240 GB |
| Memory type |
3D TLC |
| Data transmission |
|---|
| Read speed |
4500 MB/s |
| Write speed |
400 MB/s |
| Random write (4KB) |
18000 IOPS |
| Random read (4KB) |
260000 IOPS |
| Write latency |
53 µs |
| Read latency |
70 µs |
| Endurance |
|---|
| Mean time between failures (MTBF) |
2000000 h |
| Features |
|---|
| Interface |
PCI Express 4.0 |
| Component for |
Server |
| NVMe |
Yes |
| TBW rating |
175 |
| PCI Express interface data lanes |
x4 |
| SSD capacity |
240 GB |
| S.M.A.R.T. support |
Yes |
| Read speed |
4500 MB/s |
| Write speed |
400 MB/s |
| Memory type |
3D TLC |
| Random write (4KB) |
18000 IOPS |
| Random read (4KB) |
260000 IOPS |
| Mean time between failures (MTBF) |
2000000 h |
| Write latency |
53 µs |
| Read latency |
70 µs |
| SSD form factor |
M.2 |
| H/W PLP function |
Yes |
| M.2 SSD size |
2280 (22 x 80 mm) |
| Drive writes per day (DWPD) |
0.4 |
| Power |
|---|
| Power consumption (write) |
4.09 W |
| Power consumption (read) |
3.01 W |
| Average power consumption (write) |
4.02 W |
| Average power consumption (read) |
2.97 W |
| Performance |
|---|
| Interface |
PCI Express 4.0 |
| Component for |
Server |
| NVMe |
Yes |
| TBW rating |
175 |
| PCI Express interface data lanes |
x4 |
| SSD capacity |
240 GB |
| S.M.A.R.T. support |
Yes |
| Read speed |
4500 MB/s |
| Write speed |
400 MB/s |
| Memory type |
3D TLC |
| Random write (4KB) |
18000 IOPS |
| Random read (4KB) |
260000 IOPS |
| Mean time between failures (MTBF) |
2000000 h |
| Write latency |
53 µs |
| Read latency |
70 µs |
| Design |
|---|
| Component for |
Server |
| Cooling type |
Heatsink |
| SSD form factor |
M.2 |
| Weight & dimensions |
|---|
| Width |
0.866" (22 mm) |
| Weight |
0.317 oz (9 g) |
| Height |
0.35" (8.9 mm) |
| Depth |
3.15" (80 mm) |
| Package width |
5.1" (129.5 mm) |
| Package depth |
0.56" (14.2 mm) |
| Package height |
7.25" (184.2 mm) |
| Package weight |
1.19 oz (33.8 g) |
| Packaging data |
|---|
| Package width |
5.1" (129.5 mm) |
| Package depth |
0.56" (14.2 mm) |
| Package height |
7.25" (184.2 mm) |
| Package weight |
1.19 oz (33.8 g) |
| Master (outer) case width |
5.35" (135.9 mm) |
| Master (outer) case length |
8" (203.2 mm) |
| Master (outer) case height |
2.75" (69.8 mm) |
| Master (outer) case gross weight |
9.9 oz (280.6 g) |
| Products per master (outer) case |
6 pc(s) |
| Operational conditions |
|---|
| Operating temperature (T-T) |
0 - 70 °C |
| Storage temperature (T-T) |
-40 - 85 °C |
| Non-operating vibration |
20 G |
| Technical details |
|---|
| Interface |
PCI Express 4.0 |
| S.M.A.R.T. support |
Yes |
| Operating temperature (T-T) |
0 - 70 °C |
| Storage temperature (T-T) |
-40 - 85 °C |
| Non-operating vibration |
20 G |
| Country of origin |
China, Taiwan |
| SSD form factor |
M.2 |
| Other features |
|---|
| Cooling type |
Heatsink |
| Country of origin |
China, Taiwan |
| Logistics data |
|---|
| Master (outer) case width |
5.35" (135.9 mm) |
| Master (outer) case length |
8" (203.2 mm) |
| Master (outer) case height |
2.75" (69.8 mm) |
| Master (outer) case gross weight |
9.9 oz (280.6 g) |
| Products per master (outer) case |
6 pc(s) |
| Country of origin |
China, Taiwan |
