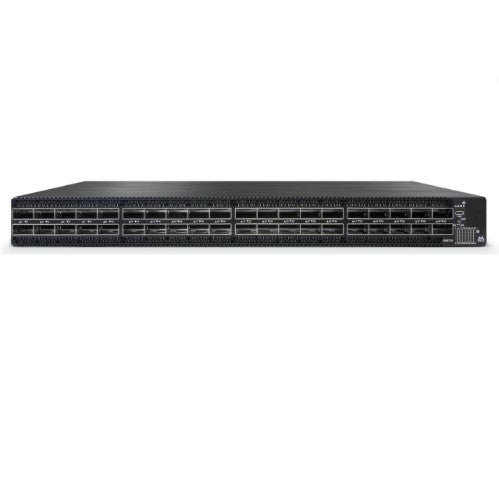

Mellanox Technologies MQM8790-HS2R network switch Managed Gigabit Ethernet (10/100/1000) 1U Black

Mellanox Quantum HDR InfiniBand Switch, 40 QSFP56 ports, 2 Power Supplies (AC), unmanaged, standard depth, C2P airflow, Rail Kit

Description

40-port Non-blocking Externally Managed HDR 200Gb/s InfiniBand Smart Switch

Mellanox provides the world's smartest switch, enabling in-network computing through the Co-Design Scalable Hierarchical Aggregation and Reduction Protocol (SHARP) technology. QM8790 has the highest fabric performance available in the market with up to 16Tb/s of non-blocking bandwidth with sub-90ns port-to-port latency.

Built with Mellanox's Quantum InfiniBand switch device, the QM8790 provides up to forty 200Gb/s ports, with full bi-directional bandwidth per port. These stand-alone switches are an ideal choice for top-of-rack leaf connectivity or for building small to extremely large sized clusters.

QM8790 is the world's smartest network switch, designed to enable in-network computing through the Co-Design Scalable Hierarchical Aggregation and Reduction Protocol (SHARP) technology. The Co-Design architecture enables the usage of all active data center devices to accelerate the communications frameworks using embedded hardware, resulting in an order of magnitude application performance improvements.

Specifications

Optical fiber
Fiber optic connector	QSFP56
Technical details
Form factor	1U
Product colour	Black
Rack mounting	Yes
Management features
Switch type	Managed
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity	1
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Fiber ports quantity	40
Fiber optic connector	QSFP56
Network
Port mirroring	Yes
10G support	Yes
Certificates
Certification	CB, cTUVus, CE, CU, FCC, VCCI, ICES, RCM
Design
Form factor	1U
Product colour	Black
LED indicators	Activity, Link
Certification	CB, cTUVus, CE, CU, FCC, VCCI, ICES, RCM
Rack mounting	Yes
Indication
LED indicators	Activity, Link
Power
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Redundant power supply (RPS) support	Yes
Number of power supply units	2
Input current	4.5 A
Operational conditions
Storage temperature (T-T)	-40 - 70 °C
Storage relative humidity (H-H)	10 - 90%
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	10 - 85%
Operating altitude	0 - 125984.3" (0 - 3200 m)
