MSI Cubi 12M-093BUS Intel® Core™ i5 i5-1235U Windows 11 Home Mini PC Workstation Black

Intel Core i5-1235U, Intel Iris Xe Graphics, Wi-Fi 6E, 1GB LAN, 1x RJ45, 4x USB 3.2 Gen.2 Type-A, 1x Thunderbolt 4 Type-C, 1x HDMI 1.4, 1x DisplayPort 1.2, 65W, 124x124x53mm, 548g

Key Features

• Ready For Various Scenarios
• Small But Powerful
• PEACE of MIND

Description

Be Your window To The World
We always focus on how to improve the efficiency, stability and flexibility for users in any kinds of situations.

Small But Powerful
Bring it home when you need without any inconvenience that it can be your mini PC and your portable storage device.

SUPPORT UP TO 8K RESOLUTION
Cubi 5 allows you to enjoy the best experience of watching movie with your family or attending online conference call while working from home or learning professional tasks at home.

BOLT TO THE NEXT POWER
Thunderbolt™ 4 brings Thunderbolt to USB-C at speeds up to 40 Gbps, creating one compact port that does it all – delivering the fastest, most versatile connection to any dock, display, or data device & NAS.
Embracing a wide array of interface compatibilities so that you can edit, collaborate and share seamlessly

SEE MORE, DO MORE
With HDMI™, DP, and Thunderbolt 4, Cubi 5 allows you to extend to three monitors to preview your E-commerce content & data at home or in the office, enhancing your efficiency.

MSI Cloud Center
FAST, SECURE & WIRELESS BACKUP
Fast, secure, and wireless backup & download between your PC and mobile devices. Transfer files, photos, videos, and more between your PC, Android, and iOS device faster and easier than a cabled connection. You can make these files accessible to your family or team members, or you can also make files as private as you want. The decision is in your hands.

MSI CENTER
The MSI Center takes optimization to the next level with easily adjustable system modes; it helps to prioritize & allocate the resource on your hand to accelerate the performance of those software which you work with everyday.

STABLE & POWERFUL
Equips up to 12th Gen Intel® Core™ i7 processor with 10 cores and 12 threads, delivering computing capability and keeping you in the flow, wherever you go. Also, enjoy more detailed, immersive viewing experience with Intel® Iris® Xe Graphics.

WI-FI 6E TECHNOLOGY
Wi-Fi 6E puts more emphasis on transmission security and improves the signal between the interference problem can also be connected to more devices at the same time, thereby meeting the trend of higher and higher data transmission bandwidth requirements with speed up to 2.4Gbps.

USB 3.2 GEN 2 Type A
With data transfer speeds up to 10Gbps, dual USB 3.2 Gen 2 Type A ports in the front I/O offer twice the bandwidth of the older USB 3.1 Gen 1 Type A ports, effectively halving any data delay or waiting time.

DUAL LAN - SECURITY
More than Dual LAN, the best way to secure your data and prevent the Hacker

ALWAYS BE YOUR BACKUP
With the Dual LAN Design, the Cubi 5 will always be your backup and support
the Internet/Intranet dual network environments.

CREATE THROUGH THE 2.5G LAN
Working on NAS? Connect and rapidly transfer data over a network with the high-bandwidth and low-latency 2.5Gbps Ethernet LAN. Integrated with the exclusive MSI LAN Manager, it prioritizes latency-sensitive application and allows you to take control of their experience.

FW TPM SUPPORT
FW TPM (Trusted Platform Module) technology is designed to provide hardware-based, security-related functions. You can store your sensitive data & passwords by encryption keys for advanced security.

EASY MAINTENANCE
Users can easily upgrade two SO-DIMM, one M.2 SSD or one 2.5” HDD/SSD by disassembling the cover. Made Cubi 5 an even flexible desktop and also reduce the time wasting on upgrading.

VESA MOUNT SUPPORT
VESA Mountable design allows users to hook Cubi 5 up anywhere you like or mount it with MSI PRO MP243 Series . Not only improve the flexibility of using Cubi 5, but also let users make good use of their space at home or at office.

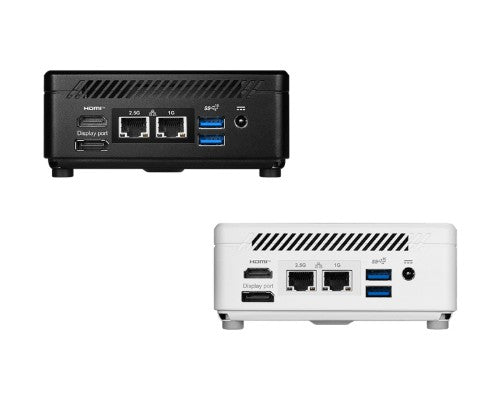

VARIOUS IO PORTS
With a complete array of I/O ports, it can connect all devices you need and connect many devices at the same time so you can multi-task with those devises to make you work more efficiently and of course you won’t need an adaptor or a dock.

Successful & Stylish B2B projects
Over the past years, MSI has successfully supported Countless of commercial projects, including government tenders, restaurant & hotel facilitation, shopping mall navigation projects, school & university developments and professional office projects.

Cubi 5 12M
Windows 11 Home
- MSI recommends Windows 11 Pro for business
Up to 12th Gen Intel® Core™ i7 Processors
Support up to 8K UHD Display
Support three displays that allow you to see more and do more
Thunderbolt 4 delivers the fastest, most versatile connection to any dock, display, or data device & NAS
Dual LAN: the best way to back up your file / secure data and prevent the hacker (with MSI exclusive BIOS)
Get all the performance benefits from USB 3.2 Gen 2 and enjoy the best data transmission experience
Experience 75% lower latency with WiFi 6E technology(optional)
FW TPM design secures your confidential data with encryption keys
Supports standard VESA-mount
Barebones versions are also available

Specifications

Processor
Processor generation	12th gen Intel® Core™ i5
Processor cache type	Smart Cache
Processor cache	12 MB
Processor frequency	3.3 GHz
Processor model	i5-1235U
Number of processors installed	1
Processor manufacturer	Intel
Processor boost frequency	4.4 GHz
Processor threads	12
Processor cores	10
Processor family	Intel® Core™ i5
Performance cores	2
Efficient cores	8
Processor base power	15 W
Maximum turbo power	55 W
Efficient-core Max Turbo Frequency	3.3 GHz
Performance-core Max Turbo Frequency	4.4 GHz
Memory
Maximum internal memory	64 GB
Storage
Number of storage drives supported	2
Optical drive type	No
SSD interface	M.2
Graphics
Discrete graphics card	No
On-board graphics card family	Intel Iris Xe Graphics
On-board graphics card	Yes
Discrete graphics card model	Not available
On-board graphics card model	Intel Iris Xe Graphics
On-board GPU manufacturer	Intel
Optical drive
Optical drive type	No
Network
Ethernet LAN	Yes
Wi-Fi	Yes
Wi-Fi standards	Wi-Fi 6E (802.11ax)
Top Wi-Fi standard	Wi-Fi 6E (802.11ax)
LAN controller	Realtek RTL8111H, Realtek RTL8125-BG, Realtek RTL8125-CG
Ports & interfaces
Combo headphone/mic port	Yes
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	4
HDMI version	2.0
HDMI ports quantity	1
Ethernet LAN (RJ-45) ports	2
DisplayPorts quantity	1
DC-in jack	Yes
DisplayPort version	1.4
USB Type-C DisplayPort Alternate Mode	Yes
Intel® Thunderbolt 4	Yes
Thunderbolt 4 ports quantity	1
Technical details
Number of 2.5" bays	1
Product type	Workstation
Trusted Platform Module (TPM)	Yes
Product colour	Black
Chassis type	Mini PC
Motherboard chipset	Intel SoC
Design
VESA mounting	Yes
Number of 2.5" bays	1
Product colour	Black
Chassis type	Mini PC
Performance
Market positioning	Business
Product type	Workstation
Trusted Platform Module (TPM)	Yes
Motherboard chipset	Intel SoC
Software
Operating system installed	Windows 11 Home
Processor special features
CPU configuration (max)	1
Power
Power supply	65 W
Ergonomics
VESA mounting	Yes
Weight & dimensions
Width	4.88" (124 mm)
Depth	4.88" (124 mm)
Height	2.09" (53 mm)
Weight	19.3 oz (548 g)
Packaging content
Display included	Yes
Other features
VESA mounting	Yes
Trusted Platform Module (TPM)	Yes
On-board graphics card	Yes
Processor manufacturer	Intel
