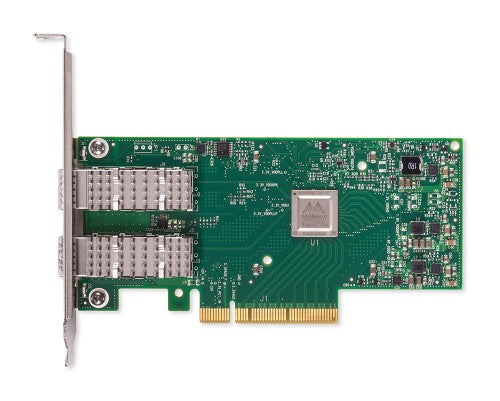

ConnectX-4 Lx EN network interface card, 25GbE dual-port SFP28, PCIe3.0 x8, tall bracket, ROHS R6
Description
1/10/25/40/50 Gigabit Ethernet Adapter Cards supporting RDMA, Overlay Networks Encapsulation/Decapsulation and moreConnectX-4 Lx EN Network Controller with 1/10/25/40/50Gb/s Ethernet connectivity addresses virtualized infrastructure challenges, delivering best-in-class and highest performance to various demanding markets and applications. Providing true hardware-based I/O isolation with unmatched
scalability and efficiency, achieving the most cost-effective and flexible solution for Web 2.0, Cloud, data analytics, database, and storage platforms.
Specifications
| Ports & interfaces |
|---|
| Internal |
Yes |
| PCI version |
3.0 |
| Fiber ports quantity |
2 |
| Fiber optic connector |
SFP28 |
| Interface |
Fiber |
| Host interface |
PCI Express |
| Connectivity technology |
Wired |
| Bandwidth |
|---|
| Data transfer rate |
25 GT/s |
| Network |
|---|
| Data transfer rate |
25 GT/s |
| Networking standards |
IEEE 802.1AX, IEEE 802.1Q, IEEE 802.1Qau, IEEE 802.1Qaz, IEEE 802.1Qbb, IEEE 802.1Qbg, IEEE 802.3ad, IEEE 802.3az |
| Design |
|---|
| Internal |
Yes |
| Software |
|---|
| Windows operating systems supported |
Yes |
| Other operating systems supported |
FreeBSD |
| System requirements |
|---|
| Windows operating systems supported |
Yes |
| Other operating systems supported |
FreeBSD |
| Weight & dimensions |
|---|
| Width |
5.59" (142 mm) |
| Height |
2.72" (69 mm) |
| Performance |
|---|
| Windows operating systems supported |
Yes |
| Other operating systems supported |
FreeBSD |
| Other features |
|---|
| Data transfer rate |
25 GT/s |
