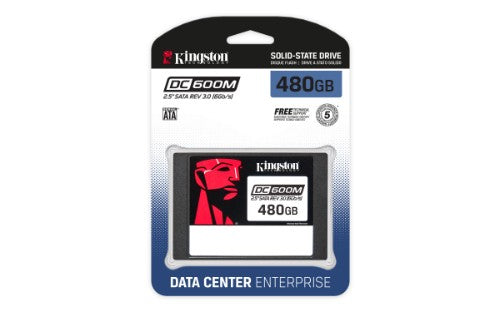

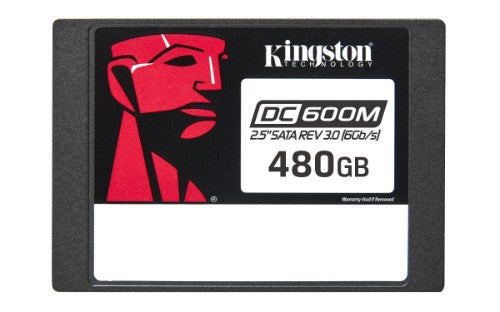

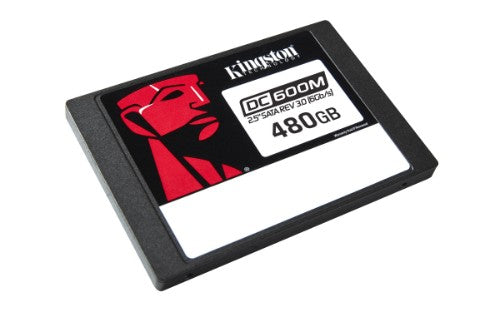

480G DC600M (Mixed-Use) 2.5” Enterprise SATA SSD
Key Features
- Designed for data center environments
- Hardware-based power loss protection
- Latency and IOPS consistency
- AES 256-bit encryption with DC600ME
- Capacities of up to 7.68TB*
Description
Kingston’s DC600M and DC600ME SSDs are fourth-generation data center SATA 3.0, 6Gbps SSDs utilising 3D TLC NAND intended for “mixed use” server workloads. Both are well suited for a wide variety of server applications and include on-board power loss protection via hold-up capacitors. DC600M and DC600ME are designed to protect data against unexpected power failure and to ensure the drive will successfully reinitialise on the next power-up of the system. Designed to deliver low latency and IO consistency for system integrators, hyperscale data centers and cloud service providers.
DC600ME features AES 256-bit encryption and supports TCG OPAL 2.0 security standards.
Capacities available from 480GB–7.68TB* to meet your data storage requirements.
Designed for data center environments Optimised to meet the high demands of server RAID applications with low latency and IO consistency as the key design criteria.
Hardware-based PLPPower loss capacitors to protect user data against unexpected power loss and enhance performance.
Delivers excellent quality of service (QoS)*Optimised performance predictability to meet
service-level agreements (SLAs).
AES 256-bit Encryption with DC600ME Protect sensitive data with support for AES 256-bit hardware-based encryption and TCG Opal 2.0 security standards with DC600ME.
Capacities up to 7.68TB Upgrade and manage storage with capacities up to 7.68TB.*
Specifications
| Hard drive |
|---|
| SSD capacity |
480 GB |
| Memory type |
3D TLC NAND |
| Data transmission |
|---|
| Read speed |
560 MB/s |
| Write speed |
470 MB/s |
| Random write (4KB) |
41000 IOPS |
| Random read (4KB) |
94000 IOPS |
| Write latency |
30 µs |
| Read latency |
200 µs |
| Data transfer rate |
6 Gbit/s |
| Endurance |
|---|
| Mean time between failures (MTBF) |
2000000 h |
| Features |
|---|
| Interface |
Serial ATA III |
| Component for |
Server/workstation |
| TBW rating |
876 |
| SSD capacity |
480 GB |
| Read speed |
560 MB/s |
| Write speed |
470 MB/s |
| Memory type |
3D TLC NAND |
| Random write (4KB) |
41000 IOPS |
| Random read (4KB) |
94000 IOPS |
| Mean time between failures (MTBF) |
2000000 h |
| Write latency |
30 µs |
| Read latency |
200 µs |
| Hardware encryption |
No |
| Data transfer rate |
6 Gbit/s |
| SSD form factor |
2.5" |
| H/W PLP function |
Yes |
| Target workload |
Mixed Use (MU) |
| Hot-Plug support |
Yes |
| Use conditions |
Server/Enterprise |
| Power |
|---|
| Power consumption (average) |
1.45 W |
| Power consumption (write) |
3.6 W |
| Power consumption (read) |
1.6 W |
| Power consumption (idle) |
1.3 W |
| Performance |
|---|
| Interface |
Serial ATA III |
| Component for |
Server/workstation |
| TBW rating |
876 |
| SSD capacity |
480 GB |
| Read speed |
560 MB/s |
| Write speed |
470 MB/s |
| Memory type |
3D TLC NAND |
| Random write (4KB) |
41000 IOPS |
| Random read (4KB) |
94000 IOPS |
| Mean time between failures (MTBF) |
2000000 h |
| Write latency |
30 µs |
| Read latency |
200 µs |
| Hardware encryption |
No |
| Data transfer rate |
6 Gbit/s |
| Design |
|---|
| Component for |
Server/workstation |
| SSD form factor |
2.5" |
| Weight & dimensions |
|---|
| Width |
2.75" (69.8 mm) |
| Weight |
2.33 oz (66 g) |
| Height |
0.276" (7 mm) |
| Depth |
3.94" (100.1 mm) |
| Package width |
5.1" (129.5 mm) |
| Package depth |
0.36" (9.14 mm) |
| Package height |
7.25" (184.2 mm) |
| Package weight |
3.11 oz (88.2 g) |
| Packaging data |
|---|
| Package width |
5.1" (129.5 mm) |
| Package depth |
0.36" (9.14 mm) |
| Package height |
7.25" (184.2 mm) |
| Package weight |
3.11 oz (88.2 g) |
| Master (outer) case width |
5.35" (135.9 mm) |
| Master (outer) case length |
8" (203.2 mm) |
| Master (outer) case height |
2.75" (69.8 mm) |
| Master (outer) case gross weight |
33.9 oz (960 g) |
| Products per master (outer) case |
10 pc(s) |
| Operational conditions |
|---|
| Operating temperature (T-T) |
0 - 70 °C |
| Storage temperature (T-T) |
-40 - 85 °C |
| Operating vibration |
2.17 G |
| Non-operating vibration |
20 G |
| Technical details |
|---|
| Interface |
Serial ATA III |
| Operating temperature (T-T) |
0 - 70 °C |
| Storage temperature (T-T) |
-40 - 85 °C |
| Operating vibration |
2.17 G |
| Non-operating vibration |
20 G |
| Hardware encryption |
No |
| Country of origin |
China, Taiwan |
| SSD form factor |
2.5" |
| Logistics data |
|---|
| Master (outer) case width |
5.35" (135.9 mm) |
| Master (outer) case length |
8" (203.2 mm) |
| Master (outer) case height |
2.75" (69.8 mm) |
| Master (outer) case gross weight |
33.9 oz (960 g) |
| Products per master (outer) case |
10 pc(s) |
| Country of origin |
China, Taiwan |
| Other features |
|---|
| Country of origin |
China, Taiwan |
