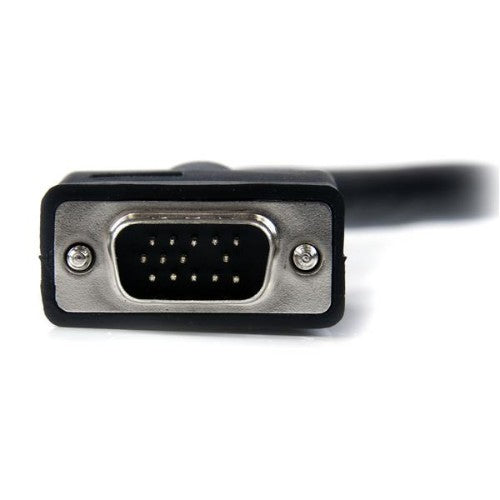

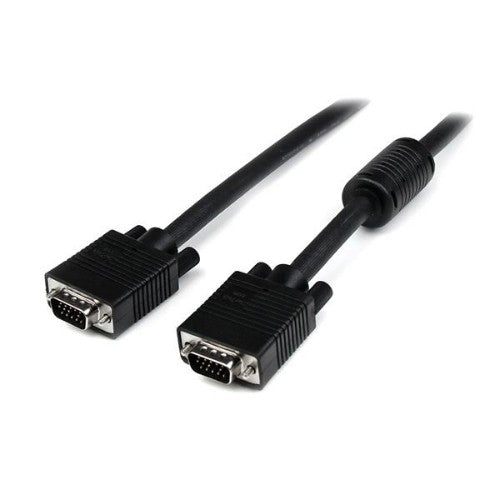

StarTech.com 6 ft Coax High Resolution Monitor VGA Video Cable - HD15 to HD15 M/M - 6ft HD15 to HD15 Cable
Description
Connect your VGA monitor with the highest quality connection available
The MXT101MMHQ High Resolution VGA Cable (6ft) is designed to provide the highest video quality possible through VGA, ideally suited for high resolution applications of 1920x1200 and above.
This durably constructed coaxial VGA video cable (HD15 to HD15) eliminates the picture "ghosting" and fuzzy images that are inherent to non-coaxial VGA cables, while delivering superior EMI interference protection by using ferrite cores near the connector ends.
The StarTech.com Advantage
- Supports high resolution VGA video (1920x1200 or above), suitable for a wide range of applications
- Ferrite cores help eliminate EMI interference
- Backed by StarTech.com Lifetime warranty
Specifications
| Features |
|---|
| Connector 1 form factor |
Straight |
| Connector 2 form factor |
Straight |
| Cable rating |
CMG (CM) |
| Number of conductors |
14 |
| Impedance |
75 Ω |
| Product colour |
Black |
| Cable length |
70.9" (1.8 m) |
| Connector 1 |
VGA (D-Sub) |
| Connector 2 |
VGA (D-Sub) |
| Connector 1 gender |
Male |
| Connector 2 gender |
Male |
| Connector contacts plating |
Nickel |
| AWG wire size |
28 |
| Maximum resolution |
1920 x 1200 pixels |
| Plug and Play |
Yes |
| Certification |
CE, REACH, UL2919 |
| Quantity per pack |
1 pc(s) |
| Operational conditions |
|---|
| Operating temperature (T-T) |
0 - 60 °C |
| Storage temperature (T-T) |
-20 - 80 °C |
| Operating relative humidity (H-H) |
0 - 80% |
| Certificates |
|---|
| Certification |
CE, REACH, UL2919 |
| Compliance certificates |
RoHS |
| Weight & dimensions |
|---|
| Weight |
9.56 oz (271 g) |
| Package width |
7.87" (200 mm) |
| Package depth |
8.66" (220 mm) |
| Package height |
0.787" (20 mm) |
| Package weight |
9.88 oz (280 g) |
| Packaging data |
|---|
| Package width |
7.87" (200 mm) |
| Package depth |
8.66" (220 mm) |
| Package height |
0.787" (20 mm) |
| Package weight |
9.88 oz (280 g) |
| Quantity per pack |
1 pc(s) |
| Packaging content |
|---|
| Quantity per pack |
1 pc(s) |
| Technical details |
|---|
| Compliance certificates |
RoHS |
