mATX/Mini ITX, Tempered glass/Solid steel, 2x USB 3.0, Audio, RGB controller
Key Features
- Accommodates mATX / Mini ITX Motherboards

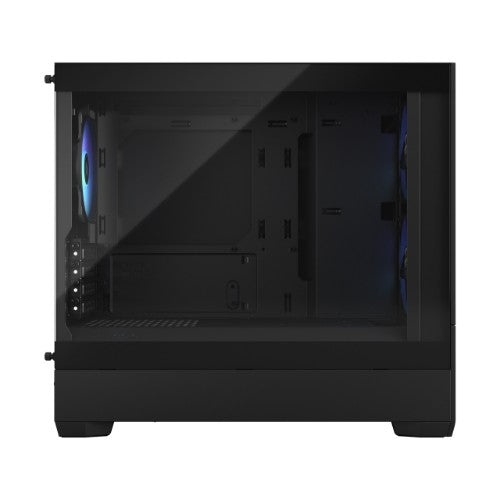

- Easily mounted tempered glass side panel lets you showcase your components
- Up to two HDDs and six SSDs (or one HDD and five SSDs with one optical bay in use)
Description

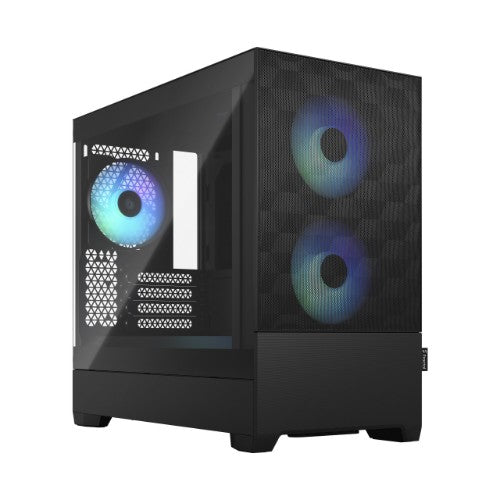

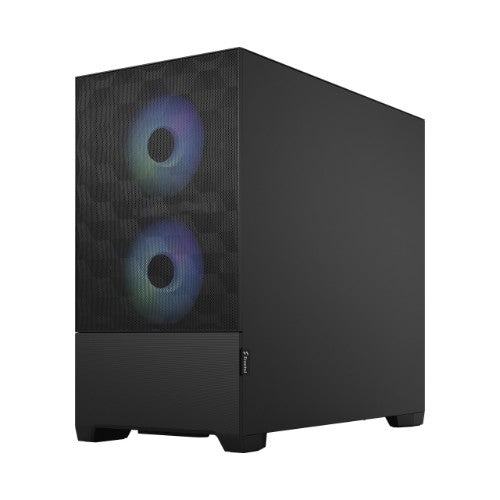

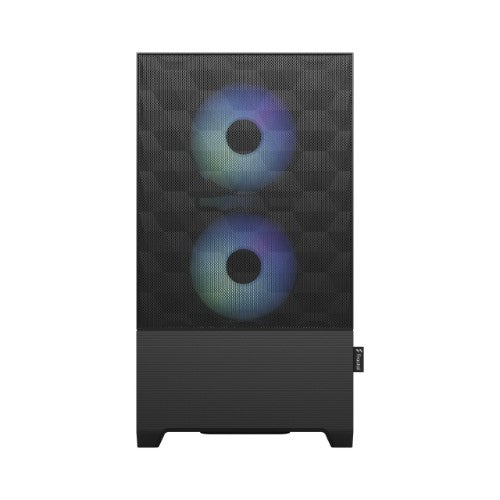

A case of attitude- Unique, honeycomb patterned mesh front creates a striking visual effect
- The easy-to-clean front mesh acts as a dust filter while allowing high airflow
A hidden compartmentTwo neatly concealed 5.25” bays with storage drawer and magnetic cover
Flexible storage support- Two ultra-versatile storage trays each support a 3.5” and a 2.5” drive simultaneously. A dedicated SSD bracket for 2x 2.5” is also included

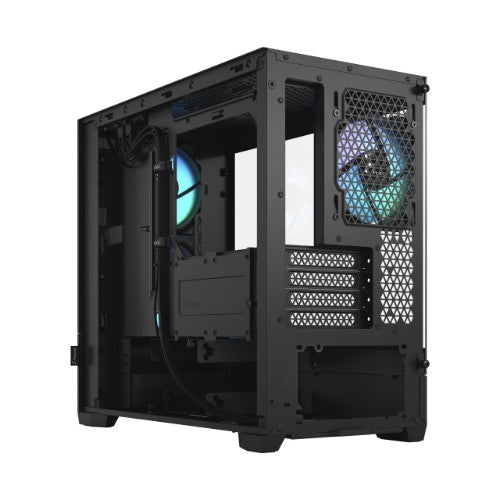

- Easy cable management with multiple tie-down points, pre-mounted cable ties and convenient extra-large pass-through holes

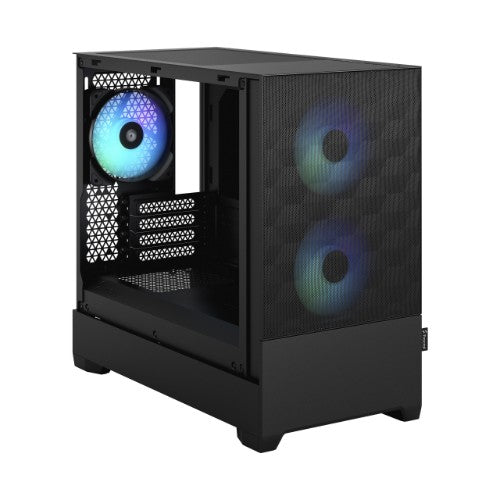

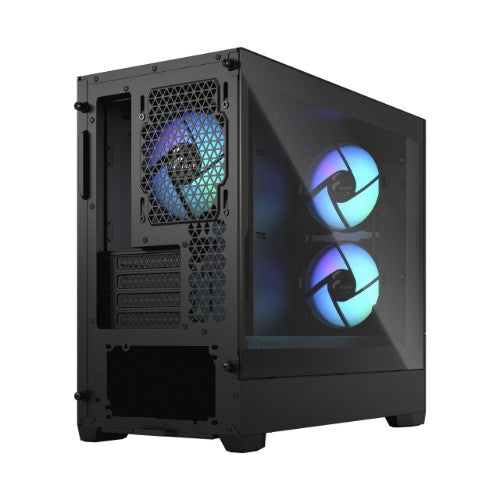

Aspect RGB FansComes with three 120 mm Aspect 12 RGB fans pre-installed, featuring Trip Wire technology and rifle bearings for enhanced blade efficiency and reliable cooling performance
Specifications
| Technical details |
|---|
| Number of 5.25" bays |
2 |
| Number of 3.5" bays |
2 |
| Number of 2.5" bays |
4 |
| Supported motherboard form factors |
micro ATX, Mini-ITX |
| Supported HDD sizes |
2.5,3.5" |
| Side window |
Yes |
| Product colour |
Black |
| Number of expansion slots |
4 |
| Maximum CPU cooler height |
6.69" (17 cm) |
| Maximum graphics card length |
14.4" (36.5 cm) |
| Maximum PSU length |
5.91" (15 cm) |
| Type |
PC |
| Form factor |
Mini Tower |
| Harmonized System (HS) code |
84733080 |
| Material |
|---|
| Material |
Steel, Tempered glass |
| Indication |
|---|
| Illumination location |
Case fans |
| Illumination colour |
Multi |
| Illumination |
Yes |
| Ergonomics |
|---|
| Cable management |
Yes |
| On/off button |
Yes |
| Design |
|---|
| Anti-dust filter |
Yes |
| Material |
Steel, Tempered glass |
| Number of 5.25" bays |
2 |
| Number of 3.5" bays |
2 |
| Number of 2.5" bays |
4 |
| Supported motherboard form factors |
micro ATX, Mini-ITX |
| Side window |
Yes |
| Illumination location |
Case fans |
| Illumination colour |
Multi |
| Illumination |
Yes |
| Cable management |
Yes |
| Product colour |
Black |
| Number of expansion slots |
4 |
| Maximum CPU cooler height |
6.69" (17 cm) |
| Maximum graphics card length |
14.4" (36.5 cm) |
| Maximum PSU length |
5.91" (15 cm) |
| Type |
PC |
| Form factor |
Mini Tower |
| On/off button |
Yes |
| Tempered glass panel(s) |
Yes |
| RGB control button |
Yes |
| Power supply |
|---|
| Supported power supply form factors |
ATX |
| Power supply included |
No |
| Ports & interfaces |
|---|
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity |
0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity |
0 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity |
2 |
| Audio input |
Yes |
| Audio output |
Yes |
| USB 2.0 ports quantity |
0 |
| Cooling |
|---|
| Front radiator sizes supported |
240 mm |
| Rear radiator sizes supported |
120 mm |
| Top radiator sizes supported |
240 mm |
| Front fans installed |
2x 120 mm |
| Number of front fans supported (max) |
2 |
| Front fans diameters supported |
120,140 mm |
| Rear fans installed |
1x 120 mm |
| Number of rear fans supported (max) |
1 |
| Rear fans diameters supported |
120 mm |
| Number of top fans supported (max) |
2 |
| Top fans diameters supported |
120,140 mm |
| Storage |
|---|
| Supported HDD sizes |
2.5,3.5" |
| SSD form factor |
2.5" |
| Weight & dimensions |
|---|
| Width |
8.46" (215 mm) |
| Depth |
17" (432 mm) |
| Height |
15.5" (393 mm) |
| Weight |
13.1 lbs (5.96 kg) |
| Packaging data |
|---|
| Package width |
11.5" (293 mm) |
| Package height |
18.5" (470 mm) |
| Package depth |
20.2" (514 mm) |
| Package weight |
16 lbs (7.24 kg) |
| Logistics data |
|---|
| Harmonized System (HS) code |
84733080 |
| Other features |
|---|
| Harmonized System (HS) code |
84733080 |
